CS-DD30-1319-D

Carli Dominator 3.0 Leveling, Base, 3.25” Lift, 2013-22 Ram 3500, Diesel

Product Details

Carli Dominator: The ultimate no compromise, utilitarian suspension system. Carli King 3.0” shocks, custom-tuned and ready for any obstacles. This system can handle the toughest of terrain while still getting you around town in comfort.

The Carli Dominator system utilizes Carli-tuned King 3.0 shocks that provide fantastic on-road ride and superior off road performance

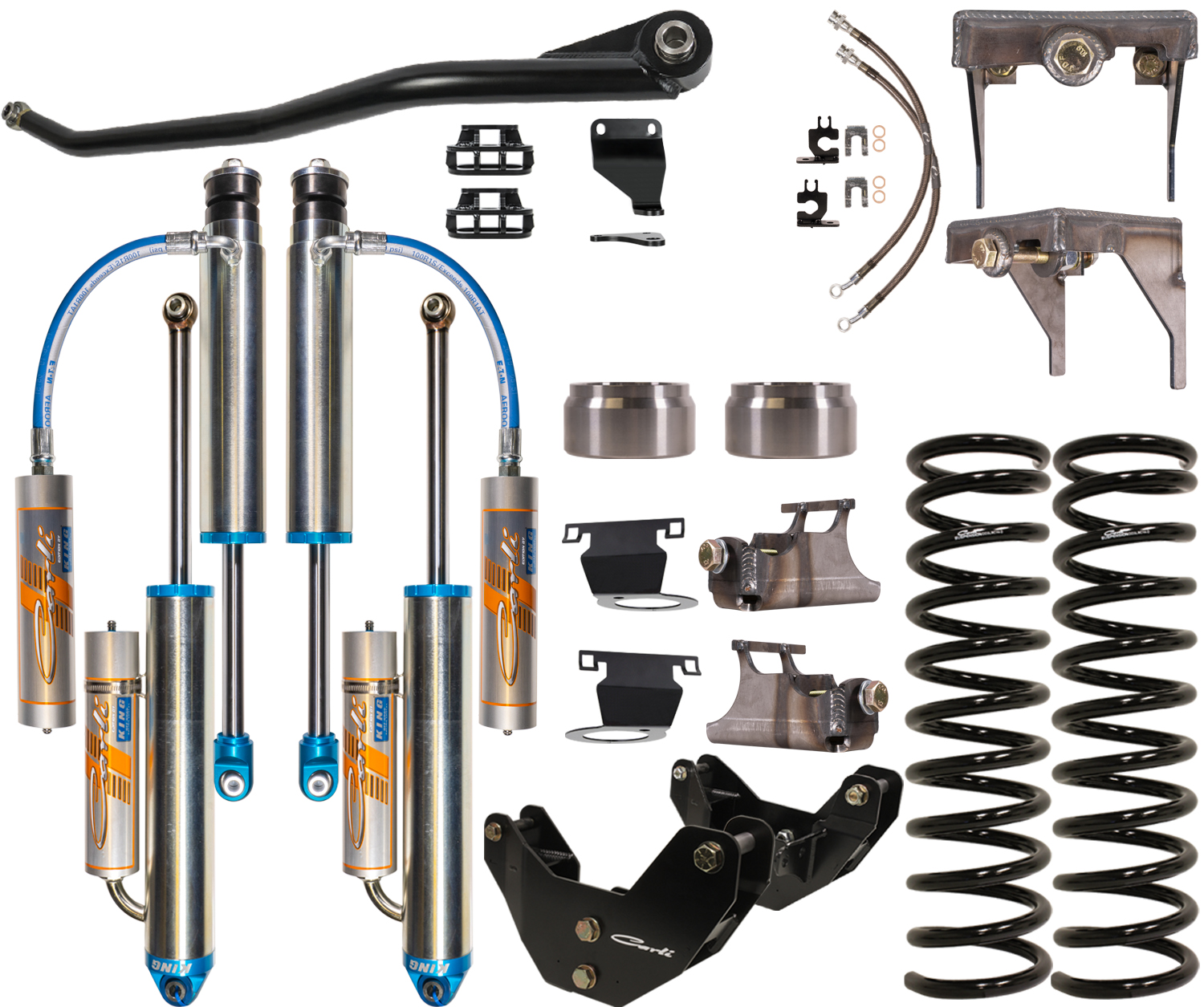

System includes multi rate front coils, front and rear shock package, shock mounts, brake lines, coil isolator supports, radius arm drop brackets, adjustable track bar, front bump stop drops.
This system requires weld-in installation of coil isolators, front lower and rear upper shock mounts.
Allows for 8.5" of front suspension travel and 13" rear.
Requires but does not include rear lift option and sway bar option.

Technical Notes

Required and Optional Parts to support this system:
Sway Bar Options (REQUIRED): CS-DTSB3-1419 or CS-DSBD-14
Leaf Spring Options (REQUIRED): CS-DPAP-03-D or CS-DFSP-13-D

Warranty Information

Warranty information unavailable

Compatible Make / Model

Ram 3500 (2013-2023)

Specification

Brand	Carli Suspension
Prop65 Warning	WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Technical Notes	Required and Optional Parts to support this system: Sway Bar Options (REQUIRED): CS-DTSB3-1419 or CS-DSBD-14 Leaf Spring Options (REQUIRED): CS-DPAP-03-D or CS-DFSP-13-D
UPC	883584149248
ProxyNumber	14924
Width	13.00 in
Length	12.00 in
Depth	37.00 in
Weight	224.0000 lb
