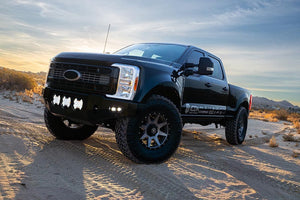

NEW from ICON: Radius Arm Suspension Systems for 2023-Up Ford Super Duty Trucks
ICON Vehicle Dynamics is proud to introduce our upgraded front radius arms for 2023 and newer Ford Super Duty 4WD trucks. These rugged, precision-fabricated arms allow improved articulation, castor correction for 2 to 6" lifts, and increased clearance for larger tires. In addition to the upgraded Radius Arm System we are also introducing updated dual-rate front coil springs as well as coilover conversion kits to take advantage of the wider range of lift heights enabled by the use of these arms. Lastly, we have revised our entire lineup of pre-configured Complete Suspension System "Stage" Kits to take advantage of these new products and bundle them with proven components to meet any level of budget or performance expectations! RADIUS ARM SYSTEM 64043 23-25 FSD 2-5.5" LIFT RADIUS ARM SYSTEM The ICON Vehicle Dynamics Ford 2023-2025 F-250 and F-350 Super Duty 4WD Radius Arm System is designed with adjustable caster cams, allowing fine-tuning of caster angle for optimum drivability. Their added caster allows for use with 2-6” of front lift over stock with the radius arm installed in the factory pivot, eliminating the need for caster bushings or radius arm drop brackets. They feature a sealed pivot bushing that minimizes road feedback and ensures a long life and quiet operation. Additionally, their fabricated, fully boxed design ensures strength and utilizes a profile optimized for tire clearance at full steering lock, making a 37” tall tire clear without coming in contact with the radius arm. For trucks equipped with OnBoard Scales ICON also offers sensor linkage brackets for specific height ranges that allow attachment of the OE sensor linkages to the ICON radius arm, ensuring proper function of that system. KEY FEATURES: Fully boxed design Built in caster adjustment for optimized return to center Ample caster range for 2-6" of front lift over stock Replaceable sealed pivot bushing provides maintenance-free operation CNC-machined and laser-cut steel components Semi-gloss black powder coat finish Ability to have a 5.5” backspace wheel with 37” tires without contact with the arm at steering lock COMPLETE "STAGE" SUSPENSION SYSTEMS ICON has overhauled our full line of Complete Suspension System "Stage" Kits for 2023-25 Ford Super Duty to enable easy, hassle-free suspension system configuring and ordering, with systems to fit any budget or performance expectations. There are four distinct groups of stages, based on two different front spring types and two different lift height ranges: 2.5" Lift with Dual Rate Front Coil Springs 2.5 - 3.0" Lift with Front Coilover Conversion 4.5" Lift with Dual Rate Front Coil Springs 4 - 5.5" Lift with Front Coilover Conversion Please see below for summary information for each of these Suspension Systems, and refer to the downloadable Price & Spec Sheet for complete product and kit information with part numbers. 2.5" LIFT COIL SPRING SUSPENSION SYSTEMS These ICON Vehicle Dynamics 2.5” Lift Coil Springs Suspension Systems are a great way to lift your 4WD 2023-2025 Ford F-250/F-350 Super Duty while drastically improving ride quality and performance. All systems include ICON's newly updated Fabricated Radius Arms for optimized suspension geometry and tire clearance. Each of these complete systems also feature ICON's Dual Rate Coil springs, optimized for trucks equipped with either diesel or gas engines. Every Stage is available with or without ICON's Rear Leaf Spring Expansion Pack. STAGE 1 The Stage 1 system is perfect for on-road and light duty off-road use including towing, job site duty and general off-road adventure. ICON's Stage 1 System includes are Fabricated Radius Arms, Dual Rate front Coil Springs and ICON 2.0 Aluminum Series front and rear internal reservoir shocks. Kit shown below without the Leaf Spring Expansion Pack. K65890R 23-25 FORD F250/F350 DIESEL 2.5" STAGE 1 SUSPENSION SYSTEM W/ RADIUS ARMSK65890RL 23-25 FORD F250/F350 DIESEL 2.5" STAGE 1 SUSP SYS W/ RADIUS ARMS/EXPANSION PACK K65895R 23-25 FORD F250/F350 GAS 2.5" STAGE 1 SUSPENSION SYSTEM W/ RADIUS ARMSK65895RL 23-25 FORD F250/F350 GAS 2.5" STAGE 1 SUSP SYS RADIUS ARMS/EXPANSION PACK STAGE 2 Stage 2 ups the ante with ICON's proven 2.5 VS shock absorbers front and rear, with piggyback reservoirs for superior fluid cooling and suspension performance. Kit shown below with the Leaf Spring Expansion Pack. K65891R 23-25 FORD F250/F350 DIESEL 2.5" STAGE 2 SUSPENSION SYSTEM W/ RADIUS ARMSK65891RL 23-25 FORD F250/F350 DIESEL 2.5" STAGE 2 SUSP SYS RADIUS ARMS/EXPANSION PACK K65896R 23-25 FORD F250/F350 GAS 2.5" STAGE 2 SUSPENSION SYSTEM W/ RADIUS ARMSK65896RL 23-25 FORD F250/F350 GAS 2.5" STAGE 2 SUSP SYS RADIUS ARMS/EXPANSION PACK STAGE 3 The Stage 3 system builds on Stage 2 by adding ICON's Adjustable Front Track Bar to dial in front suspension geometry with easy, on-vehicle adjustment. Kit shown below without the Leaf Spring Expansion Pack. K65892R 23-25 FORD F250/F350 DIESEL 2.5" STAGE 3 SUSPENSION SYSTEM W/ RADIUS ARMSK65892RL 23-25 FORD F250/F350 DIESEL 2.5" STAGE 3 SUSPENSION SYS RADIUS ARMS/EXPANSION PACK K65897R 23-25 FORD F250/F350 GAS 2.5" STAGE 3 SUSPENSION SYSTEM W/ RADIUS ARMSK65897RL 23-25 FORD F250/F350 GAS 2.5" STAGE 3 SUSP SYS RADIUS ARMS/EXPANSION PACK STAGE 4 Stage 4 includes ICON's CDCV Technology, providing manually adjustable, fine-tuning of compression damping performance on each shock. Kit shown below with the Leaf Spring Expansion Pack. K65893R 23-25 FORD F250/F350 DIESEL 2.5" STAGE 4 SUSPENSION SYSTEM W/ RADIUS ARMS K65893RL 23-25 FORD F250/F350 DIESEL 2.5" STAGE 4 SUSP SYS RADIUS ARMS/EXPANSION PACK K65898R 23-25 FORD F250/F350 GAS 2.5" STAGE 4 SUSPENSION SYSTEM W/ RADIUS ARMSK65898RL 23-25 FORD F250/F350 GAS 2.5" STAGE 4 SUSP SYS RADIUS ARMS/EXPANSION PACK STAGE 5 Further refine your Super Duty's driveability with the Stage 5 system, which features CDCV and adds ICON's 2.0 Dual Opposing Steering Stabilizer kit. Kit shown below without the Leaf Spring Expansion Pack. K65894R 23-25 FORD F250/F350 DIESEL 2.5" STAGE 5 SUSPENSION SYSTEM W/ RADIUS ARMSK65894RL 23-25 FORD F250/F350 DIESEL 2.5" STAGE 5 SUSP SYS W/ RADIUS ARMS/EXPANSION PACKS K65899R 23-25 FORD F250/F350 GAS 2.5" STAGE 5 SUSPENSION SYSTEM W/ RADIUS ARMSK65899RL 23-25 FORD F250/F350 GAS 2.5" STAGE 5 SUSP SYS RADIUS ARMS/EXPANSION PACKS STAGE 6 WITH RADIUS ARMS ICON's top of the line Suspension System for Ford Super Dusty, Stage 6 steps up to the convenience and performance of fully electronic, on-the-fly-adjustable, automatically reacting CDEV Technology. Focus on driving and let ICON Intelligent Control (IIC) read the terrain and make near-instant adjustments via the Compression Damping Electronic Valve (CDEV) at each individual shock. Control the system wirelessly through the IIC app on your phone and once configured the system functions without driver input. In addition, the steering stabilizer is upgraded to ICON's 2.5 Centerline Steering Stabilizer. Kit shown below with the Leaf Spring Expansion Pack. K65918R 23-25 FORD F250/F350 DIESEL 2.5" STAGE 6 SUSPENSION SYSTEM W/ RADIUS ARMK65918RL 23-25 FORD F250/F350 DIESEL 2.5" STAGE 6 SUSP SYS W/ RADIUS ARM/EXPANSION PACK K65919R 23-25 FORD F250/F350 GAS 2.5" STAGE 6 SUSPENSION SYSTEM W/ RADIUS ARMK65919RL 23-25 FORD F250/F350 GAS 2.5" STAGE 6 SUSPENSION SYSTEM W/ RADIUS ARM/EXPANSION PACK STAGE 6 WITH 4-LINK Stage 6 is also available with the ICON Vehicle Dynamics Ford Super Duty 4-Link kit further improving performance by eliminating suspension bind commonly experienced with factory radius arms during articulation and allows on-vehicle caster angle adjustment. This “freeing up” of the front end and the ability of the 4-Link Kit to maintain positive caster through the range of travel equates to an unparalleled ride quality in all conditions. Kit shown below with the Leaf Spring Expansion Pack. K65918 23-25 FORD F250/F350 DIESEL 2.5" STAGE 6 SUSPENSION SYSTEM W/ 4-LINKK65918L 23-25 FORD F250/F350 DIESEL 2.5" STAGE 6 SUSPENSION SYSTEM W/ 4-LINK/EXPANSION PACK K65919 23-25 FORD F250/F350 GAS 2.5" STAGE 6 SUSPENSION SYSTEM W/ 4-LINKK65919L 23-25 FORD F250/F350 GAS 2.5" STAGE 6 SUSPENSION SYSTEM W/ 4-LINK/EXPANSION PACK 2.5-3.0" LIFT COILOVER SUSPENSION SYSTEMS Step up to the performance of ICON 2.5 VS Coilovers with these 2.5-3.0" lift Lift Coilover Conversion Suspension Systems for 4WD 2023-2025 Ford F-250/F-350 Super Duty. At the heart of each system are ICON's proven VS Series 2.5" body front coilovers to replace the factory front shocks and coil springs. All systems include ICON's newly updated Fabricated Radius Arms for optimized suspension geometry and tire clearance. Together, the ICON Coilovers and Radius Arms provide optimal suspension performance, steering geometry, 2.5 to 3 inches of lift height to clear larger tires, and superior ride both on- and off-road. Every Stage is available with or without ICON's Rear Leaf Spring Expansion Pack. STAGE 1 The Stage 1 system includes ICON's 2.5 VS Front Coilover Conversion and Fabricated Radius Arms, along with ICON 2.0 Aluminum Series rear internal reservoir shocks. Kit shown below without the Leaf Spring Expansion Pack. K63201R 23-25 FORD F250/F350 2.5-3" STAGE 1 COILOVER CONVERSION SYSTEM W/ RADIUS ARMSK63201RL 23-25 FORD F250/F350 2.5-3" STAGE 1 CO CNV SYSTEM W/ RADIUS ARMS/EXPANSION PACK STAGE 2 Stage 2 adds ICON's proven 2.5 VS internal reservoir rear shock absorbers as well as ICON's Adjustable Front Track Bar to dial in front suspension geometry with easy, on-vehicle adjustment. Kit shown below with the Leaf Spring Expansion Pack. K63202R 23-25 FORD F250/F350 2.5-3" STAGE 2 COILOVER CONVERSION SYSTEM W/ RADIUS ARMSK63202RL 23-25 FORD F250/F350 2.5-3" STAGE 2 CO CNV SYSTEM W/ RADIUS ARMS/EXPANSION PACK STAGE 3 Stage 3 ups the ante by adding rear 2.5 VS Shock Absorbers with piggyback reservoirs for superior fluid cooling and suspension performance. Kit shown below without the Leaf Spring Expansion Pack. K63203R 23-25 FORD F250/F350 2.5-3" STAGE 3 COILOVER CONVERSION SYSTEM W/ RADIUS ARMSK63203RL 23-25 FORD F250/F350 2.5-3" STAGE 3 CO CNV SYSTEM W/ RADIUS ARMS/EXPANSION PACK STAGE 4 Further refine your Super Duty's drivability with the Stage 4 system, which features ICON's CDCV Technology, providing manually adjustable, fine-tuning of compression damping performance on each shock, along with ICON's 2.0 Dual Opposing Steering Stabilizer kit. Kit shown below with the Leaf Spring Expansion Pack. K63204R 23-25 FORD F250/F350 2.5-3" STAGE 4 COILOVER CONVERSION SYSTEM W/ RADIUS ARMSK63204RL 23-25 FORD F250/F350 2.5-3" STAGE 4 C/O CONV SYS W/ RADIUS ARMS/EXPANSION PACKS STAGE 5 Stage 5 doubles front end damping capacity by adding a secondary pair of ICON 2.5 VS CDCV shocks, in addition to the front Coilovers, providing long-lasting, hard-use suspension performance through the toughest terrain. Kit shown below without the Leaf Spring Expansion Pack. K63205R 23-25 FORD F250/F350 2.5-3" STAGE 5 COILOVER CONVERSION SYSTEM W/ RADIUS ARMSK63205RL 23-25 FORD F250/F350 2.5-3" STAGE 5 C/O CONV SYS W/ RADIUS ARMS/EXPANSION PACKS STAGE 6 Stage 6 steps up to the convenience and performance of fully electronic, on-the-fly-adjustable, automatically reacting CDEV Technology. Focus on driving and let ICON Intelligent Control (IIC) read the terrain and make near-instant adjustments via the Compression Damping Electronic Valve (CDEV) at each individual shock. Control the system wirelessly through the IIC app on your phone and once configured the system functions without driver input. In addition, the steering stabilizer is upgraded to ICON's 2.5 Centerline Steering Stabilizer. Stage 6 also lets you opt for ICON's Ford Super Duty 4-Link kit to further improve performance by eliminating suspension bind commonly experienced with factory radius arms during articulation and allows on-vehicle caster angle adjustment. This “freeing up” of the front end and the ability of the 4-Link Kit to maintain positive caster through the range of travel equates to an unparalleled ride quality in all conditions. Kit shown below with the Radius Arms and Leaf Spring Expansion Pack. K63206R 23-25 FORD F250/F350 2.5-3" STAGE 6 COILOVER CONVERSION SYSTEM W/ RADIUS ARMSK63206RL 23-25 FORD F250/F350 2.5-3" STAGE 6 C/O CONV SYS W/ RADIUS ARMS/EXPANSION PACKSK63206 23-25 FORD F250/F350 2.5-3" STAGE 6 COILOVER CONVERSION SYSTEM W/ 4-L
