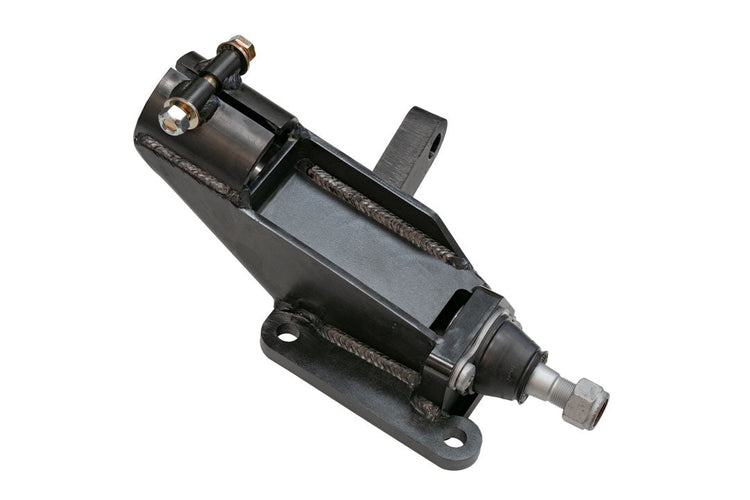

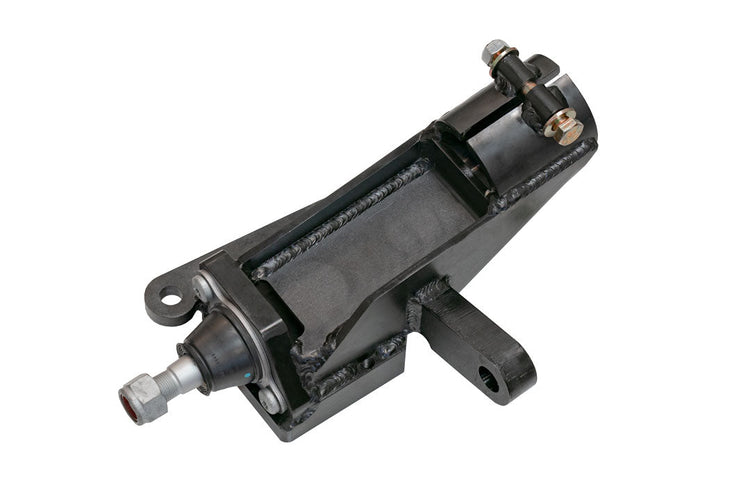

Van Compass Front 2" Lift Spindle, Ford Transit (Rwd Single Wheel Only)
- Van Compass
- SKU:1046
$1,664.95
Low stock: 1 left
Recommended add-ons
Van Compass Front 2" Lift Spindle, Ford Transit (Rwd Single Wheel Only)
$1,664.95
- Get It Fast with Same-day Dispatch
- Free Shipping over $199
- All Reman Parts Ship for $299
1-2 day delivery for most. Expedited shipping options available at checkout.
Have questions? We’re here to help.
Call us at 1-800-347-1188 or chat with our tech support.
Product details
Get the most clearance possible from your Transit RWD with our Front 2" Lift Spindle!
Lift spindles are a long-time staple of the desert racing world, adding front clearance where it matters most: underneath the front control arms, cross members and frame. The added clearance allows easier fitment of larger tires, further increasing ground clearance and upping the capability of your 2WD van. Track width is increased modestly (1/2" per side, 1" total) for increased stability and a better scrub radius with larger tires.
When properly engineered, there are no down sides. Our spindle was carefully designed to preserve the complex geometry of the front end without altering tie rod angle or placement, maintaining camber, caster and Ackerman angles within their correct specifications. Precision cut and machined parts key together to ensure solid construction. Motorcraft ball joints come pre-installed to simplify the installation process and ensure years of trouble free service. A complete hardware kit is included, and the spindles are plated with zinc oxide for corrosion resistance.
Designed to work both as a standalone product to lift the front for a leveled stance on a light van, or combined with our Topo 2" front lift kit, for 4" of total lift in the front. A 4" lifted front will clear a 285/70R17, a versatile size tire great for off-highway use and on.
Lift spindles are a long-time staple of the desert racing world, adding front clearance where it matters most: underneath the front control arms, cross members and frame. The added clearance allows easier fitment of larger tires, further increasing ground clearance and upping the capability of your 2WD van. Track width is increased modestly (1/2" per side, 1" total) for increased stability and a better scrub radius with larger tires.
When properly engineered, there are no down sides. Our spindle was carefully designed to preserve the complex geometry of the front end without altering tie rod angle or placement, maintaining camber, caster and Ackerman angles within their correct specifications. Precision cut and machined parts key together to ensure solid construction. Motorcraft ball joints come pre-installed to simplify the installation process and ensure years of trouble free service. A complete hardware kit is included, and the spindles are plated with zinc oxide for corrosion resistance.
Designed to work both as a standalone product to lift the front for a leveled stance on a light van, or combined with our Topo 2" front lift kit, for 4" of total lift in the front. A 4" lifted front will clear a 285/70R17, a versatile size tire great for off-highway use and on.
- Track width is increased modestly (1/2" per side, 1" total) for increased stability and a better scrub radius with larger tires
- Precision cut and machined parts key together to ensure solid construction
- Trimming of the pinch seam is required

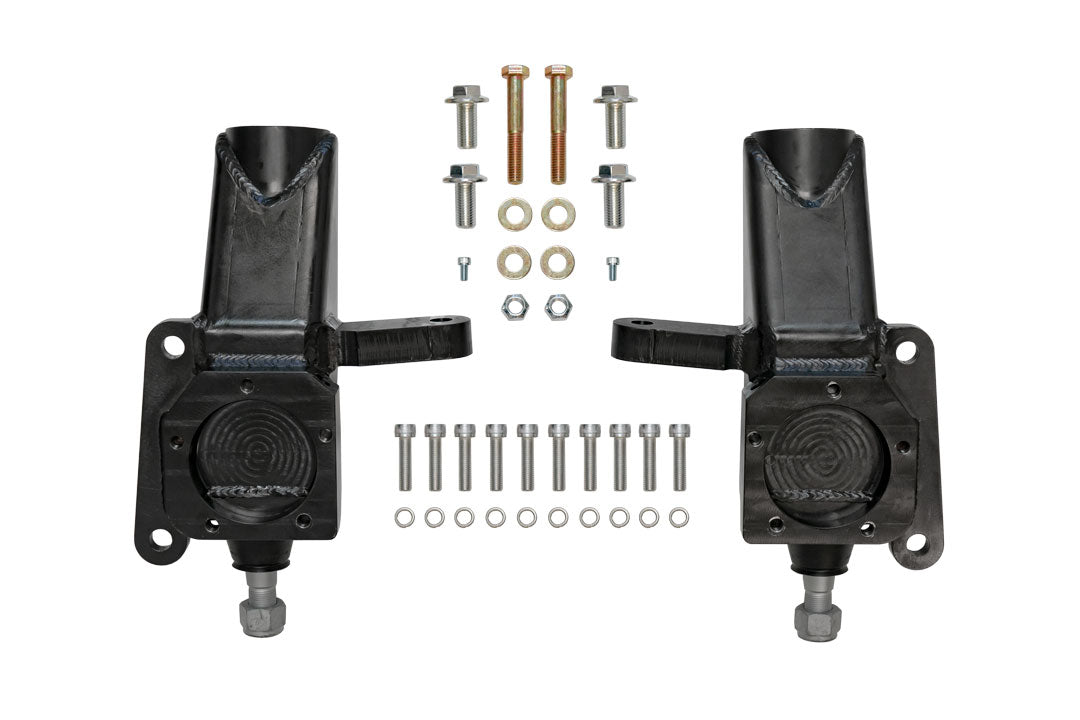

- A complete hardware kit is included, and the spindles are plated with zinc oxide for corrosion resistance
- The added clearance allows easier fitment of larger tires, further increasing ground clearance and upping the capability of your 2wd van
- Motorcraft ball joints come pre-installed to simplify the installation process and ensure years of trouble free service
- Our spindle was carefully designed to preserve the complex geometry of the front end without altering tie rod angle or placement, maintaining camber, caster and Ackerman angles within their correct specifications
- When properly engineered, there are no down sides
- \We recommend a 17" x 8" wheel with 45mm offset
- A 4" lifted front will clear a 285/70R17*, a versatile size tire great for off-highway use and on
- Designed to work both as a standalone product to lift the front for a leveled stance on a light van, or combined with our Topo 2" front lift kit, for 4" of total lift in the front
CA Residents:
Prop 65 Warning
WARNING
This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Specifications
| Brand | Van Compass |
| UPC | 810185262366 |
| Shipping Width | 17.00 in |
| Shipping Length | 9.00 in |
| Shipping Depth | 21.00 in |
| Shipping Weight | 51.0000 LB |
Technical Notes
- NOTE: We recommend a 17" x 8" wheel with 45mm offset. Trimming of the pinch seam is required.
