Cognito 3-Inch Standard SM Series Leveling Kit for 2020-2025 Silverado/Sierra 2500/3500 2WD/4WD
- Cognito Motorsports Truck
- SKU:110-P1307
$1,099.95
Low stock: 2 left
Recommended add-ons
Cognito 3-Inch Standard SM Series Leveling Kit for 2020-2025 Silverado/Sierra 2500/3500 2WD/4WD
$1,099.95
- Get It Fast with Same-day Dispatch
- Free Shipping over $199
- All Reman Parts Ship for $299
1-2 day delivery for most. Expedited shipping options available at checkout.
Have questions? We’re here to help.
Call us at 1-800-347-1188 or chat with our tech support.
Product details
Cognito 3-Inch Standard SM Series Leveling Kit for 2020-2025 Silverado/Sierra 2500/3500 2WD/4WD
Cognito leveling kits have ride quality in mind. In order to level your truck, droop travel must be maintained, and Cognito does that by adding droop travel that can then be converted into ride height. This ensures a minimum 3" droop travel is available to provide the best ride quality possible, leaving the rest of the ride quality result up to your choice of tires and shocks.
This particular package re-uses the OEM shocks by adding spacers for the front shocks in order to provide the optimal droop stop point. Cognito SM series upper control arms are included in order to provide a corrected angle ball joint to handle the added droop. Torsion bar keys are included to provide the opportunity to set the ride height properly, and a 1" block and u-bolt kit is also included for those who have added weight permanently in the bed such as tool box and/or fuel tank and need to get the ride height back up to where it was stock.
Not included in this package, but very highly recommended, is the pitman and idler arm support kit which will prevent premature wear of pitman and idler arms that arises from increased tie rod angles that is an inherent result when adding a leveling kit to an IFS truck with pitman and idler arm type steering system.
Cognito leveling kits have ride quality in mind. In order to level your truck, droop travel must be maintained, and Cognito does that by adding droop travel that can then be converted into ride height. This ensures a minimum 3" droop travel is available to provide the best ride quality possible, leaving the rest of the ride quality result up to your choice of tires and shocks.
This particular package re-uses the OEM shocks by adding spacers for the front shocks in order to provide the optimal droop stop point. Cognito SM series upper control arms are included in order to provide a corrected angle ball joint to handle the added droop. Torsion bar keys are included to provide the opportunity to set the ride height properly, and a 1" block and u-bolt kit is also included for those who have added weight permanently in the bed such as tool box and/or fuel tank and need to get the ride height back up to where it was stock.
Not included in this package, but very highly recommended, is the pitman and idler arm support kit which will prevent premature wear of pitman and idler arms that arises from increased tie rod angles that is an inherent result when adding a leveling kit to an IFS truck with pitman and idler arm type steering system.

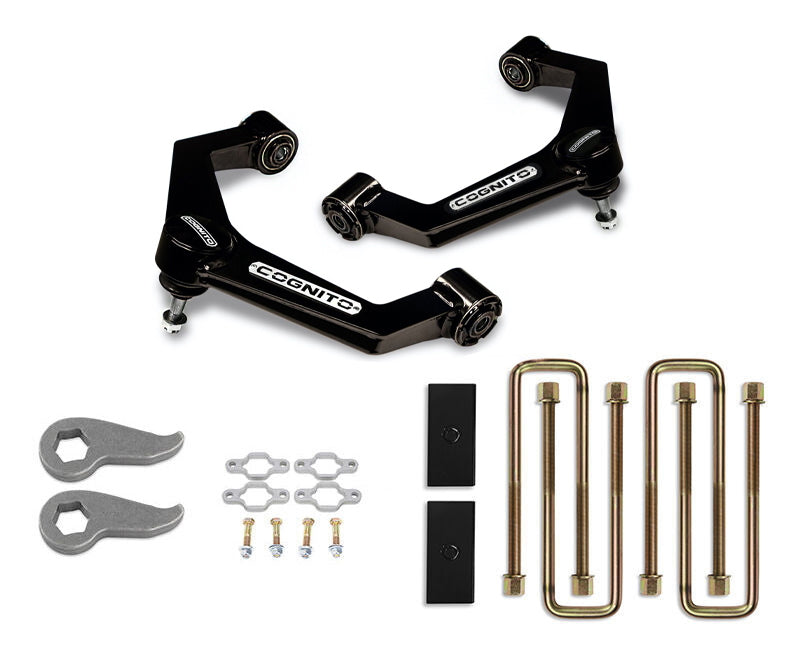

- Yields 3 inches of front lift
- Cognito SM Series Upper Control Arm Kit
- Torsion Bar Adjuster Key Kit
- Front shock spacer kit
- Cognito Block and U-Bolt Kit yields 1-inch of rear lift
- Improves vehicle appearance and reduces nose-down rake
- Improved ball joint angle
- Maintains adequate droop travel to retain ride quality
- 4 hour DIY install time
CA Residents:
Prop 65 Warning
WARNING
This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Specifications
| Brand | Cognito Motorsports Truck |
| UPC | 840461358056 |
| Shipping Width | 25.00 in |
| Shipping Length | 31.00 in |
| Shipping Depth | 16.00 in |
| Shipping Weight | 79.0000 LB |
