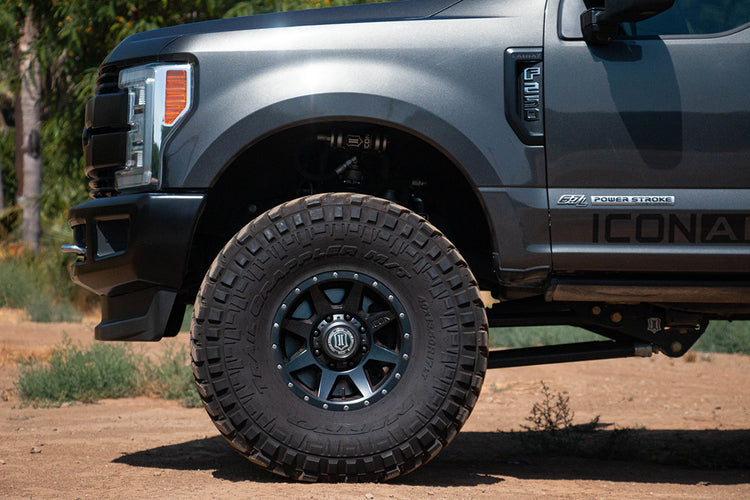

ICON 2023-2026 Ford F-250/F-350 Super Duty 4WD, Front 4-Link Conversion, Lower Links
- ICON Vehicle Dynamics
- SKU:164502
$972.78
10 in stock
Recommended add-ons
ICON 2023-2026 Ford F-250/F-350 Super Duty 4WD, Front 4-Link Conversion, Lower Links
$972.78
- Get It Fast with Same-day Dispatch
- Free Shipping over $199
- All Reman Parts Ship for $299
1-2 day delivery for most. Expedited shipping options available at checkout.
Have questions? We’re here to help.
Call us at 1-800-347-1188 or chat with our tech support.
Product details

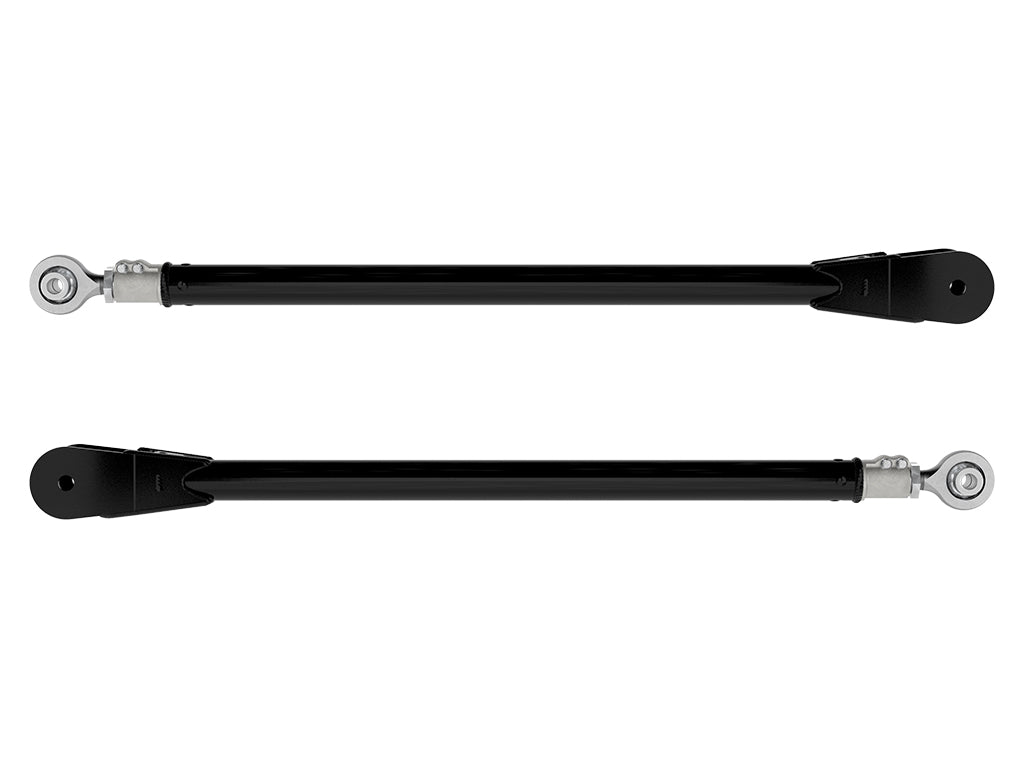

These lower links are an essential component of the ICON 2005-2026 Ford Super Duty 4-Link Conversion System. This 4-Link system not only gives your Ford Super Duty an aggressive look, it enhances the articulation of the front suspension by eliminating bushing bind and improves handling of the truck by maintaining consistent caster angles through the entirety of the front suspension travel range. The large, deflective radius arm bushings are replaced with competition grade, PTFE lined spherical bearings in each link. This harder surface minimizes deflection to further increase the overall handling characteristics for maximum predictability and suspension responsiveness. Additionally, the ICON double adjusters in the lower links allows tuning of caster angle while the links are installed on the vehicle, easing the front-end alignment process.
The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.
The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.
- 4-Link system maintains consistent caster angles through suspension travel for superior handling characteristics
- Improves front end articulation and overall drivability
- Allow on-vehicle caster adjustment via ICON double adjusters in lower links
- Lower links are constructed from CNC machined 2” x .188” wall DOM steel tubing
- PTFE lined FK spherical bearings eliminate deflection
- Corrosion resistant semi-gloss black powder coat finish
- Fabricated components covered under ICON's Limited Lifetime Warranty
CA Residents:
Prop 65 Warning
WARNING
This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Specifications
| Brand | ICON Vehicle Dynamics |
| UPC | 840103408804 |
| Proxy Number | 164502 |
| Shipping Width | 8.00 in |
| Shipping Length | 47.00 in |
| Shipping Depth | 4.00 in |
| Shipping Weight | 45.0000 LB |
Technical Notes
- Factory Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
- Recommended Aftermarket Tires: Up to 37" x 12.50"
- APPLICATION NOTE #1: Only fits 4WD models
- APPLICATION NOTE #485: Compatible with 2.5"-7" of front lift
- APPLICATION NOTE #486: 2005-2010 models require ICON 4-Link brackets part number 164500 and ICON upper links part number 164501 for complete installation.
- APPLICATION NOTE #487: 2011-2016 models require ICON 4-Link brackets part number 164503 and ICON upper links part number 164501 for complete installation.
- APPLICATION NOTE #488: 2017-2022 models require ICON 4-Link brackets part number 164504 and ICON upper links part number 164501 for complete installation.
- APPLICATION NOTE #489: 2023-2026 models require ICON 4-Link brackets part number 64053 and ICON upper links part number 64052 for complete installation.
