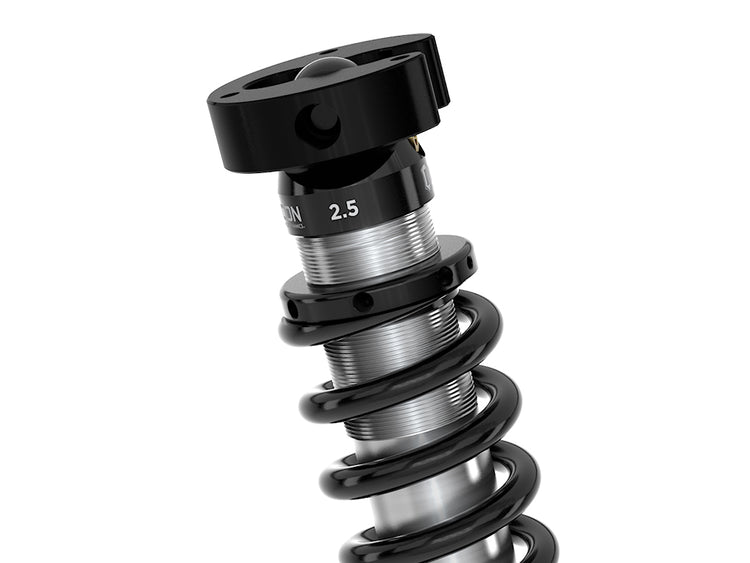

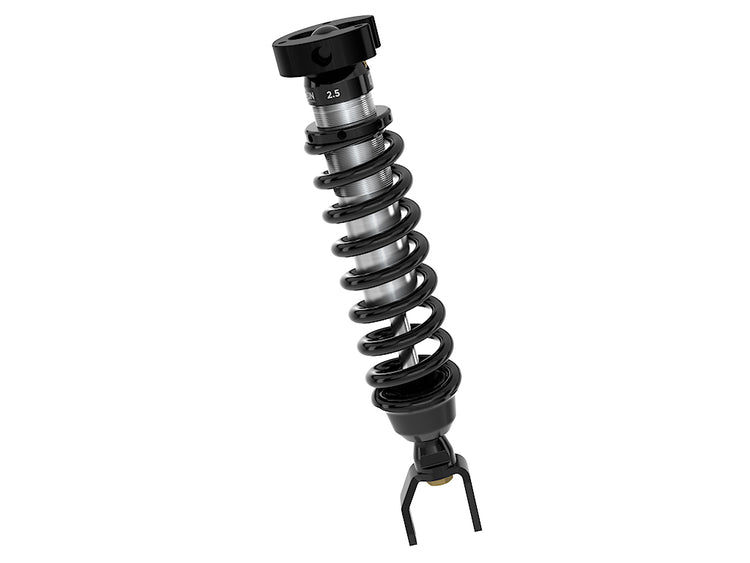

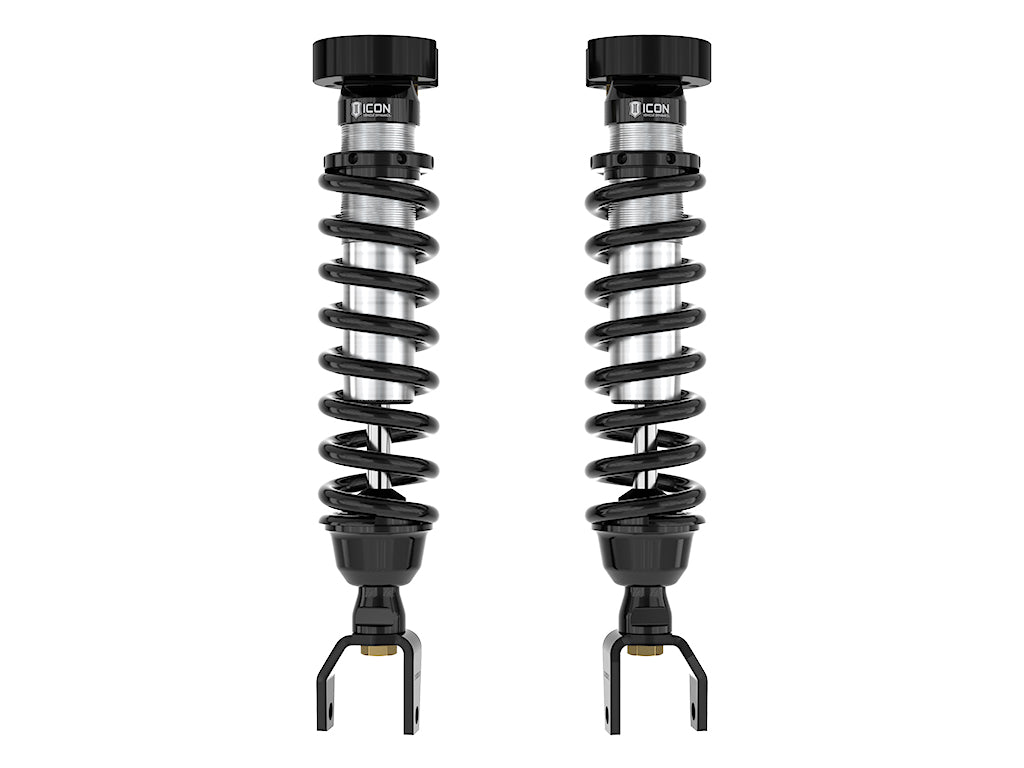

ICON 2019-2023 Ram 1500, 2-3” Lift, Front, V.S. 2.5 Series Coilover Kit, Internal Reservoir
- ICON Vehicle Dynamics
- SKU:211010
$1,523.55
On backorder - will ship upon availability
Recommended add-ons
ICON 2019-2023 Ram 1500, 2-3” Lift, Front, V.S. 2.5 Series Coilover Kit, Internal Reservoir
$1,523.55
- Get It Fast with Same-day Dispatch
- Free Shipping over $199
- All Reman Parts Ship for $299
1-2 day delivery for most. Expedited shipping options available at checkout.
Have questions? We’re here to help.
Call us at 1-800-347-1188 or chat with our tech support.
Product details
ICON Vehicle Dynamics V.S. 2.5 Series coilover shocks are an incredible upgrade for the front end of 2019-2023 Ram 1500 trucks. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while 2-3” of lift height adjustability allows the use of larger, more aggressive wheel and tire combinations. The larger 2.5” shock body and increased piston area over stock components and application specific length to maximize wheel travel provide improved damping ability and outstanding ride characteristics across varying types of terrain. When paired with ICON 2.0 Aluminum Series or 2.5 Series rear shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Ram 1500 truck.
- Increased wheel travel and ride quality over stock
- 100% Bolt-on - no drilling, cutting or welding necessary for installation
- Unique valving developed for the lighter weight and chassis dynamics of the 2019-2023 Ram 1500
- Vehicle specific tuned for superior shock damping and control
- Adjustable from 2-3" of front lift height over stock
- ICON engineered coil springs
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated shock body with 7/8" diameter shaft
- High strength alloy CNC machined lower mounting clevis
- FK rod end bearings for extended longevity and minimal deflection
CA Residents:
Prop 65 Warning
WARNING
This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Specifications
| Brand | ICON Vehicle Dynamics |
| UPC | 840103411781 |
| Proxy Number | 211010 |
| Shipping Width | 13.00 in |
| Shipping Length | 27.00 in |
| Shipping Depth | 7.00 in |
| Shipping Weight | 42.0000 LB |
Technical Notes
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.00" Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.00" Backspace / 0mm Offset
- Recommended Aftermarket Tires: 35" x 12.50" (fender trimming and modifications will be required.)
- APPLICATION NOTE #18: These systems are to be used with aftermarket upper control arms only
- APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
- APPLICATION NOTE #100: Spring not rated for EcoDiesel equipped trucks
- APPLICATION NOTE #105: Not for vehicles with rear factory air ride
- APPLICATION NOTE #131: Will not fit 2019-UP Ram 1500 Classic models
- TECH NOTE: 2019-2023 Ram 1500 Rebel will have lift height range of 1.25-2.25" over stock
- TECH NOTE: Will not fit Ram 1500 TRX
