ICON 2014-2026 Ram 2500, 0.5" Lift, Rear, Performance Coil Spring Kit
- ICON Vehicle Dynamics
- SKU:214206
$518.79
20 in stock
Recommended add-ons

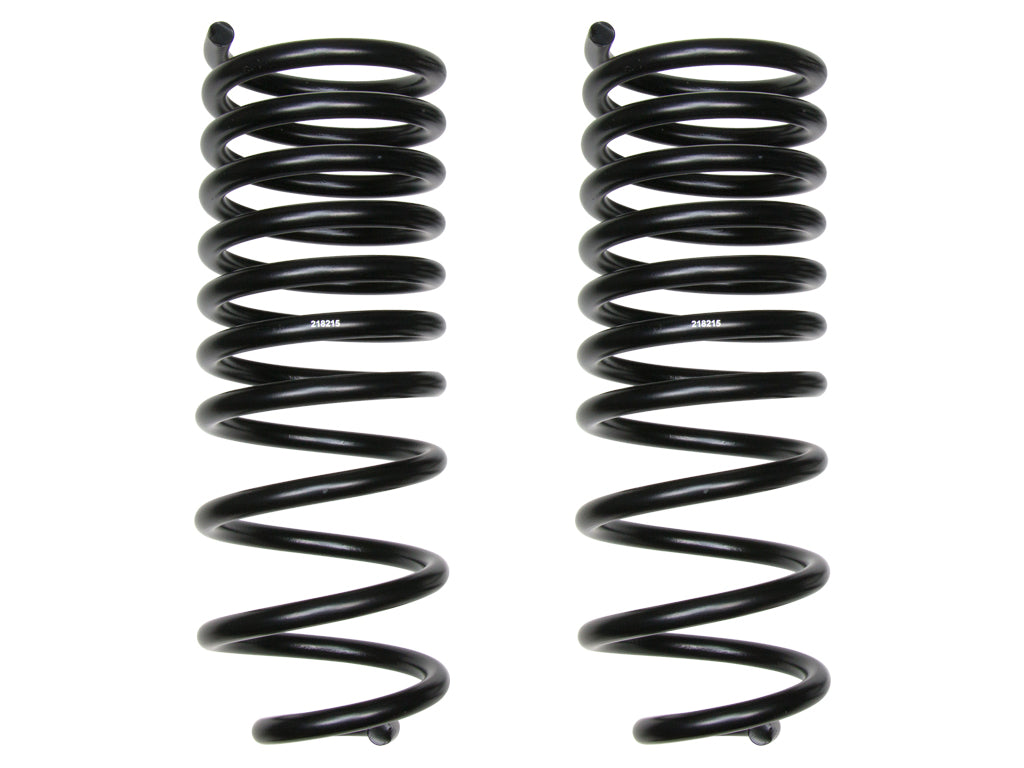

ICON 2014-2026 Ram 2500, 0.5" Lift, Rear, Performance Coil Spring Kit
$518.79
- Get It Fast with Same-day Dispatch
- Free Shipping over $199
- All Reman Parts Ship for $299
1-2 day delivery for most. Expedited shipping options available at checkout.
Have questions? We’re here to help.
Call us at 1-800-347-1188 or chat with our tech support.
Product details
ICON engineers have also developed optional "Performance Systems" that include multi-rate rear coil springs in place of the rear spacer. The lighter initial droop rate of these performance rear coil springs helps the truck feel smoother and more controlled over washboard roads, small whoops, or similar terrain. The secondary ride rate allows the truck to maintain exceptional ride quality, while the aggressive third overload rate helps prevent bottom outs and provides payload support. These systems were developed with the chase truck type of application in mind, and will significantly increase the on and off-road performance of the RAM 2500 when driven aggressively.
- Vehicle specific design yields .5" of rear lift on Ram 2500 equipped with rear coil spring
- Triple rate rear coil springs with ICON-engineered droop, ride, and overload rates
- Significantly improves on- and off-road ride quality and performance over stock
- Rear extended length shocks are recommended for complete installation
- Durable powder coating for corrosion resistance
- Lifetime guarantee against sagging/breakage
CA Residents:
Prop 65 Warning
WARNING
This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Specifications
| Brand | ICON Vehicle Dynamics |
| UPC | 840103400693 |
| Proxy Number | 214206 |
| Shipping Width | 19.00 in |
| Shipping Length | 26.00 in |
| Shipping Depth | 10.00 in |
| Shipping Weight | 77.0000 LB |
Technical Notes
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.25” Backspace / 13mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.50" Backspace / 12mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.50" Backspace / 12mm Offset
- Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required)
- APPLICATION NOTE #12: Helper air bags are recommended for hauling/towing heavy loads
- APPLICATION NOTE #105: Not for vehicles with rear factory air ride
- APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
Fitment
