ICON 2020-2023 Jeep Gladiator/2019-2023 Ram 1500, Adjustable Tubular Lower Link Kit, Rear
- ICON Vehicle Dynamics
- SKU:22063T
$544.95$572.19
4% off
7 in stock
Recommended add-ons
ICON 2020-2023 Jeep Gladiator/2019-2023 Ram 1500, Adjustable Tubular Lower Link Kit, Rear
$544.95$572.19
4% off
- Get It Fast with Same-day Dispatch
- Free Shipping over $199
- All Reman Parts Ship for $299
1-2 day delivery for most. Expedited shipping options available at checkout.
Have questions? We’re here to help.
Call us at 1-800-347-1188 or chat with our tech support.
Product details

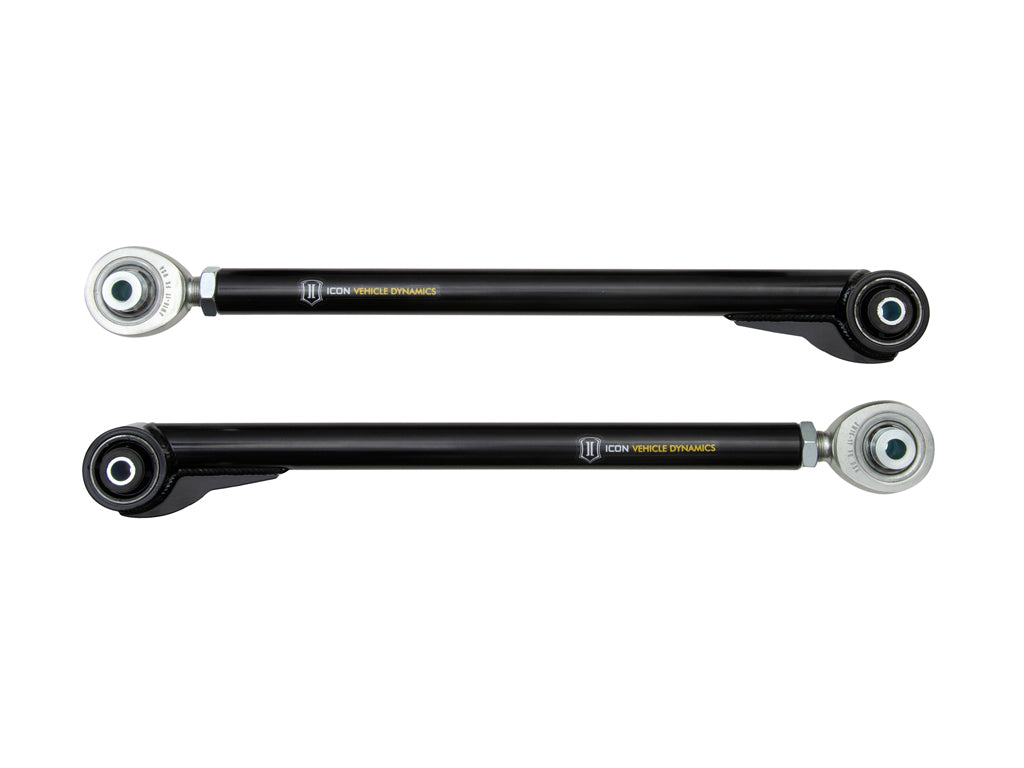

The ICON Tubular Rear Lower Link System helps free up rear axle movement on the 2020-2023 Jeep Gladiator and 2019-2023 Ram 1500 to allow for increased suspension travel and articulation. Formed using 1 1/2” x .313 wall DOM Tubing for high strength, with CNC machined threaded ends and bushing housings, and feature a multi-stage black powder coat finish. These lower links are designed specifically for high clearance for reduced contact with trail obstacles and massive FK Rod End at one end, along with a dual-durometer, high angle greaseless bushing at the other end yields the best combination of maximum travel and articulation while isolating and damping road noise and vibrations. Hit the trail with the confidence of knowing your suspension components are covered by ICON’s Limited Lifetime Warranty.
- CNC machined & notched 1026 DOM steel construction
- Multi durometer bushing for noise free operation and maximum angularity
- No grease required for life of bushings
- Quality JM16T PTFE-lined FK Rod Ends
- Adjustable for various lift heights & driveline angles
- High clearance barrel design reduces risk of off-road hangups
- ICON1K tested in extreme off-road conditions
- Fabricated components covered under ICON's lifetime warranty
CA Residents:
Prop 65 Warning
WARNING
This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Specifications
| Brand | ICON Vehicle Dynamics |
| UPC | 840103408910 |
| Proxy Number | 22063 |
| Shipping Width | 8.00 in |
| Shipping Length | 30.00 in |
| Shipping Depth | 4.00 in |
| Shipping Weight | 27.0000 LB |
Technical Notes
- APPLICATION NOTE #105: Not for vehicles with rear factory air ride
- TECH NOTE: Compatible with 0-2" of rear lift on most Jeep Gladiator submodels
- TECH NOTE: Compatible with 0-3" of rear lift on most Ram 1500 submodels
- TECH NOTE: Compatible with 0-2.5" of rear lift on 2019-2023 Ram 1500 Rebel
- TECH NOTE: Will not fit 2021-2023 Ram 1500 TRX
- TECH NOTE: Will not fit 2019-2023 Ram 1500 Classic models
Fitment
