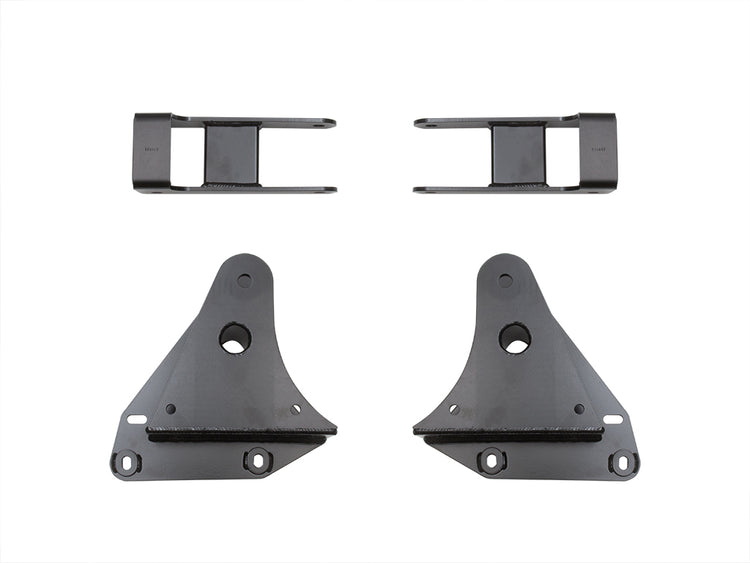

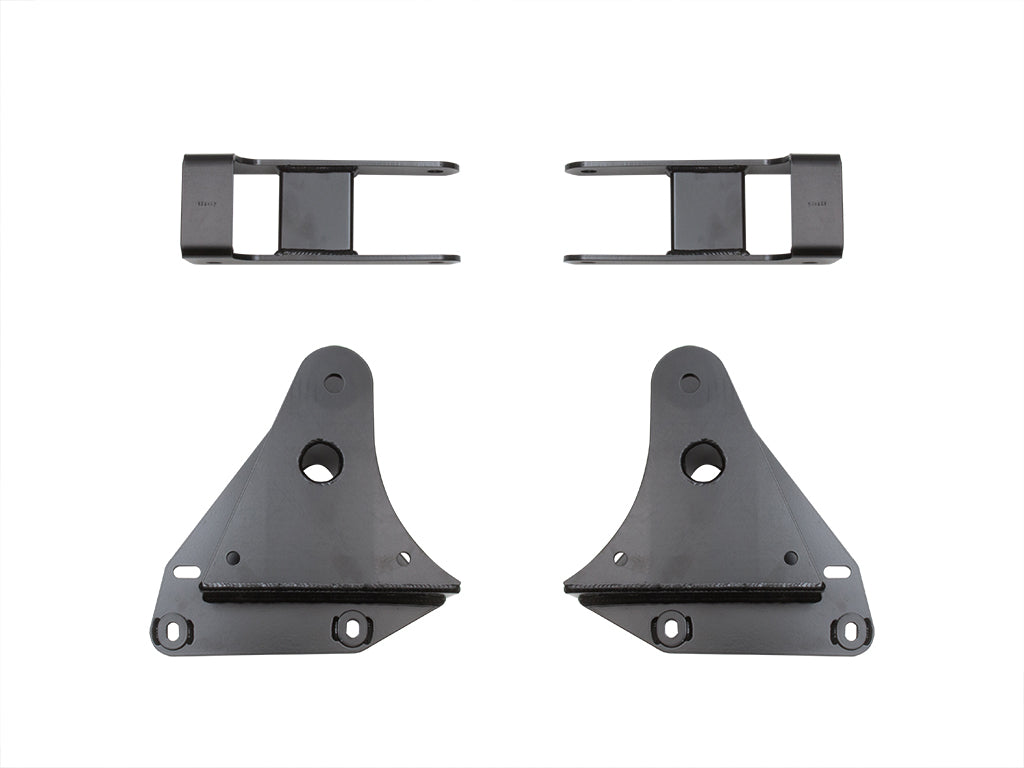

ICON 1999-2004 Ford F-250 & F-350 Super Duty 4WD/2000-2005 Ford Excursion 4WD, Front, 4.5" Lift, Leaf Spring Hanger & Shackle Kit
- ICON Vehicle Dynamics
- SKU:34099
$656.13
Low stock: 4 left
Recommended add-ons
Decrease quantity for ICON 1999-2004 Ford F-250 & F-350 Super Duty 4WD/2000-2005 Ford Excursion 4WD, Front, 4.5" Lift, Leaf Spring Hanger & Shackle Kit
Increase quantity for ICON 1999-2004 Ford F-250 & F-350 Super Duty 4WD/2000-2005 Ford Excursion 4WD, Front, 4.5" Lift, Leaf Spring Hanger & Shackle Kit
ICON 1999-2004 Ford F-250 & F-350 Super Duty 4WD/2000-2005 Ford Excursion 4WD, Front, 4.5" Lift, Leaf Spring Hanger & Shackle Kit
$656.13
- Get It Fast with Same-day Dispatch
- Free Shipping over $199
- All Reman Parts Ship for $299
1-2 day delivery for most. Expedited shipping options available at checkout.
Have questions? We’re here to help.
Call us at 1-800-347-1188 or chat with our tech support.
Product details
The ICON Vehicle Dynamics Front Leaf Spring Hangers are engineered to provide 4.5” of front lift for 1999-2004 Ford F-250 and F-350 Super Duty trucks while maintaining the versatility to work with a wide range of suspension configurations. Designed to deliver a factory-like ride when paired with OE leaf springs, they are also compatible with many aftermarket leaf spring options, making them an excellent foundation for both daily driven and off-road focused builds. Fabricated from precision CNC laser cut steel plate and tubing, these hangers offer exceptional strength and durability to withstand the demands of hard use. A durable semi-gloss black powder coat finish provides long-lasting corrosion resistance and a clean, factory-inspired appearance, while the straightforward bolt-on design allows for simple installation without unnecessary modification. Like all ICON suspension components, these front leaf spring hangers are backed by ICON Vehicle Dynamics' Limited Lifetime Warranty for confidence on every adventure.
- Provides 4.5" of front lift over stock
- Can be used with stock leaf springs for factory-like ride
- Compatible with many aftermarket leaf springs
- Fabricated from precision CNC laser cut steel plate and tubing
- Durable semi-gloss black powder coat finish for corrosion resistance
- Simple, bolt-on installation
- Protected by ICON's Limited Lifetime Warranty
CA Residents:
Prop 65 Warning
WARNING
This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Specifications
| Brand | ICON Vehicle Dynamics |
| UPC | 840103402260 |
| Proxy Number | 34099 |
| Shipping Width | 16.00 in |
| Shipping Length | 16.00 in |
| Shipping Depth | 9.00 in |
| Shipping Weight | 50.0000 LB |
Technical Notes
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
- Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
- APPLICATION NOTE #1: Only fits 4WD models
- APPLICATION NOTE #695: Will not fit early 1999 models
- APPLICATION NOTE #698: Also requires bump stop spacer kit part number 33100
- APPLICATION NOTE #700: Also requires box kit part number 31020
