ICON 2021-2026 Ford Bronco, Rear, Tubular Upper Trailing Arm Kit
- ICON Vehicle Dynamics
- SKU:44100T
$653.95
82 in stock
Recommended add-ons
ICON 2021-2026 Ford Bronco, Rear, Tubular Upper Trailing Arm Kit
$653.95
- Get It Fast with Same-day Dispatch
- Free Shipping over $199
- All Reman Parts Ship for $299
1-2 day delivery for most. Expedited shipping options available at checkout.
Have questions? We’re here to help.
Call us at 1-800-347-1188 or chat with our tech support.
Product details

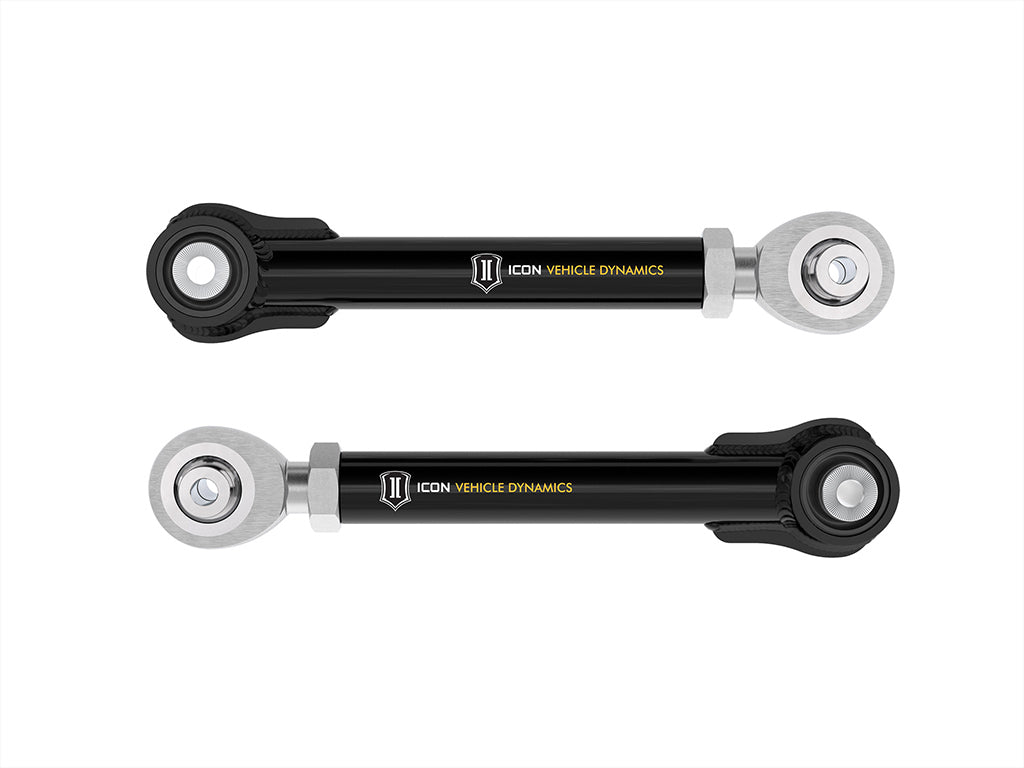

The ICON Tubular Rear Upper Link System helps free up rear axle movement on the 2021-2026 Ford Bronco to allow for increased suspension travel and articulation. Formed using 1 ¾” x .313 wall DOM Tubing for high strength with CNC machined threaded ends and bushing housings and feature a multi-stage black powder coat finish. These rear upper links are designed specifically for improved fuel tank clearance at maximum articulation and massive FK Rod End at one end, along with a dual-durometer, high angle greaseless bushing at the other end yields the best combination of maximum travel and articulation while isolating and damping road noise and vibrations. Hit the trail with the confidence of knowing your suspension components are covered by ICON’s Limited Lifetime Warranty.
- Adjustable for various lift heights & driveline angles
- Improves link angles to help free rear suspension bind
- Designed for increased fuel tank clearance for maximum articulation
- CNC machined & notched 1026 DOM steel construction with semi-gloss black powder coat finish
- Multi durometer bushings for noise free operation and maximum angularity
- No grease required for life of bushings
- Quality JM16T PTFE-lined FK Rod Ends
- Fabricated components covered under ICON's Limited Lifetime Warranty
CA Residents:
Prop 65 Warning
WARNING
This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Specifications
| Brand | ICON Vehicle Dynamics |
| UPC | 840103412320 |
| Proxy Number | 44100 |
| Shipping Width | 8.00 in |
| Shipping Length | 30.00 in |
| Shipping Depth | 4.00 in |
| Shipping Weight | 25.0000 LB |
Technical Notes
- APPLICATION NOTE #10: Will not fit Bronco Raptor
