Van Compass Rear Storage Trunk, Sprinter
- Van Compass
- SKU:5003
$1,085.95
On backorder - will ship upon availability
Recommended add-ons
Van Compass Rear Storage Trunk, Sprinter
$1,085.95
- Get It Fast with Same-day Dispatch
- Free Shipping over $199
- All Reman Parts Ship for $299
1-2 day delivery for most. Expedited shipping options available at checkout.
Have questions? We’re here to help.
Call us at 1-800-347-1188 or chat with our tech support.
Product details
Add more storage and functionality to the rear of your Sprinter van with the Van Compass Rear Storage Trunk. For many van owners, the choice to relocate their vehicle's spare tire to a rear swing out on the bumper opens up an abundance of unused space underneath the rear of the vehicle. Take full advantage of the space where the factory spare tire was mounted by dropping in this fully sealed trunk. With a 300lb cargo rating, this trunk provides more cubic feet of storage in the vehicle which can be utilized for a number of scenarios.
The factory spare tire must be relocated for this trunk to be installed. Cutting and drilling of the floor is required. If you feel comfortable cutting a hole in the roof of your van for a roof vent, then this trunk is a simple install. The Van Compass Rear Storage Trunk is made in USA from 3/16" thick 5052 Aluminum.

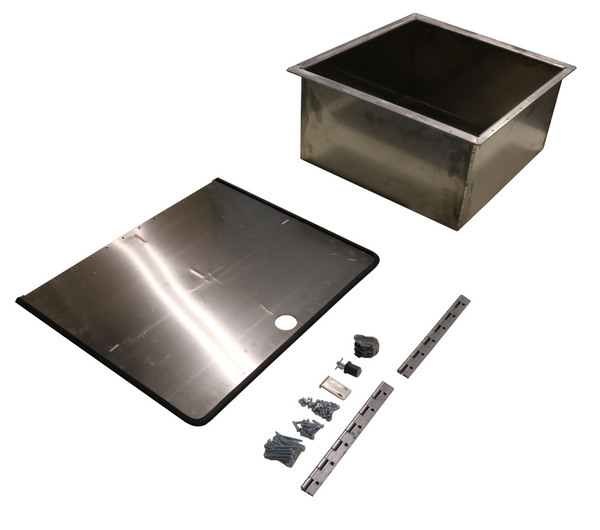

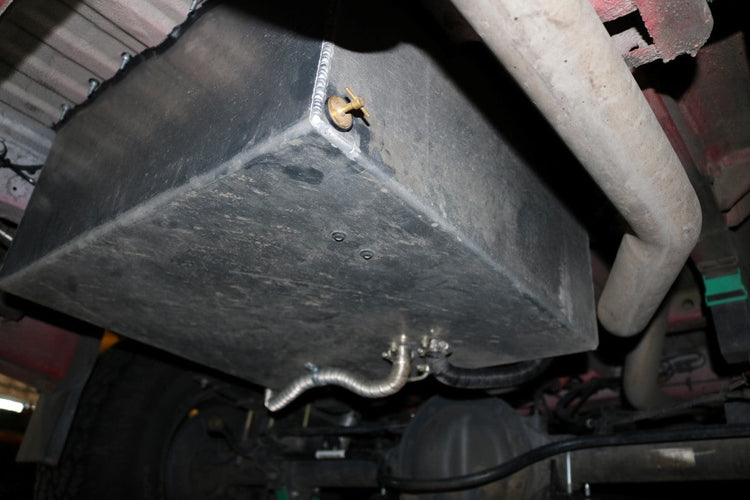

Mounting screws, edge trim, hinges and latch are included with the kit. The trunk features a 1" drainage hole along with a boat style T-handle drain plug. Installer will need to source their preferred sealant to seal the bottom of the trunk to the vehicle. See the instructions below for detailed photos and recommendations on sealant.
The factory spare tire must be relocated for this trunk to be installed. Cutting and drilling of the floor is required. If you feel comfortable cutting a hole in the roof of your van for a roof vent, then this trunk is a simple install. The Van Compass Rear Storage Trunk is made in USA from 3/16" thick 5052 Aluminum.
Mounting screws, edge trim, hinges and latch are included with the kit. The trunk features a 1" drainage hole along with a boat style T-handle drain plug. Installer will need to source their preferred sealant to seal the bottom of the trunk to the vehicle. See the instructions below for detailed photos and recommendations on sealant.
- House auxiliary batteries out of the elements while allowing for easy service of electrical systems.
- Install an auxiliary diesel fired heater.
- Use as a shower pan.
- Fill with ice and use as a built in cooler.
- House heavy recovery gear and tools in the trunk.
- Mount water tanks and plumbing systems so they are out of the elements and are easily serviceable.
- The possibilities are endless!
CA Residents:
Prop 65 Warning
WARNING
This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Specifications
| Brand | Van Compass |
| UPC | 810185260096 |
| Shipping Width | 30.00 in |
| Shipping Length | 18.00 in |
| Shipping Depth | 30.00 in |
| Shipping Weight | 71.0000 LB |
Technical Notes
- NOTE: CUTTING OF A CROSSMEMBER REQUIRED FOR INSTALLATION - SEE INSTRUCTIONS
