ICON 2022-2025 Toyota Tundra/2023-2025 Toyota Sequoia/2024-2025 Toyota Tacoma, Rear, Billet Lower Link Kit
- ICON Vehicle Dynamics
- SKU:54002
$1,525.95$1,602.24
4% off
19 in stock
Recommended add-ons
ICON 2022-2025 Toyota Tundra/2023-2025 Toyota Sequoia/2024-2025 Toyota Tacoma, Rear, Billet Lower Link Kit
$1,525.95$1,602.24
4% off
- Get It Fast with Same-day Dispatch
- Free Shipping over $99
1-2 day delivery for most. Expedited shipping options available at checkout.
Have questions? We’re here to help.
Call us at 1-800-347-1188 or chat with our tech support.
Product details

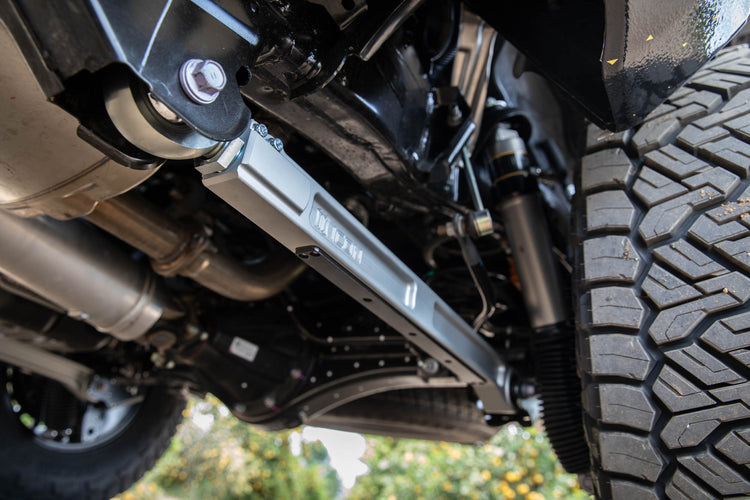

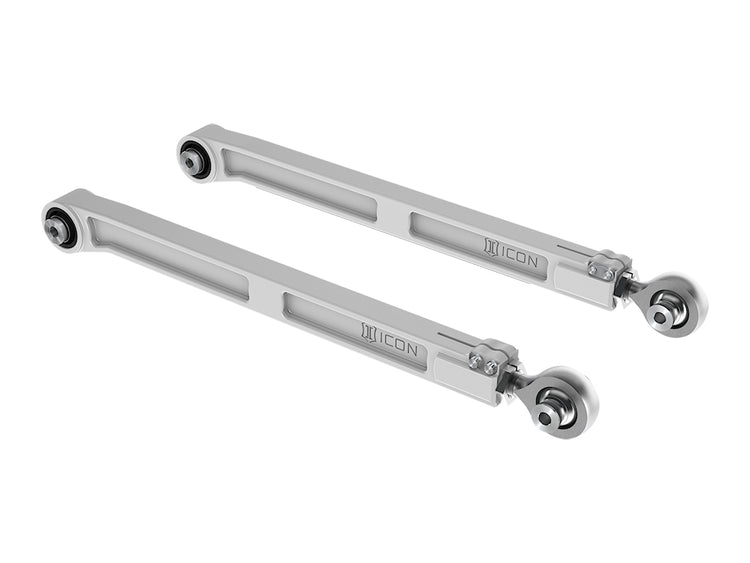

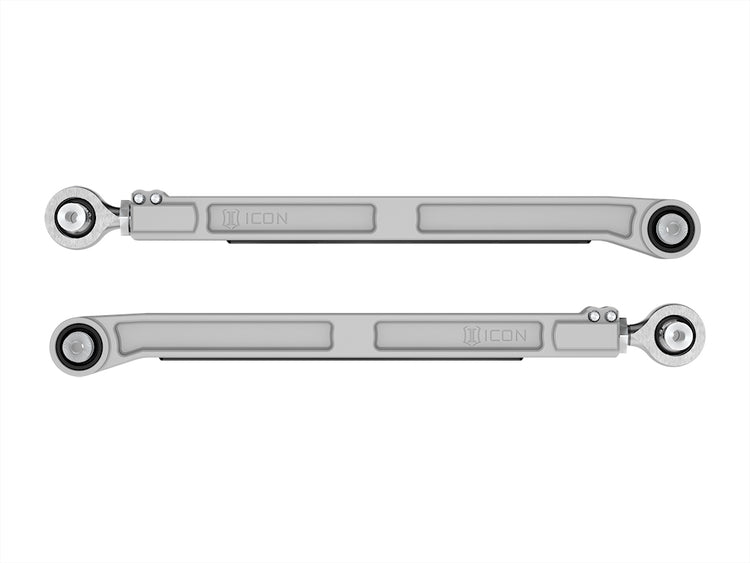

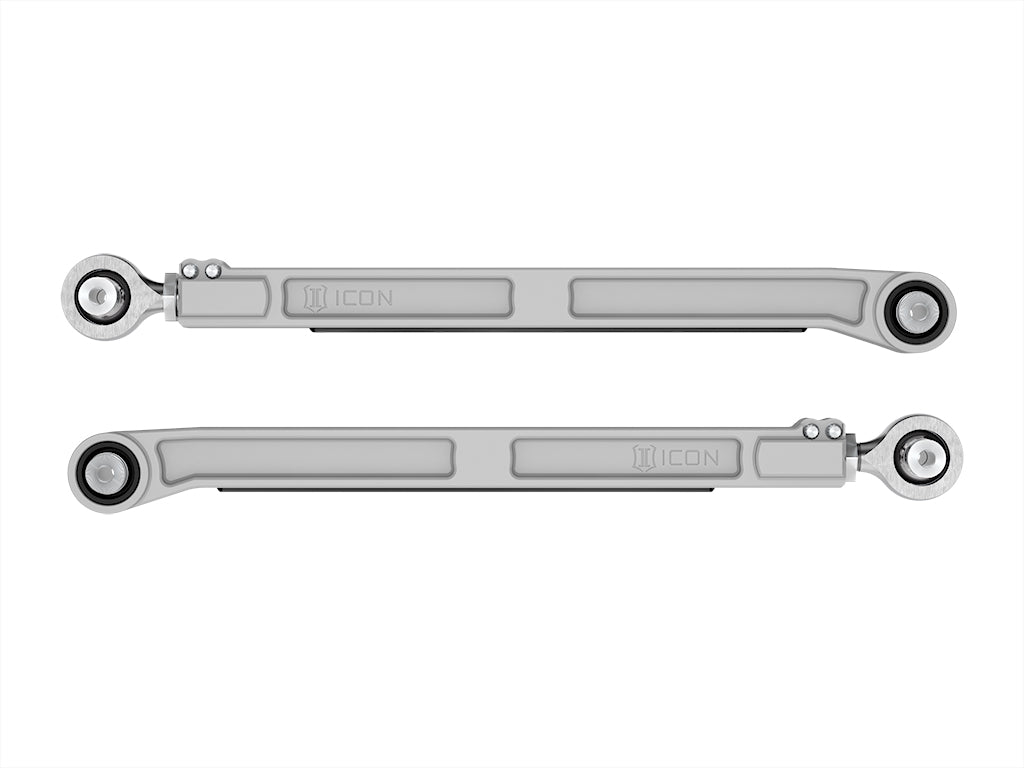

ICON’s billet aluminum rear lower link arms for the 2022-2025 Toyota Tundra, 2023-2025 Toyota Sequoia, and 2024-2025 Toyota Tacoma are a significant upgrade over the factory units due to increases in strength, adjustability, and performance. These links are made from CNC machined 6061 aluminum in-house and anodized for corrosion resistance, providing a major improvement over the construction of the stock units. This rear lower link arm kit features PTFE-lined FK rod ends for increased suspension articulation, reduced deflection, and on-vehicle link arm length adjustability using ICON’s double adjuster system. Additionally, multi durometer bushings are installed that allow for noise free operation and maximum angularity without the need for periodic greasing and/or other maintenance. The quality rod ends and bushings featured in these link arms allow the vehicle’s suspension to function as intended, without the bushing bind that limits the vehicle in stock form. ICON’s engineering team has also gone a step further in the development of these products by incorporating features such replaceable nylon rock sliders to prevent any hang-ups on the trail. After the design phase was completed ICON engineers put these parts through the “ICON1K” real-world test cycle for a final stamp of approval.
- On vehicle adjustment for different ride heights and pinion angles using ICON's Double Adjuster System
- Vehicle specific, high clearance design for reduced link contact with obstacles
- Replaceable Nylon Rock Slider to protect the link from damage
- CNC machined 6061 aluminum construction

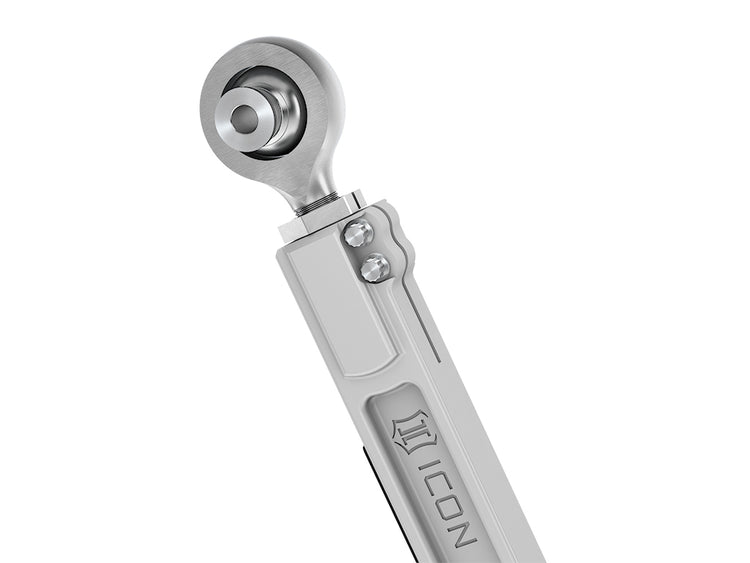

- Large FK Bearing JMX16T PTFE-lined rod ends
- Maintenance free, dual durometer bushings for maximum angularity and noise isolation
- Covered by ICON’s Limited Lifetime Warranty
CA Residents:
Prop 65 Warning
WARNING
This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Specifications
| Brand | ICON Vehicle Dynamics |
| UPC | 840103414379 |
| Proxy Number | 54002 |
| Shipping Width | 8.00 in |
| Shipping Length | 30.00 in |
| Shipping Depth | 4.00 in |
| Shipping Weight | 22.0000 LB |
Technical Notes
- APPLICATION NOTE #164: Will not fit Tacoma submodels equipped with rear leaf springs
