ICON 2003-2024 Toyota 4Runner/2007-2014 FJ Cruiser/2003-2023 Lexus GX, Rear Air Bump Kit
- ICON Vehicle Dynamics
- SKU:56104
$1,079.05
On backorder - will ship upon availability
Recommended add-ons
ICON 2003-2024 Toyota 4Runner/2007-2014 FJ Cruiser/2003-2023 Lexus GX, Rear Air Bump Kit
$1,079.05
- Get It Fast with Same-day Dispatch
- Free Shipping over $199
- All Reman Parts Ship for $299
1-2 day delivery for most. Expedited shipping options available at checkout.
Have questions? We’re here to help.
Call us at 1-800-347-1188 or chat with our tech support.
Product details

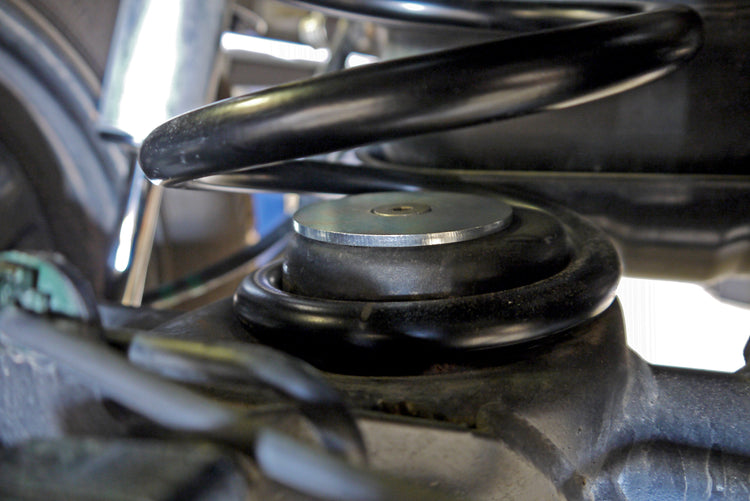

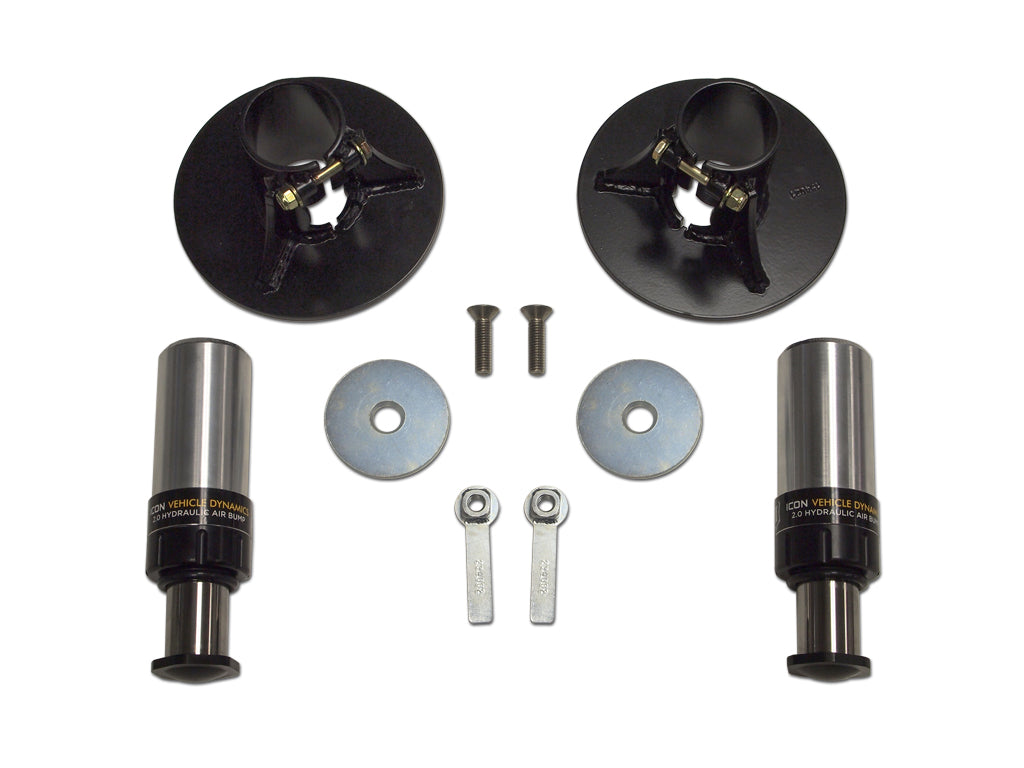

ICON Vehicle Dynamics now offers a bolt-in hydraulic bump stop Kit for the 2007-2014 Toyota FJ Cruiser AND 2003-2024 4Runner. This kit reduces rear-end “kick” and helps to improve the overall off-road performance of the vehicle. The OEM rubber bumpstops have a limited energy absorption capacity that is released rather uncontrollably upon rebound, resulting in a harsh ride and ill-handling vehicle in rough terrain. The ICON hydraulic bump stops are velocity sensitive which means that the amount of energy absorbed increases the faster they are engaged, so those harsh g-outs and square edges are less likely to interrupt your off-road adventures. Vehicles equipped with the ICON hydraulic bumpstop kit will have an increased bottom-out resistance over stock, as well as an improved drivability off-road. This kit installs easily inside the coil, and the bumpstops are fully rebuildable with the ability to be tuned for a custom ride. With a simple installation, proven effectiveness, and no loss in travel there is no reason not to bolt up the ICON Vehicle Dynamics hydraulic bumpstop kit to your ride and experience the difference.
- Hydraulic / pneumatic bumpstop increases bump energy capacity
- Velocity sensitive bumpstop increases the amount of energy absorbed the faster it is hit
- Reduces rear end kick and improves overall performance
- Increased bottom resistance over stock
- No loss in travel
- Easy installation inside coil
- Pre-tuned for most users
- Linear-digressive piston which compliment a bumpstop over the industry standard linear-linear piston. Infinite tuning options with valve stack, oil volume, and nitrogen pressure adjustments
- CAD Plated body for corrosion free service
- Urethane rod seal and wiper for long service life
- User serviceable
CA Residents:
Prop 65 Warning
WARNING
This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Specifications
| Brand | ICON Vehicle Dynamics |
| UPC | 840103402963 |
| Proxy Number | 56104 |
| Shipping Width | 10.00 in |
| Shipping Length | 10.00 in |
| Shipping Depth | 4.00 in |
| Shipping Weight | 14.0000 LB |
Technical Notes
- TECH NOTE: Vehicles equipped with factory rear air suspension require rear coil conversion, ICON part number 56110, and ICON rear coil springs, ICON part number 52700 or 52800
