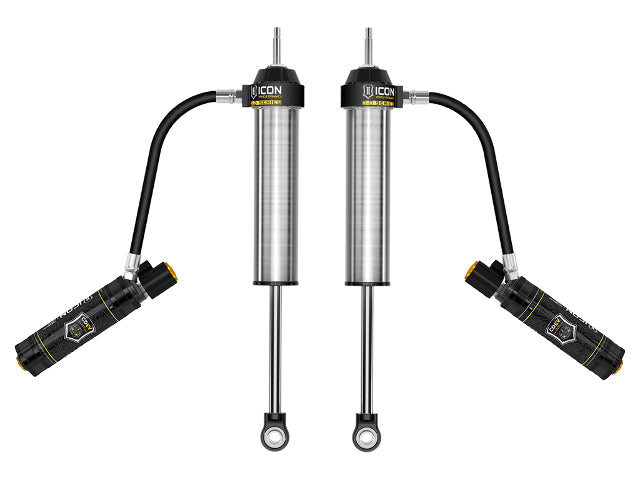

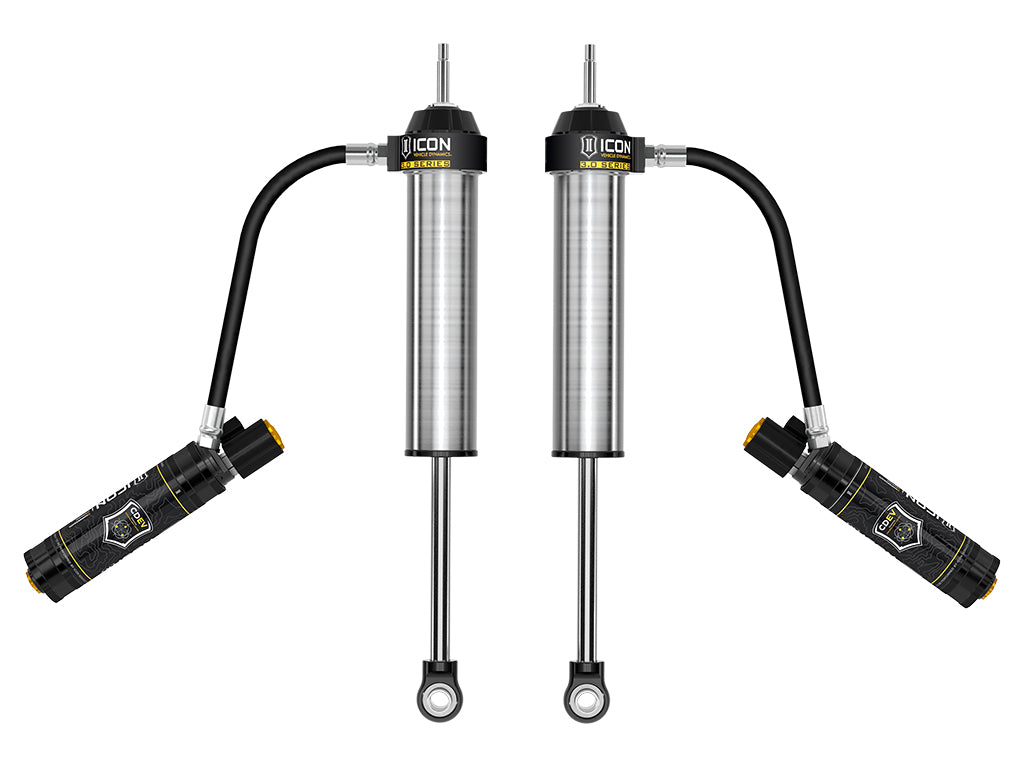

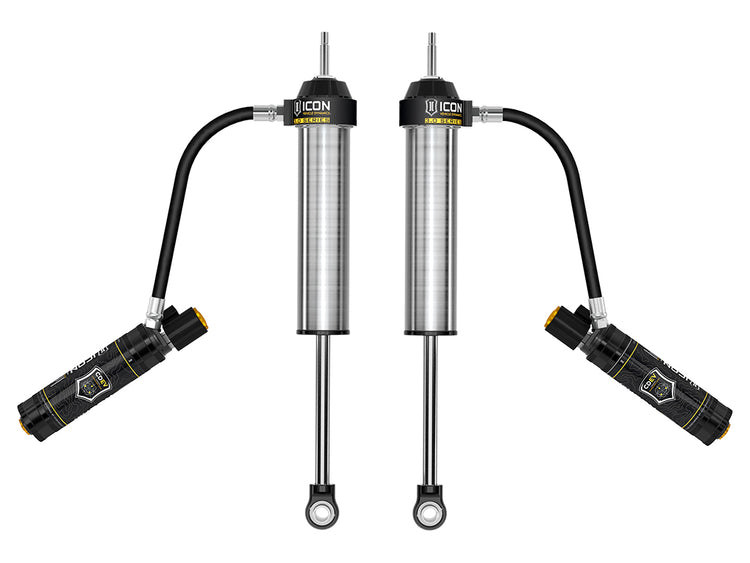

ICON 2022-2025 Toyota Tundra 0-1.5” Lift/2023-2025 Sequoia 0-4" Lift, Rear, V.S. 3.0 Series Shock Absorbers, Remote Reservoir w/ CDEV, Pair
- ICON Vehicle Dynamics
- SKU:57845EP
$2,506.95$2,632.29
4% off
Low stock: 1 left
Recommended add-ons
Decrease quantity for ICON 2022-2025 Toyota Tundra 0-1.5” Lift/2023-2025 Sequoia 0-4" Lift, Rear, V.S. 3.0 Series Shock Absorbers, Remote Reservoir w/ CDEV, Pair
Increase quantity for ICON 2022-2025 Toyota Tundra 0-1.5” Lift/2023-2025 Sequoia 0-4" Lift, Rear, V.S. 3.0 Series Shock Absorbers, Remote Reservoir w/ CDEV, Pair
ICON 2022-2025 Toyota Tundra 0-1.5” Lift/2023-2025 Sequoia 0-4" Lift, Rear, V.S. 3.0 Series Shock Absorbers, Remote Reservoir w/ CDEV, Pair
$2,506.95$2,632.29
4% off
- Get It Fast with Same-day Dispatch
- Free Shipping over $99
1-2 day delivery for most. Expedited shipping options available at checkout.
Have questions? We’re here to help.
Call us at 1-800-347-1188 or chat with our tech support.
Product details
ICON VS 3.0 Series shocks are designed and built to give your vehicle maximum performance off-road and a smooth ride on the street. They feature remote reservoirs and are 100% rebuildable/revalveable. CDCV allows for damping adjustment.
- ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
- 20% increase in rear suspension travel compared to stock
- Compatible with up to 1.5” of rear lift on most Tundra models or 3" of lift on Sequoia
- Vehicle specific design and tuning for superior shock damping and control
- 3.0” Body diameter for increased oil volume and larger piston area
- CNC machined 6061 aluminum components with a black anodized finish
- Corrosion resistant CAD plated steel shock bodies
- Fully Rebuildable and Re-tunable
CA Residents:
Prop 65 Warning
WARNING
This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Specifications
| Brand | ICON Vehicle Dynamics |
| UPC | 840103421308 |
| Shipping Width | 13.00 in |
| Shipping Length | 31.00 in |
| Shipping Depth | 7.00 in |
| Shipping Weight | 43.0000 LB |
Technical Notes
- APPLICATION NOTE #153: Not compatible with Adaptive Variable Suspension (AVS) equipped vehicles

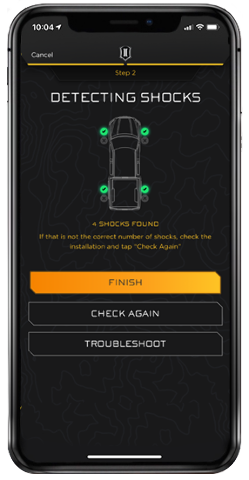

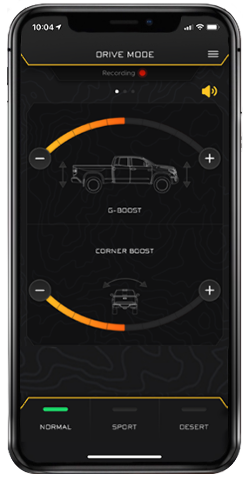

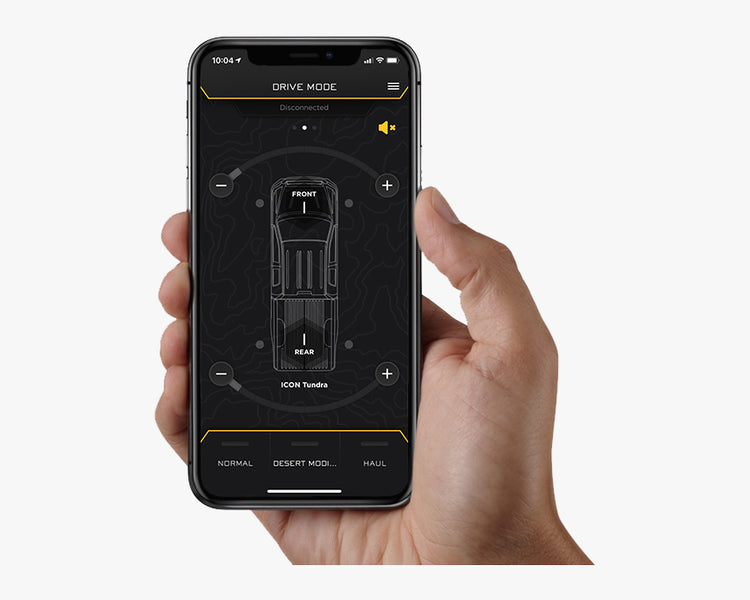

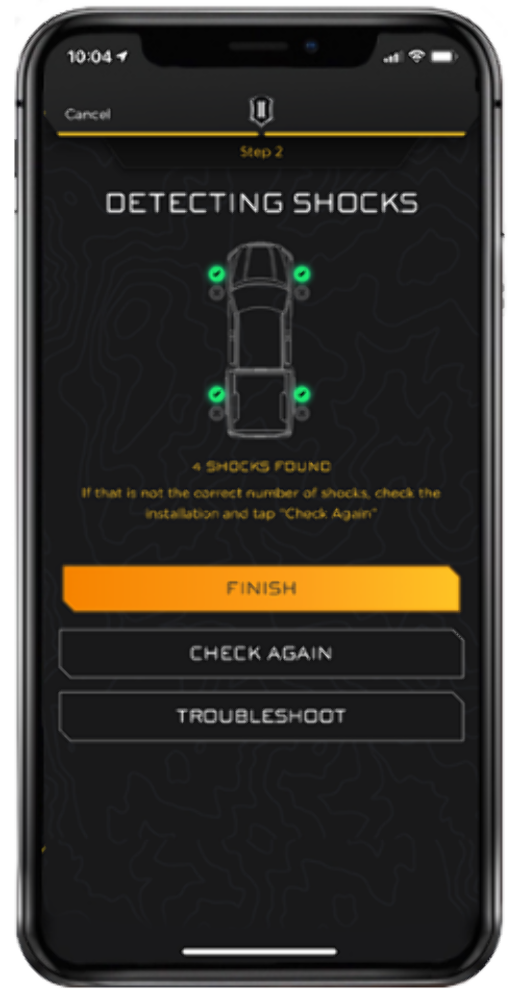

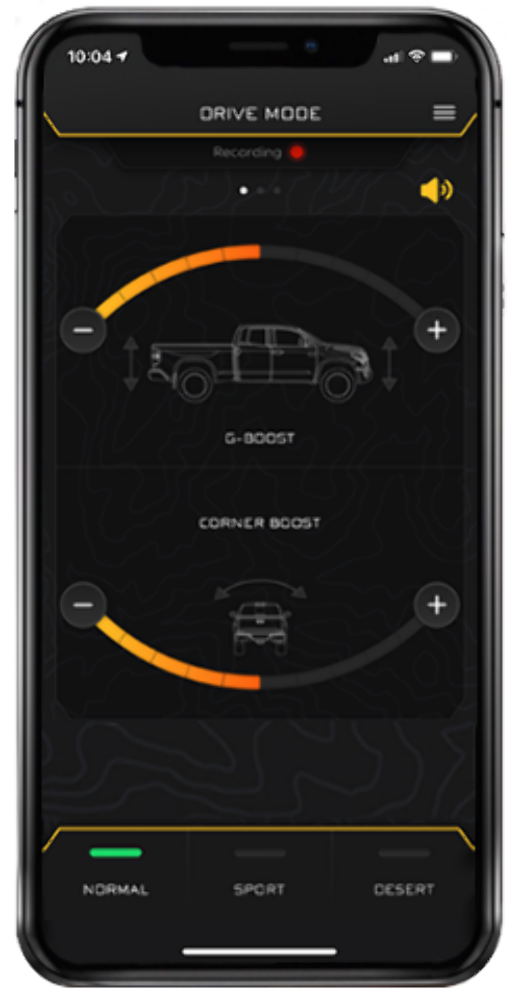

- APPLICATION NOTE #198: An iOS operated device is required to run ICON Intelligent Control app
- APPLICATION NOTE #204: Also requires installation of applicable IIC kit and CDEV front shocks
- TECH NOTE: Compatible with 0-1.5" of rear lift on non-TRD Tundras or 0-1" lift on TRD Tundras equipped with rear coil springs
- TECH NOTE: Compatible with 0-3.5" of rear lift on Tundras equipped with rear OE Load-leveling Rear Height Control Air Suspension
- TECH NOTE: Compatible with 0-4" of rear lift on non-TRD Sequoias equipped with rear coil springs or 0-2" lift on TRD Sequoias
