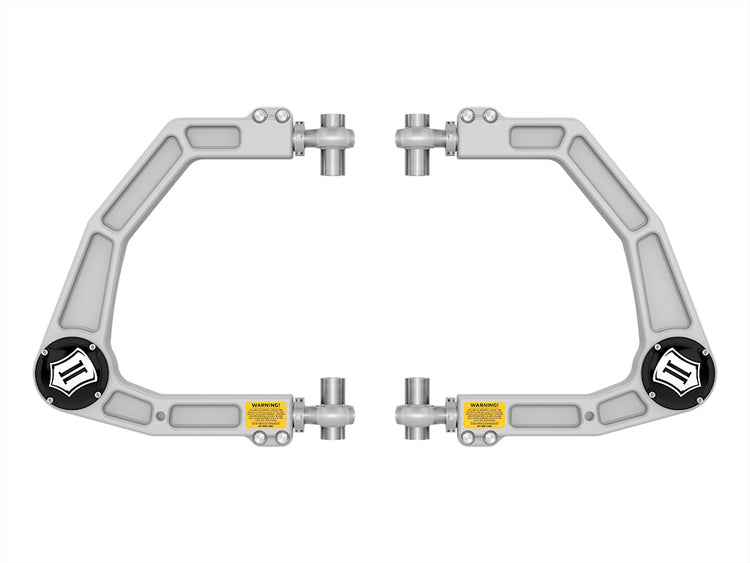

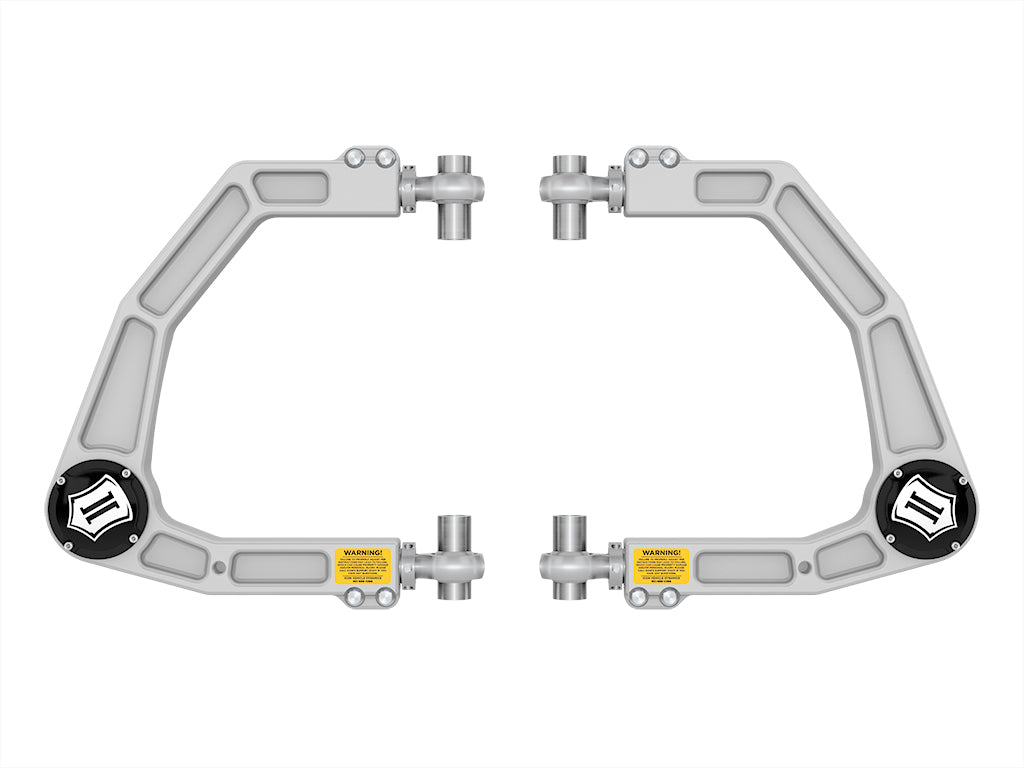

ICON 2022-2025 Toyota Tundra/2023-2025 Toyota Sequoia, Billet Upper Control Arm Kit, w/ Delta Joint Pro
- ICON Vehicle Dynamics
- SKU:58561DJ
$1,439.95$1,511.95
4% off
98 in stock
Recommended add-ons
ICON 2022-2025 Toyota Tundra/2023-2025 Toyota Sequoia, Billet Upper Control Arm Kit, w/ Delta Joint Pro
$1,439.95$1,511.95
4% off
- Get It Fast with Same-day Dispatch
- Free Shipping over $99
1-2 day delivery for most. Expedited shipping options available at checkout.
Have questions? We’re here to help.
Call us at 1-800-347-1188 or chat with our tech support.
Product details

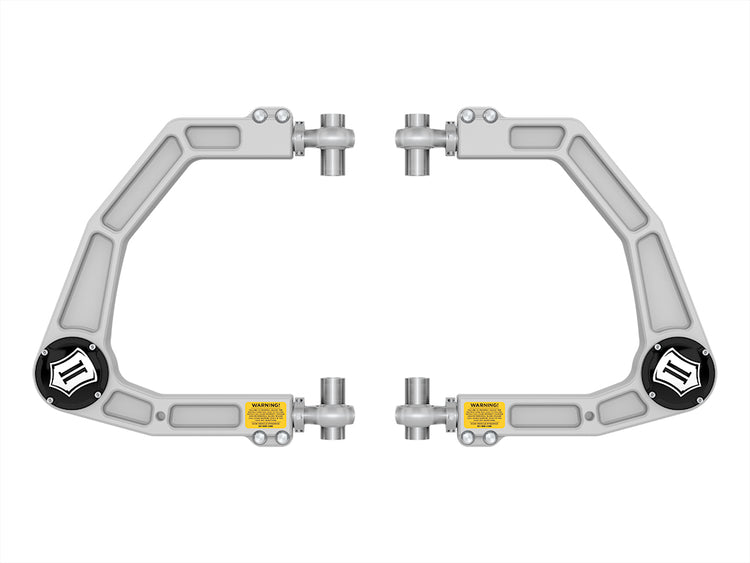

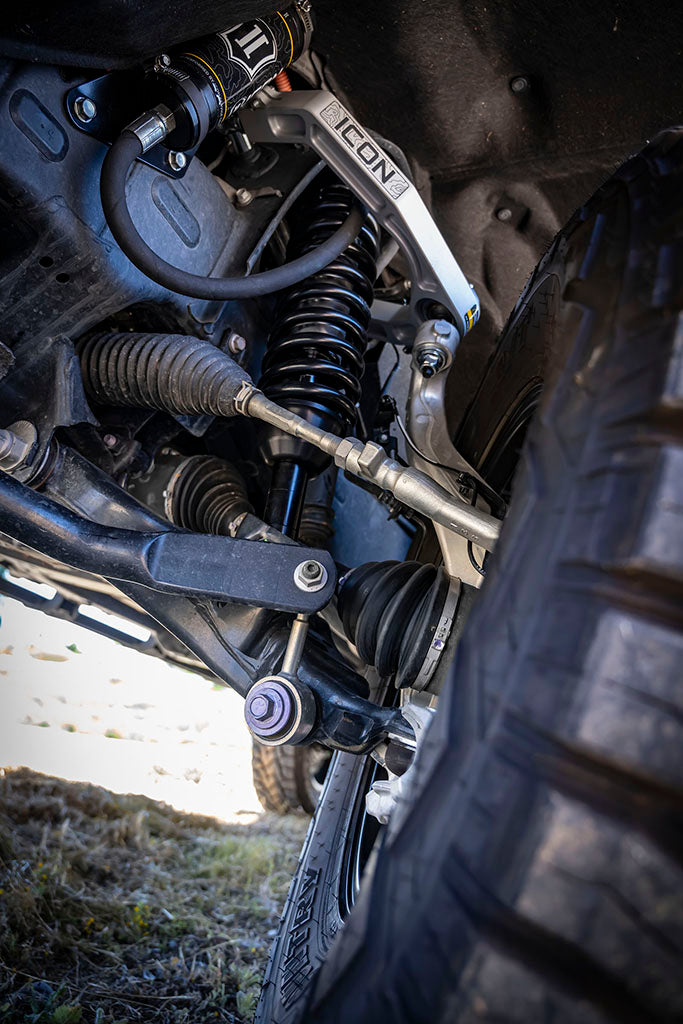

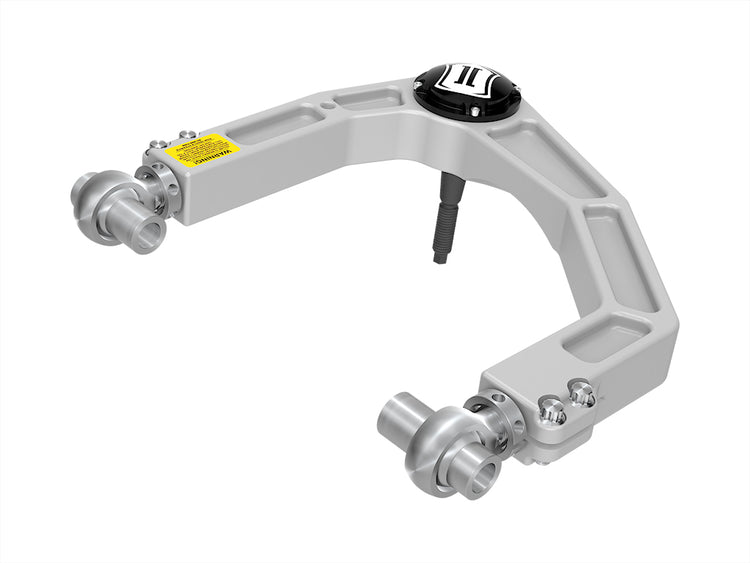

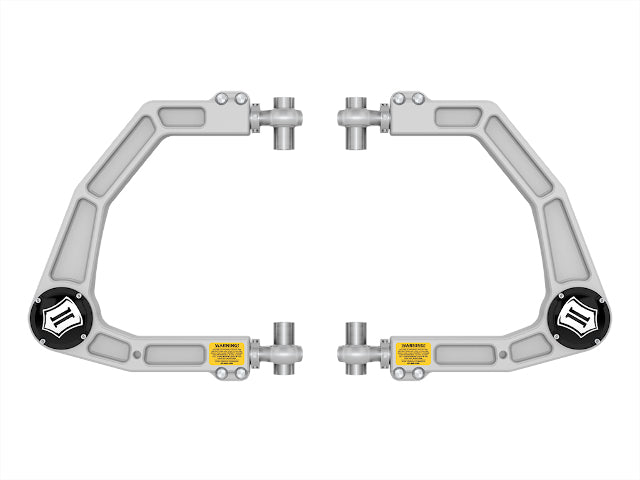

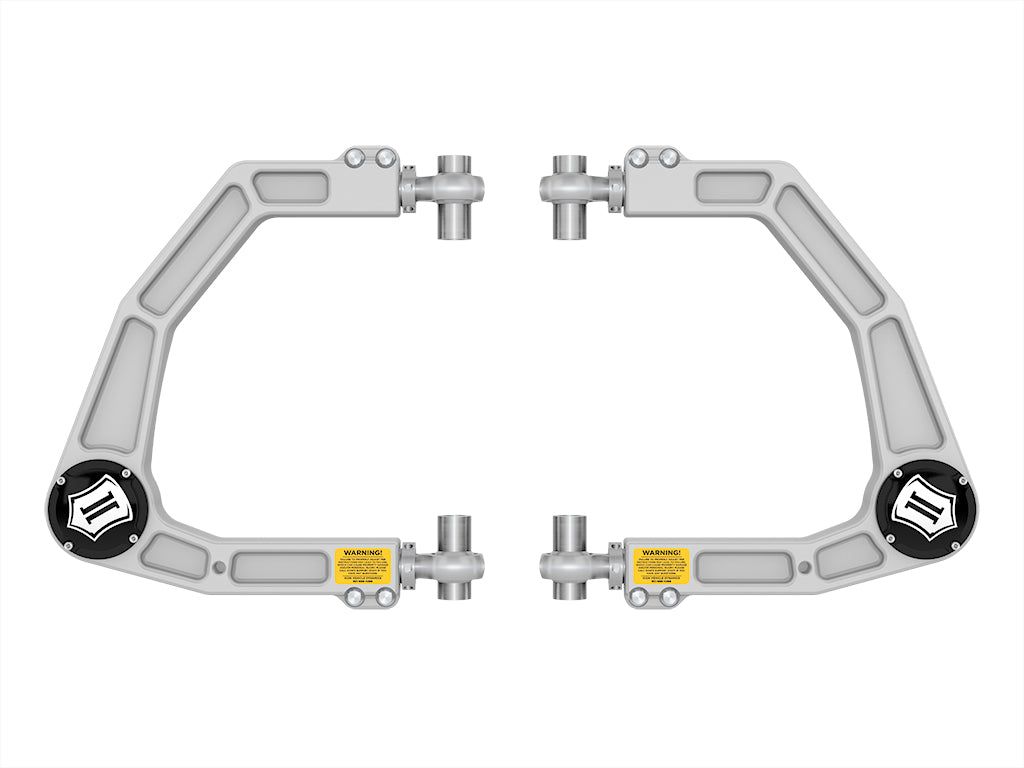

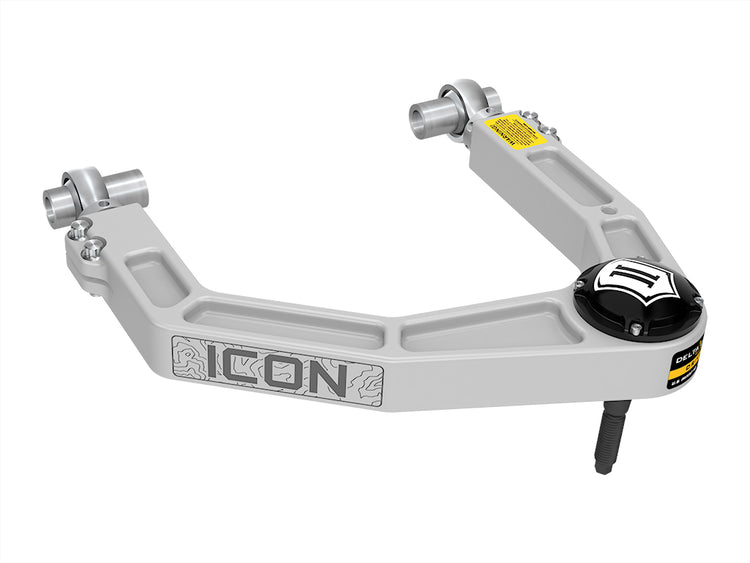

This ICON billet aluminum upper control arm kit is designed to improve the overall performance of the 2022-2025 Toyota Tundra/2023-2025 Toyota Sequoia with corrected front-end geometry, increased camber and caster adjustment, and improved suspension component clearance. Constructed of CNC machined 6061 billet aluminum utilizing a hybrid H-beam cross-section that is light-weight and resists bending forces better than tubular arms. Replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind. FK Rod End 3/4” heim joints provide precise and smooth function throughout the range of travel while ICON’s signature double adjuster sleeve allows for on-vehicle camber and caster adjustment. Included with all components and hardware necessary for a complete install, these billet UCAs are the perfect front end upgrade for the 2022-2025 Toyota Tundra or 2023-2025 Toyota Sequoia.
- CNC machined 6061 billet aluminum construction with satin anodized finish
- Corrects suspension geometry and allows for proper wheel alignment on Tundras with up to 3” of lift
- Quick, precise, on-vehicle adjustment for both caster and camber
- Delta Joint PRO allows maximum articulation without binding
- Delta Joint PRO is 100% serviceable and rebuildable
- FK Rod Ends at chassis pivots for strength and precision driving characteristics
- Built in O-ring sealed dust cover cap
CA Residents:
Prop 65 Warning
WARNING
This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Specifications
| Brand | ICON Vehicle Dynamics |
| UPC | 840103414362 |
| Proxy Number | 58561 |
| Shipping Width | 15.00 in |
| Shipping Length | 16.00 in |
| Shipping Depth | 6.00 in |
| Shipping Weight | 22.0000 LB |
Technical Notes
- Factory Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels (2-3.5" Lift): ICON Alloys - 17x8.5 with 5.75" Backspace / 25mm Offset
- Recommended Aftermarket Wheels (2-3.5" Lift): ICON Alloys - 18x9 with 6.00" Backspace / 25mm Offset
- Recommended Aftermarket Wheels (ICON 6" Lift): ICON Alloys - 20x9 with 5.625" Backspace / 16mm Offset
- Recommended Aftermarket Tires (2-3.5" Lift): 35" x 12.50"
- Recommended Aftermarket Tires (ICON 6" Lift): 37" x 12.50"
- TECH NOTE: Compatible with 2022-2025 Tundra equipped with 0-3.5" of front lift over stock
- TECH NOTE: Compatible with 2022-2024 Tundra with TRD Sport Package equipped with 0-4.5" of front lift over stock
- TECH NOTE: Compatible with 2022-2025 Tundra TRD Pro equipped with 0-1.75" of front lift over stock
- TECH NOTE: Compatible with ICON 2022-2024 Tundra 6" Lift Performance Suspension System but NOT compatible with 6" lift kits from other manufacturers
- TECH NOTE: Compatible with 2023-2024 Sequoia equipped with 0-4.5" of front lift over stock
