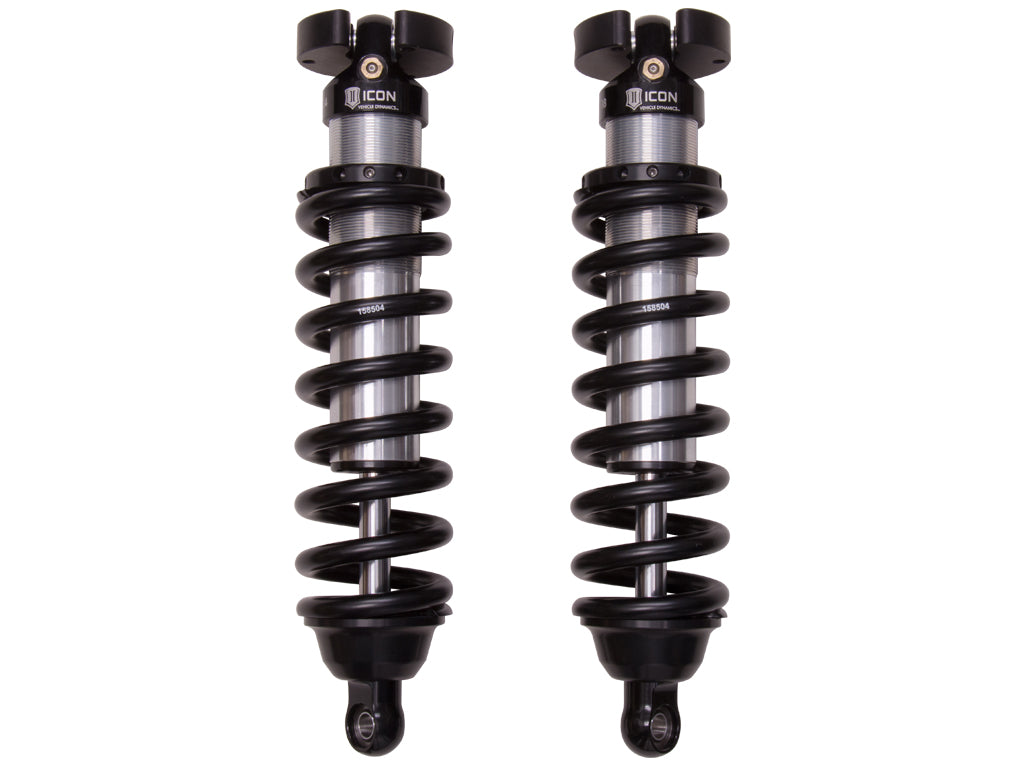

ICON 1996-2004 Toyota Tacoma/1996-2002 Toyota 4Runner, 0-3" Lift, Front, V.S. 2.5 Series Coilover Kit, Extended Travel, Internal Reservoir, 700 lbs/in Spring Rate
- ICON Vehicle Dynamics
- SKU:58615-700
$1,726.35
On backorder - will ship upon availability
Recommended add-ons
Decrease quantity for ICON 1996-2004 Toyota Tacoma/1996-2002 Toyota 4Runner, 0-3" Lift, Front, V.S. 2.5 Series Coilover Kit, Extended Travel, Internal Reservoir, 700 lbs/in Spring Rate
Increase quantity for ICON 1996-2004 Toyota Tacoma/1996-2002 Toyota 4Runner, 0-3" Lift, Front, V.S. 2.5 Series Coilover Kit, Extended Travel, Internal Reservoir, 700 lbs/in Spring Rate
ICON 1996-2004 Toyota Tacoma/1996-2002 Toyota 4Runner, 0-3" Lift, Front, V.S. 2.5 Series Coilover Kit, Extended Travel, Internal Reservoir, 700 lbs/in Spring Rate
$1,726.35
- Get It Fast with Same-day Dispatch
- Free Shipping over $199
- All Reman Parts Ship for $299
1-2 day delivery for most. Expedited shipping options available at checkout.
Have questions? We’re here to help.
Call us at 1-800-347-1188 or chat with our tech support.
Product details
ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 1996-2004 Toyota Tacoma or 1996-2002 Toyota 4Runner. These adjustable coilovers allow up to 0-3” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. Their extended travel length allows for more wheel travel but also requires the installation of aftermarket front upper control arms. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. To better support the weight of additional accessories such as aftermarket front bumpers and winches, these coilovers include ICON engineered coil springs with an increased, 700 lbs/in spring rate, allowing for taller ride heights with increased front end weight. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tacoma or Toyota 4Runner.
- Increased wheel travel and improved ride quality over stock
- Extended Travel length requires installation of aftermarket front upper control arms
- Vehicle specific tuned for superior shock damping and control
- Height-adjustable coilovers offer 0-3" of front lift height adjustment
- ICON engineered coil springs with 700 lbs/in spring rate are more ideal for heavier equipped front ends
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
- FK rod end bearings for extended longevity and minimal deflection
- Fully rebuildable and re-tunable
CA Residents:
Prop 65 Warning
WARNING
This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Specifications
| Brand | ICON Vehicle Dynamics |
| UPC | 840103403809 |
| Proxy Number | 58615 |
| Shipping Width | 13.00 in |
| Shipping Length | 26.00 in |
| Shipping Depth | 7.00 in |
| Shipping Weight | 45.0000 LB |
Technical Notes
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.00” Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.00” Backspace / 0mm Offset
- Recommended Aftermarket Tires (Tacoma): 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
- Recommended Aftermarket Tires (4Runner): 33" x 11.25" (Larger tires may fit but fender trimming and modifications will be required.)
- APPLICATION NOTE #18: These systems are to be used with aftermarket upper control arms only
- APPLICATION NOTE #55: Shocks are fully serviceable. Coilover heights indicated are for a stock equipped vehicle
- APPLICATION NOTE #111: Bump stop spacer kit available that can be installed to increase threads showing beyond max recommendation
- APPLICATION NOTE #185: Will not fit 2WD Tacoma with 5 wheel lug studs
- TECH NOTE: 700lb/in spring rate only recommended for trucks with additional weight added to front end. See ICON Help Center for information.
