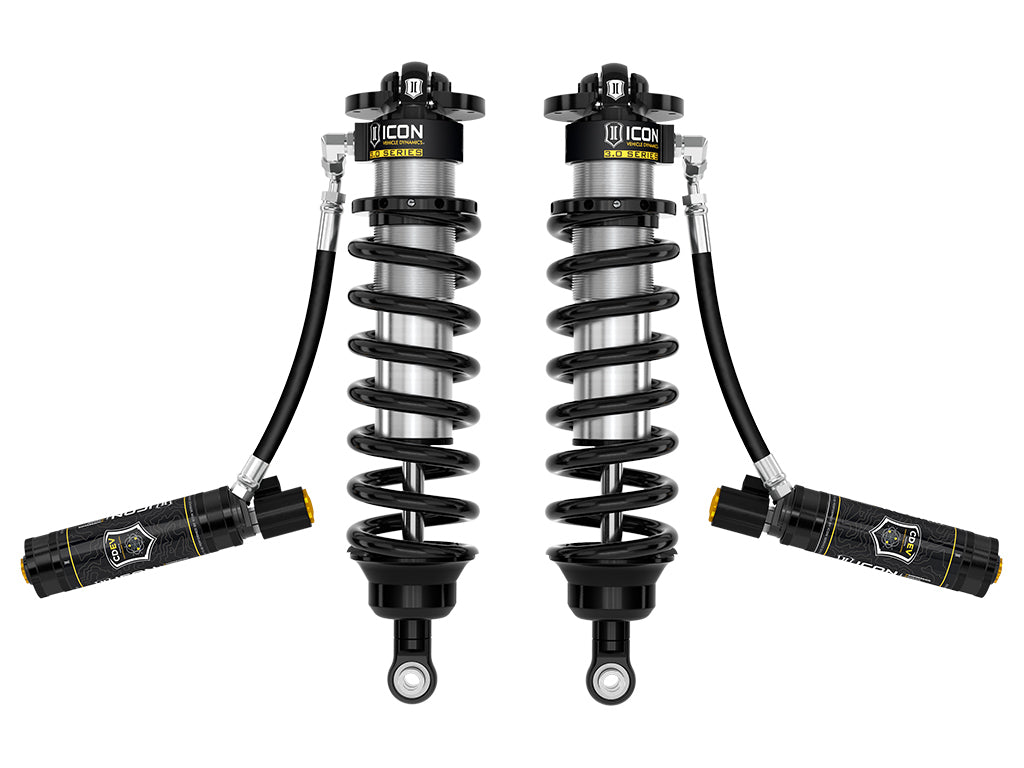

ICON 2022-2025 Toyota Tundra 1.25-3.25" Lift/2023-2025 Sequoia 3-4.25" Lift, V.S. 3.0 Series Front Coilover Kit, Remote Reservoir w/ CDEV, Pair
- ICON Vehicle Dynamics
- SKU:58775E
$3,951.95$4,149.55
4% off
Low stock: 2 left
Recommended add-ons
Decrease quantity for ICON 2022-2025 Toyota Tundra 1.25-3.25" Lift/2023-2025 Sequoia 3-4.25" Lift, V.S. 3.0 Series Front Coilover Kit, Remote Reservoir w/ CDEV, Pair
Increase quantity for ICON 2022-2025 Toyota Tundra 1.25-3.25" Lift/2023-2025 Sequoia 3-4.25" Lift, V.S. 3.0 Series Front Coilover Kit, Remote Reservoir w/ CDEV, Pair
ICON 2022-2025 Toyota Tundra 1.25-3.25" Lift/2023-2025 Sequoia 3-4.25" Lift, V.S. 3.0 Series Front Coilover Kit, Remote Reservoir w/ CDEV, Pair
$3,951.95$4,149.55
4% off
- Get It Fast with Same-day Dispatch
- Free Shipping over $99
1-2 day delivery for most. Expedited shipping options available at checkout.
Have questions? We’re here to help.
Call us at 1-800-347-1188 or chat with our tech support.
Product details
ICON’s Vehicle-specific shock length and valving along with the larger 3.0” shock body and increased piston area over stock yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road.
- 40% increase in front wheel travel over stock
- Adjustable up to 1.25-3.25" of front lift height over stock on Tundra or 3-4.25" of front lift on Sequoia
- Vehicle specific design and tuning for superior shock damping and control
- 3.0” Body diameter for increased oil volume and larger piston area

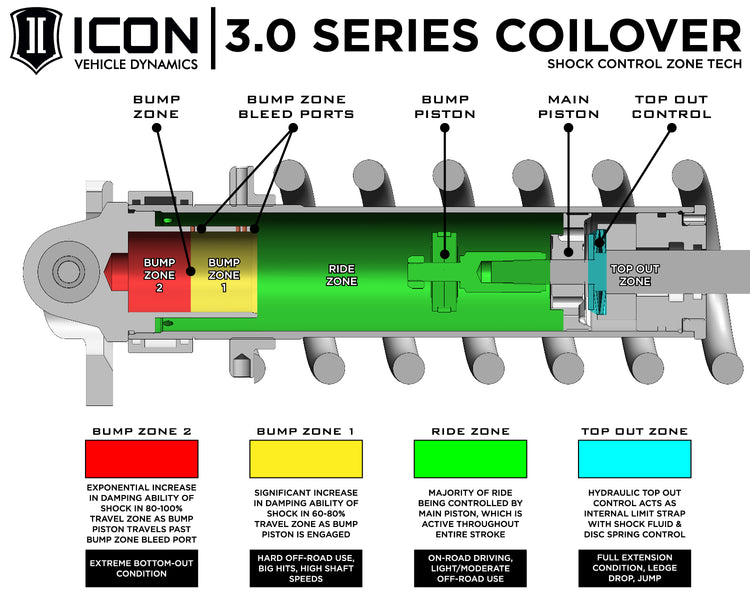

- ICON’s multi-stage, tunable hydraulic “Bump Zone” exponentially increases bottom-out resistance in the last 40% of compression travel

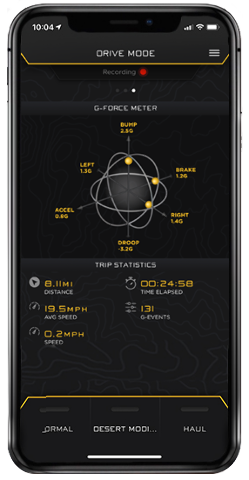

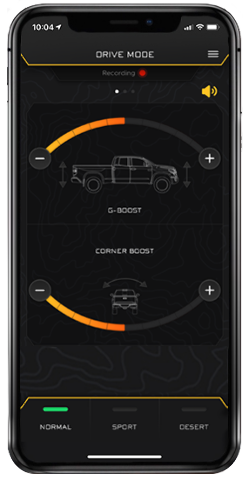

- ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
- Fully Rebuildable and Re-tunable
CA Residents:
Prop 65 Warning
WARNING
This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Specifications
| Brand | ICON Vehicle Dynamics |
| UPC | 840103421292 |
| Shipping Width | 13.00 in |
| Shipping Length | 31.00 in |
| Shipping Depth | 8.00 in |
| Shipping Weight | 81.0000 LB |
Technical Notes
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75" Backspace / 25mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9" with 6.00" Backspace / 25mm Offset
- Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required)
- APPLICATION NOTE #55: Shocks Are Fully Serviceable. Lift Heights Indicated Are For A Stock Equipped Vehicle.
- APPLICATION NOTE #85: Advertised Lift Height Ranges Are For A Stock Equipped Vehicle. Increasing Weight Of Vehicle Due To Accessories Will Alter Lift Range.
- APPLICATION NOTE #149: For 4WD Models Without TRD Off-Road Package ICON Recommends Using ICON Diff Drop (Part# 55156) Or Using Toyota TRD Axles (Part# 434200C020 Driver / 434100C020 Pass). Failure To Do So Could Result In Front Axle Damage. Not Required For TRD Pro.
- APPLICATION NOTE #152: ICON Delta Joint Pro upper control arms required
- APPLICATION NOTE #153: Not compatible with Adaptive Variable Suspension (AVS) equipped vehicles
- APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
- APPLICATION NOTE #171: If equipped with TRD aluminum skid plate part # 55164 is also required

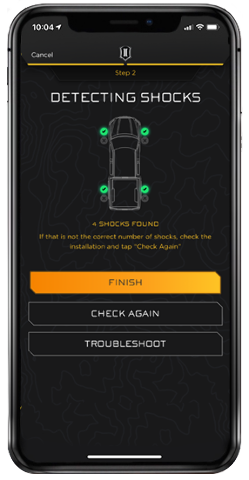

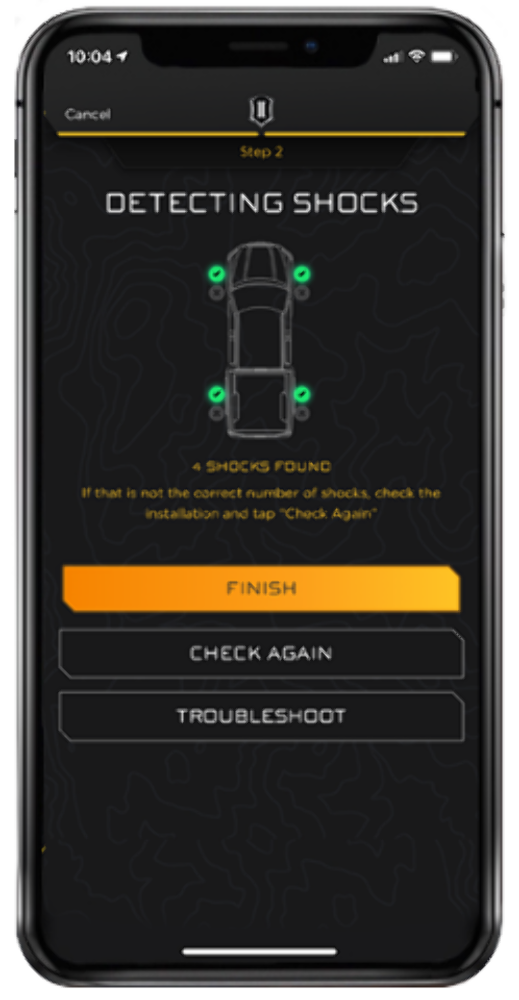

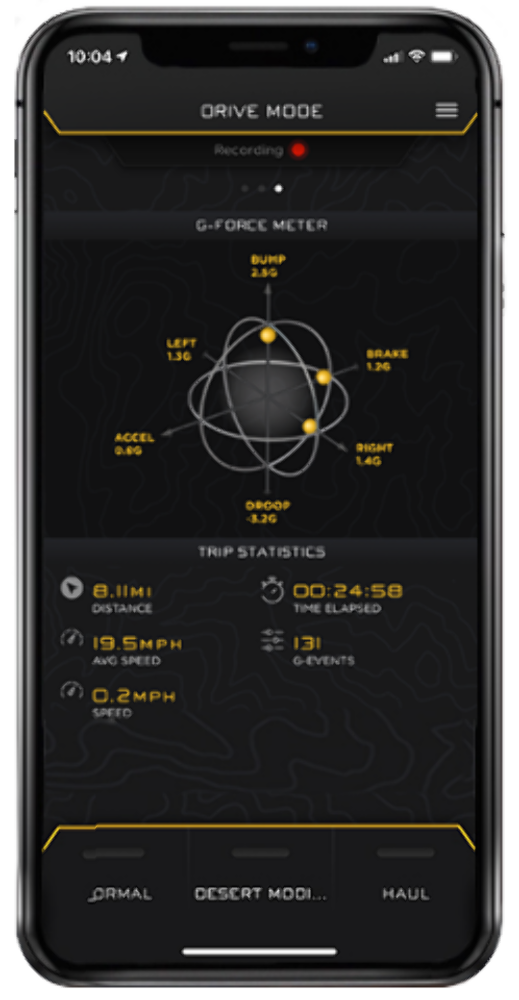

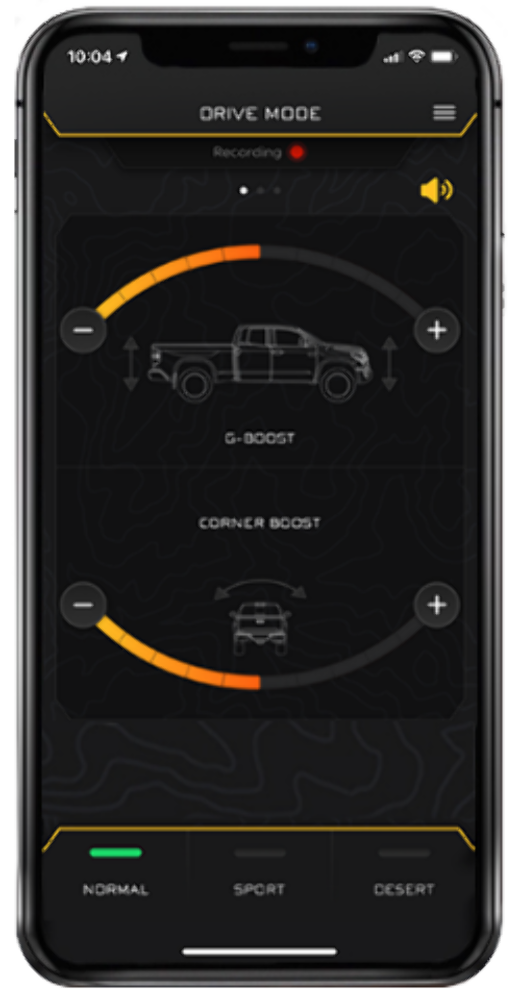

- APPLICATION NOTE #198: An iOS operated device is required to run ICON Intelligent Control app
- APPLICATION NOTE #203: Also requires installation of applicable IIC kit and CDEV rear shocks
- TECH NOTE: Most Tundra sub-models equipped with i-Force gasoline engine will have front lift height range of 1.25-3.25" over stock
- TECH NOTE: Most Tundra sub-models equipped with i-Force MAX hybrid engine will have front lift height range of .75-2.75" over stock
- TECH NOTE: Tundra SR5 equipped with TRD Sport Suspension package will have lift height range of 2.25-4.25" over stock
- TECH NOTE: Tundra TRD Pro will have front lift height range of 0-1.5" over stock
- TECH NOTE: Most Sequoia submodels will have front lift height range of 3-4.5" over stock. Submodels equipped with TRD Off-Road Package or TRD Pro will have front lift height range of 1-2.5" over stock.
- TECH NOTE: Tundra lift heights above 2.25" require sway bar drop bracket kit part number 55154. Required for all lift heights on Tundra TRD Pro and Sequoia. When installing 55154 on model equipped with TRD Off-Road package or TRD Pro, part number 55164 is also required.
