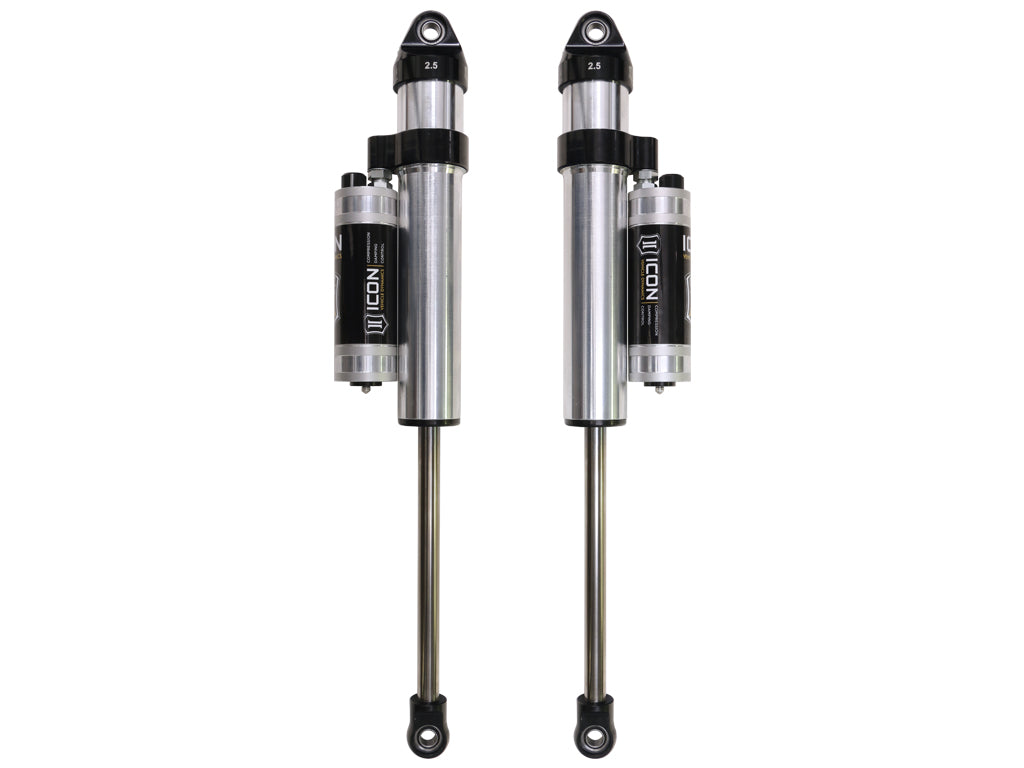

ICON 2003-2024 Toyota 4Runner/2005-2023 Toyota Tacoma/2007-2014 Toyota FJ Cruiser, Front, V.S. 2.5 Aluminum Series Shock Absorbers, Long Travel Secondary Shocks, Piggyback Reservoir w/ CDCV, Pair
- ICON Vehicle Dynamics
- SKU:59701CP-CB
$1,634.95$1,716.69
4% off
On backorder - will ship upon availability
Recommended add-ons
Decrease quantity for ICON 2003-2024 Toyota 4Runner/2005-2023 Toyota Tacoma/2007-2014 Toyota FJ Cruiser, Front, V.S. 2.5 Aluminum Series Shock Absorbers, Long Travel Secondary Shocks, Piggyback Reservoir w/ CDCV, Pair
Increase quantity for ICON 2003-2024 Toyota 4Runner/2005-2023 Toyota Tacoma/2007-2014 Toyota FJ Cruiser, Front, V.S. 2.5 Aluminum Series Shock Absorbers, Long Travel Secondary Shocks, Piggyback Reservoir w/ CDCV, Pair
ICON 2003-2024 Toyota 4Runner/2005-2023 Toyota Tacoma/2007-2014 Toyota FJ Cruiser, Front, V.S. 2.5 Aluminum Series Shock Absorbers, Long Travel Secondary Shocks, Piggyback Reservoir w/ CDCV, Pair
$1,634.95$1,716.69
4% off
- Get It Fast with Same-day Dispatch
- Free Shipping over $199
- All Reman Parts Ship for $299
1-2 day delivery for most. Expedited shipping options available at checkout.
Have questions? We’re here to help.
Call us at 1-800-347-1188 or chat with our tech support.
Product details
ICON Vehicle Specific (V.S.) 2.5 Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges.
- ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
- ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
- Piggyback reservoir design improves heat dissipation to reduce shock fade during prolonged use
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- Nitrogen charged monotube design with remote reservoir
- One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- 7/8” diameter induction hardened, chrome plated shock shaft
- PTFE lined spherical bearings and application specific mounting hardw
- 6061 aircraft grade aluminum CNC machined components
- One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
- 100% Rebuildable
- 100% Revalveable
CA Residents:
Prop 65 Warning
WARNING
This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Specifications
| Brand | ICON Vehicle Dynamics |
| UPC | 840103404608 |
| Proxy Number | 59701 |
| Shipping Width | 10.00 in |
| Shipping Length | 39.00 in |
| Shipping Depth | 9.00 in |
| Shipping Weight | 20.0000 LB |
Technical Notes
- APPLICATION NOTE #255: Fits common aftermarket long travel kits with secondary shock compatibility and matching secondary shock hoop
- APPLICATION NOTE #256: Will not fit ICON S2 Secondary Shock System or any other stock width control arm kits with secondary shock compatibility
