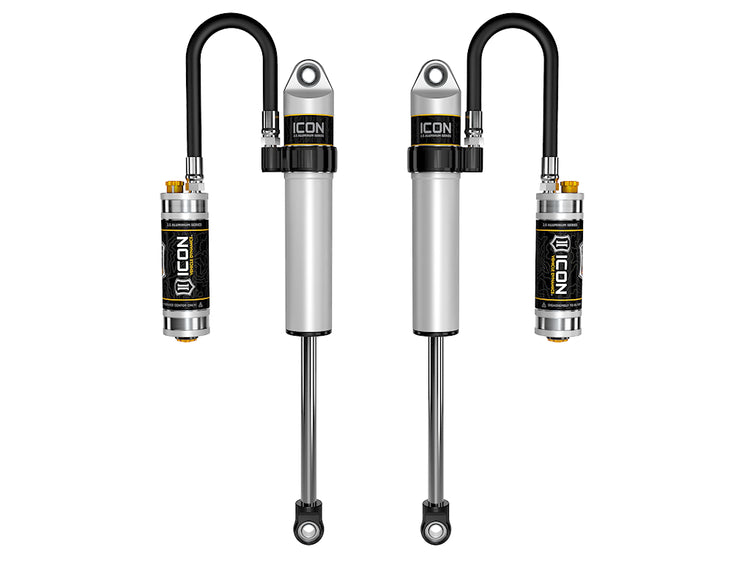

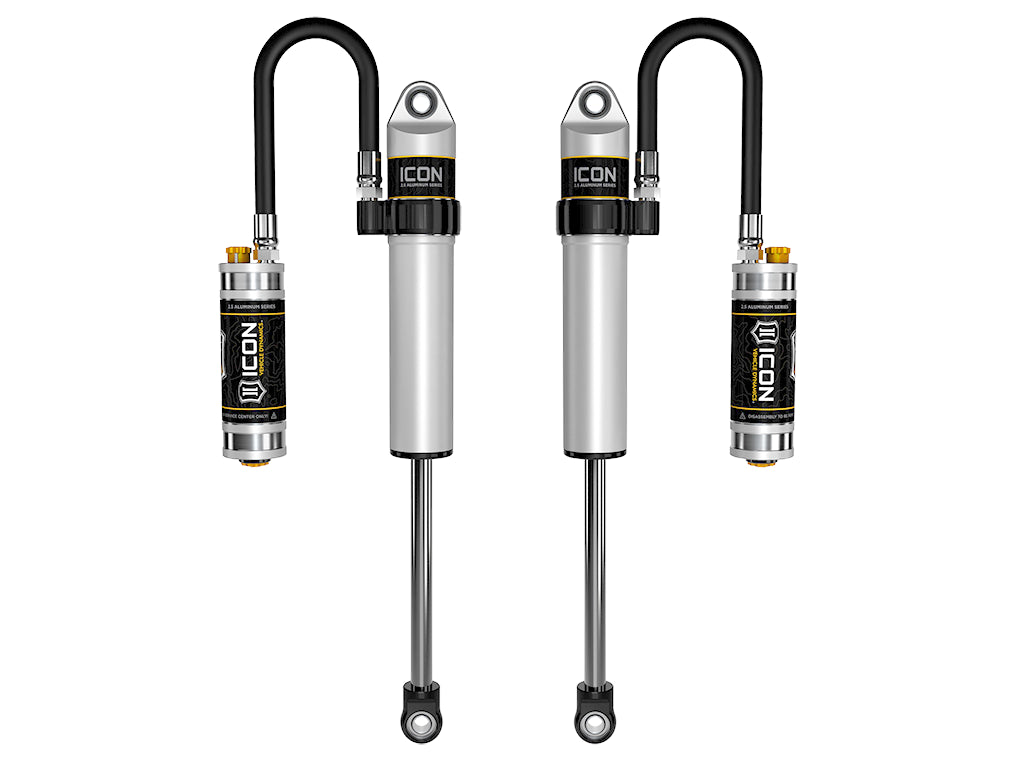

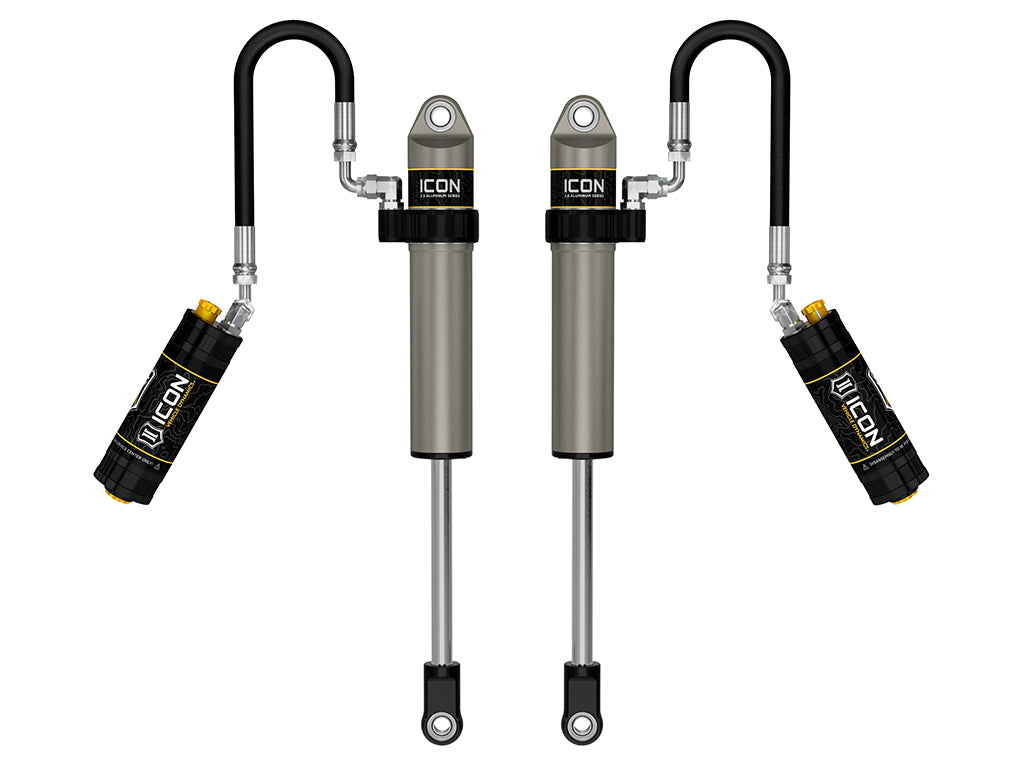

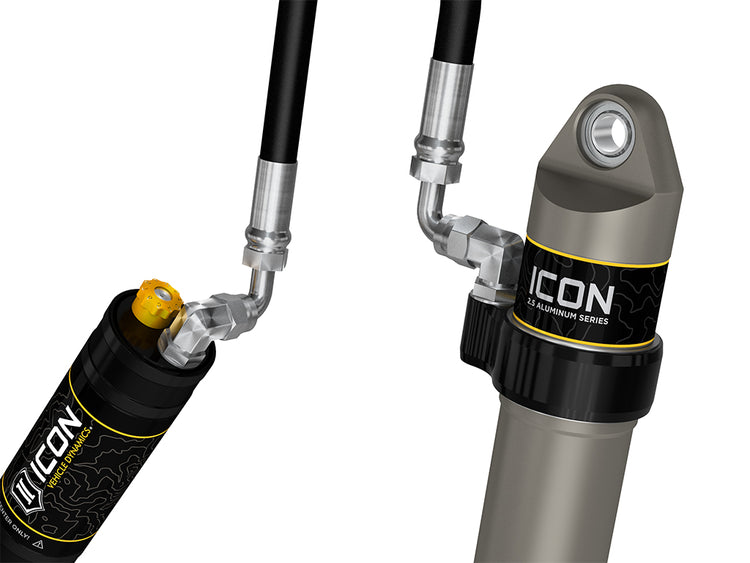

ICON 2005-2023 Toyota Tacoma/2003-2024 4Runner/2007-2014 FJ Cruiser/2003-2009 Lexus GX470, Front, V.S. 2.5 Aluminum Series Shock Absorbers, S2 Secondary Shocks, Remote Reservoir w/ CDCV, Pair
- ICON Vehicle Dynamics
- SKU:59706CP
$1,307.96$1,716.69
23% off
Low stock: 5 left
Recommended add-ons
Decrease quantity for ICON 2005-2023 Toyota Tacoma/2003-2024 4Runner/2007-2014 FJ Cruiser/2003-2009 Lexus GX470, Front, V.S. 2.5 Aluminum Series Shock Absorbers, S2 Secondary Shocks, Remote Reservoir w/ CDCV, Pair
Increase quantity for ICON 2005-2023 Toyota Tacoma/2003-2024 4Runner/2007-2014 FJ Cruiser/2003-2009 Lexus GX470, Front, V.S. 2.5 Aluminum Series Shock Absorbers, S2 Secondary Shocks, Remote Reservoir w/ CDCV, Pair
ICON 2005-2023 Toyota Tacoma/2003-2024 4Runner/2007-2014 FJ Cruiser/2003-2009 Lexus GX470, Front, V.S. 2.5 Aluminum Series Shock Absorbers, S2 Secondary Shocks, Remote Reservoir w/ CDCV, Pair
$1,307.96$1,716.69
23% off
- Get It Fast with Same-day Dispatch
- Free Shipping over $199
- All Reman Parts Ship for $299
1-2 day delivery for most. Expedited shipping options available at checkout.
Have questions? We’re here to help.
Call us at 1-800-347-1188 or chat with our tech support.
Product details
ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges.
- Nitrogen charged monotube design with remote reservoir
- Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
- ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
- 6061 aircraft grade aluminum CNC machined components
- One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- 7/8” diameter induction hardened, chrome plated shock shaft
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
- One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
- PTFE lined spherical bearings and application specific mounting hardware
- 100% Rebuildable
- 100% Revalveable
CA Residents:
Prop 65 Warning
WARNING
This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Specifications
| Brand | ICON Vehicle Dynamics |
| UPC | 840103404691 |
| Proxy Number | 59706 |
| Shipping Width | 15.00 in |
| Shipping Length | 30.00 in |
| Shipping Depth | 9.00 in |
| Shipping Weight | 28.0000 LB |
Technical Notes
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 4.75” Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 5.00” Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 20x9 with 5.00” Backspace / 0mm Offset
- Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
- APPLICATION NOTE #55: Shocks Are Fully Serviceable. Lift Heights Indicated Are For A Stock Equipped Vehicle.
- APPLICATION NOTE #84: Does not fit KDSS equipped vehicles
- APPLICATION NOTE #185: Will not fit 2WD Tacoma with 5 wheel lug studs
- APPLICATION NOTE #250: Also requires ICON S2 Secondary Shock Hoop Kit and applicable LCA Skid Plate Kit or ICON LCA Kit to complete system
- APPLICATION NOTE #251: May not be compatible with other manufacturer's secondary shock hoops or LCA kits
