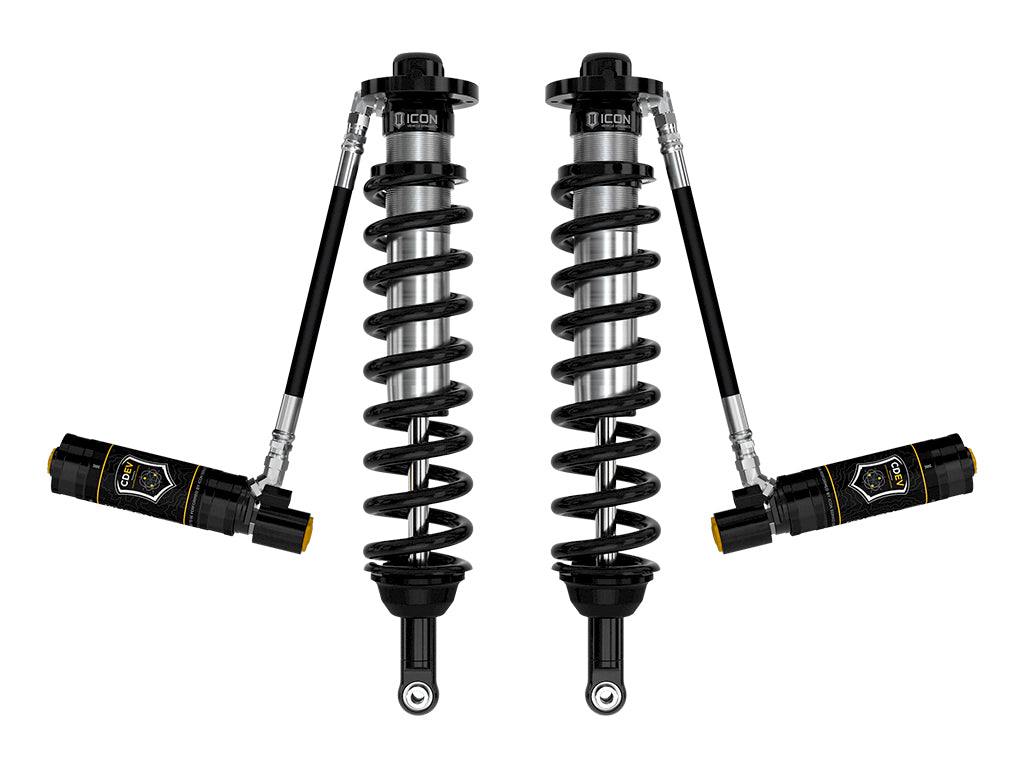

ICON 2005-2023 Toyota Tacoma/2010-2024 Toyota 4Runner, Front, V.S. 2.5 Series Coilover Kit, Long Travel, Remote Reservoir w/ CDEV, Pair
- ICON Vehicle Dynamics
- SKU:59730E-CB
$2,599.95
Low stock: 4 left
Recommended add-ons
Decrease quantity for ICON 2005-2023 Toyota Tacoma/2010-2024 Toyota 4Runner, Front, V.S. 2.5 Series Coilover Kit, Long Travel, Remote Reservoir w/ CDEV, Pair
Increase quantity for ICON 2005-2023 Toyota Tacoma/2010-2024 Toyota 4Runner, Front, V.S. 2.5 Series Coilover Kit, Long Travel, Remote Reservoir w/ CDEV, Pair
ICON 2005-2023 Toyota Tacoma/2010-2024 Toyota 4Runner, Front, V.S. 2.5 Series Coilover Kit, Long Travel, Remote Reservoir w/ CDEV, Pair
$2,599.95
- Get It Fast with Same-day Dispatch
- Free Shipping over $199
- All Reman Parts Ship for $299
1-2 day delivery for most. Expedited shipping options available at checkout.
Have questions? We’re here to help.
Call us at 1-800-347-1188 or chat with our tech support.
Product details
The ICON Vehicle Dynamics V.S. Series 2.5” CDCV remote reservoir coilover shocks an incredible upgrade for the front end of the 2005-2023 Toyota Tacoma or 2010-2024 4Runner equipped with long travel front suspension. ICON’s Vehicle-specific valving and custom, long travel length provide a sport tuned feel on and off-road while offering 0-3.5" of lift height adjustability on most models or 0-2.75” of front lift height adjustment on 2016-2023 Tacomas. ICON's larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. The ICON CDE Valve upgrade is also included for those desiring an easy way to tune the ride electronically from inside the vehicle.
Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly.
Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly.
- ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
- Vehicle specific tuned for superior shock damping and control
- Custom length for pairing with many common long travel front suspension kits
- Adjustable ride height for customization of vehicle stance
- ICON engineered Eibach Springs
- External reservoirs to attain cooler operating temperatures during extended off-road use
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated shock bodies with 7/8" induction hardened, chrome plated shafts
- FK rod end bearings for extended longevity and minimal deflection
- Fully rebuildable and re-tunable
CA Residents:
Prop 65 Warning
WARNING
This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Specifications
| Brand | ICON Vehicle Dynamics |
| UPC | 840103421193 |
| Proxy Number | 59730 |
| Shipping Width | 12.00 in |
| Shipping Length | 37.00 in |
| Shipping Depth | 8.00 in |
| Shipping Weight | 62.0000 LB |
Technical Notes
- APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
- APPLICATION NOTE #185: Will not fit 2WD Tacoma with 5 wheel lug studs
- APPLICATION NOTE #198: An iOS operated device is required to run ICON Intelligent Control app
- APPLICATION NOTE #203: Also requires installation of applicable IIC kit and CDEV rear shocks
- APPLICATION NOTE #258: Fits common aftermarket front long travel kits. Will not fit stock width control arms.
