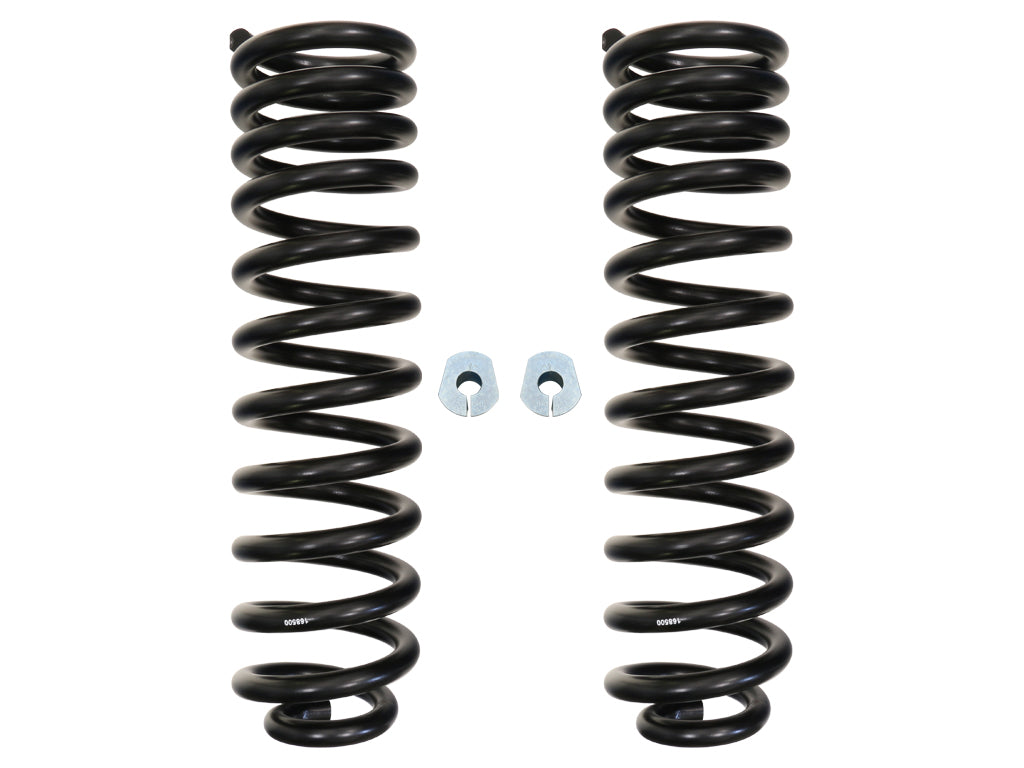

ICON 2005-19 Ford F250/F350 SD, 2.5" Lift, Front, Dual Rate Coil Spring Kit
- ICON Vehicle Dynamics
- SKU:62510
$479.55$503.52
4% off
214 in stock
Recommended add-ons
ICON 2005-19 Ford F250/F350 SD, 2.5" Lift, Front, Dual Rate Coil Spring Kit
$479.55$503.52
4% off
- Get It Fast with Same-day Dispatch
- Free Shipping over $199
- All Reman Parts Ship for $299
1-2 day delivery for most. Expedited shipping options available at checkout.
Have questions? We’re here to help.
Call us at 1-800-347-1188 or chat with our tech support.
Product details

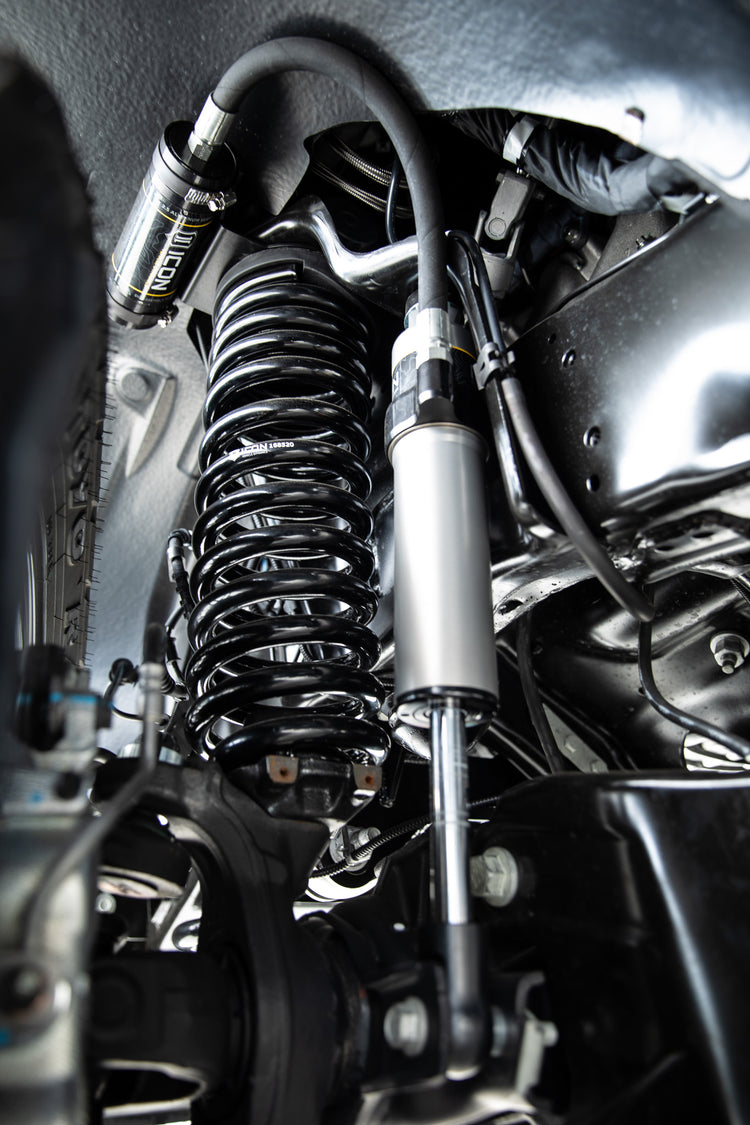

The ICON Vehicle Dynamics 2005-2019 Ford F-250 & F-350 Super Duty 2.5" coil springs are designed for drivers demanding the ultimate in performance and ride quality, while allowing for increased wheel travel (when used with ICON shocks) and the fitment of larger tires. The ICON Ford Super Duty coil springs provide 2.5" of lift height and feature a dual rate design. The dual rate design allows for a softer initial rate for superb on road comfort and a firmer secondary rate that increases during compression for excellent bottoming resistance and off-road performance. Caster correction cams are also included to ensure proper caster angle with the new, taller ride height. Like all ICON coil springs, they feature a lifetime guarantee against sagging/breakage to produce confidence in knowing that you have the best suspension products available for the 2005-2019 Ford F-250 & F-350 Super Duty.
- 2.5" lift height
- Dual rate coil springs improve on and off-road ride quality over stock
- Dual-stage, semi-gloss powder coat offers excellent corrosion resistance
- Caster cam kit included for ideal caster angles with ride height increase
- 100% bolt-on system makes for an easy install
- Lifetime warranty against sagging/breakage
CA Residents:
Prop 65 Warning
WARNING
This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Specifications
| Brand | ICON Vehicle Dynamics |
| UPC | 840103405483 |
| Proxy Number | 62510 |
| Shipping Width | 12.00 in |
| Shipping Length | 27.00 in |
| Shipping Depth | 6.00 in |
| Shipping Weight | 64.0000 LB |
Technical Notes
- Factory Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
- Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
- TECH NOTE: 2005-2016 F-250s require 4” rear blocks with 15” U-bolt kit to sit level with 2.5” lifted front. ICON block kit part # 194275 and U-bolt kit part # 37003 (2005-2010 models) or part # 67003 (2011-2016 models) are recommended.
- TECH NOTE: Springs rates optimized for use with trucks with diesel engines
