ICON 2023-2026 Ford F-250/F-350 Super Duty 4WD, Diesel, 2.5" Lift, Front, Dual Rate Coil Spring Kit
- ICON Vehicle Dynamics
- SKU:62516
$419.95
On backorder - will ship upon availability
Recommended add-ons
ICON 2023-2026 Ford F-250/F-350 Super Duty 4WD, Diesel, 2.5" Lift, Front, Dual Rate Coil Spring Kit
$419.95
- Get It Fast with Same-day Dispatch
- Free Shipping over $199
- All Reman Parts Ship for $299
1-2 day delivery for most. Expedited shipping options available at checkout.
Have questions? We’re here to help.
Call us at 1-800-347-1188 or chat with our tech support.
Product details

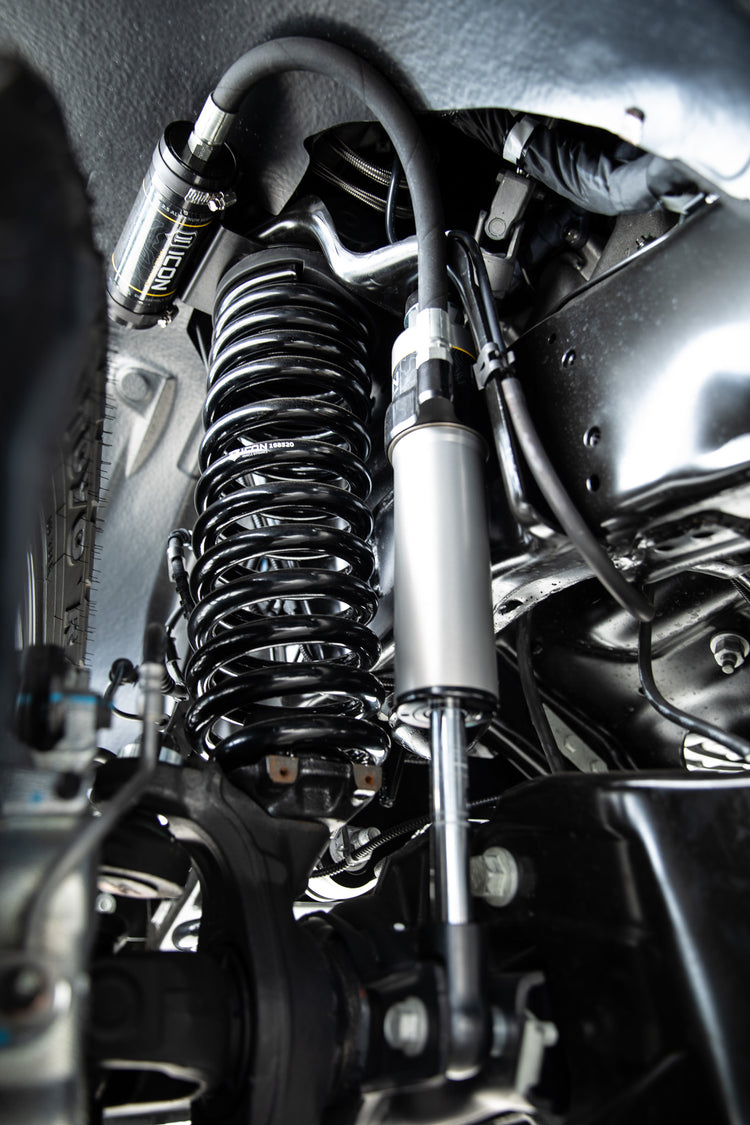

The ICON Vehicle Dynamics 2023-2026 Ford F-250 and F-350 Super Duty 2.5" coil springs are designed for drivers demanding the ultimate in performance and ride quality, while allowing for increased wheel travel (when used with ICON shocks) and the fitment of larger tires. The ICON Ford Super Duty coil springs provide 2.5" of lift height and feature a dual rate design optimized for use with trucks equipped with diesel engines. The dual rate design allows for a softer initial rate for superb on-road comfort and a firmer secondary rate that increases during compression for excellent bottoming resistance and off-road performance. Like all ICON coil springs, they feature a lifetime guarantee against sagging/breakage to produce confidence in knowing that you have the best suspension products available for the 2023-2026 Ford Super Duty.
- 2.5" lift height
- Dual rate coil springs improve on and off-road ride quality over stock
- Dual-stage, semi-gloss powder coat offers excellent corrosion resistance
- 100% bolt-on system makes for an easy install
- Lifetime warranty against sagging/breakage
CA Residents:
Prop 65 Warning
WARNING
This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Specifications
| Brand | ICON Vehicle Dynamics |
| UPC | 840103431833 |
| Proxy Number | 62516 |
| Shipping Width | 12.00 in |
| Shipping Length | 27.00 in |
| Shipping Depth | 6.00 in |
| Shipping Weight | 61.0000 LB |
Technical Notes
- Factory Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
- Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
- APPLICATION NOTE #1: Only fits 4WD models
- APPLICATION NOTE #6: Springs are rated for diesel engines only
- APPLICATION NOTE #30: An adjustable track bar may be needed to realign the axle from left to right, or to add additional strength
- APPLICATION NOTE #115: Lift heights based on 4WD crew cab diesel
- APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
- APPLICATION NOTE #462: Brake line kit (Part # 61111) is optional for end users who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install)
- APPLICATION NOTE #494: ICON track bar bracket part # 64039 is also recommended to correct bump steer geometry
- APPLICATION NOTE #519: Models equipped with Tremor package will have front lift height of 1.5" over stock
- APPLICATION NOTE #520: Not compatible with F-450 or F-550
