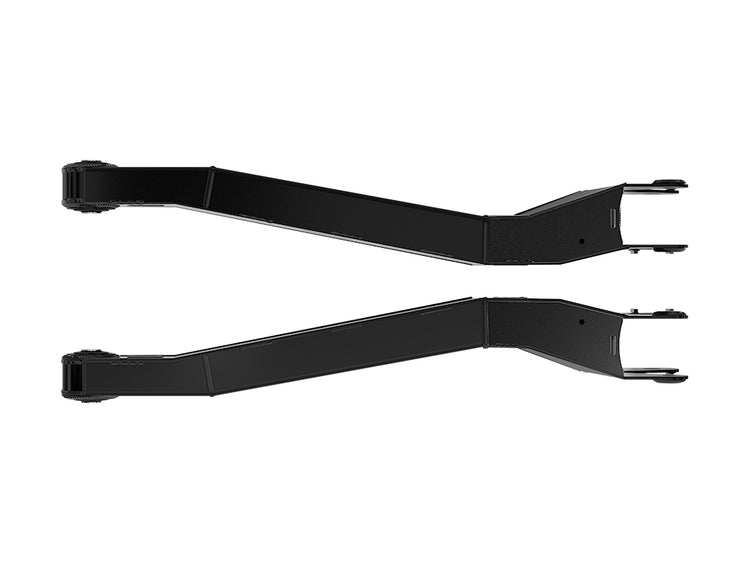

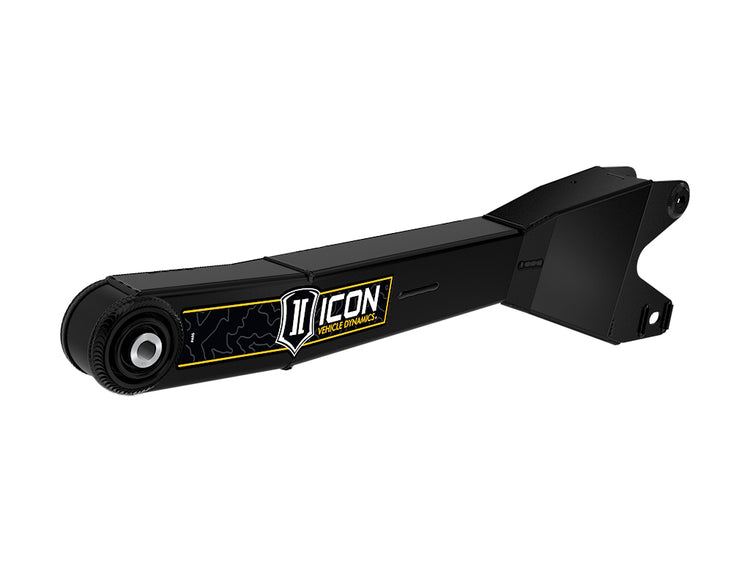

ICON 2023-2025 Ford F-250/F-350/F-450 Super Duty 4WD, Radius Arm System, 2-5.5" Lift
- ICON Vehicle Dynamics
- SKU:64043
$1,700.35
On backorder - will ship upon availability
Recommended add-ons
ICON 2023-2025 Ford F-250/F-350/F-450 Super Duty 4WD, Radius Arm System, 2-5.5" Lift
$1,700.35
- Get It Fast with Same-day Dispatch
- Free Shipping over $199
- All Reman Parts Ship for $299
1-2 day delivery for most. Expedited shipping options available at checkout.
Have questions? We’re here to help.
Call us at 1-800-347-1188 or chat with our tech support.
Product details

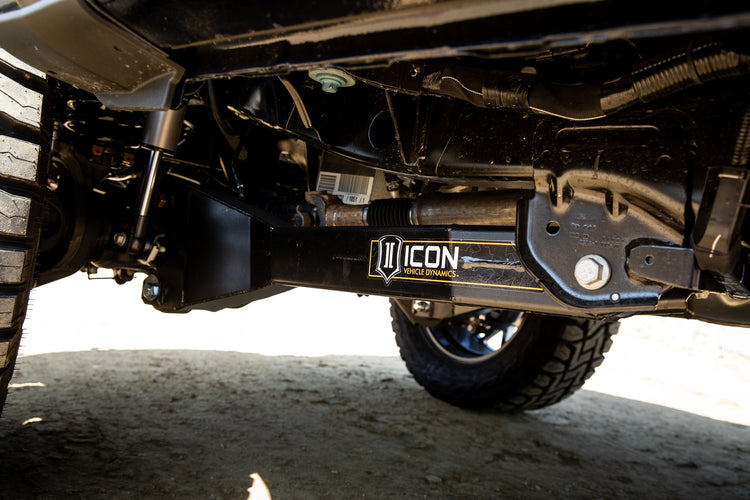

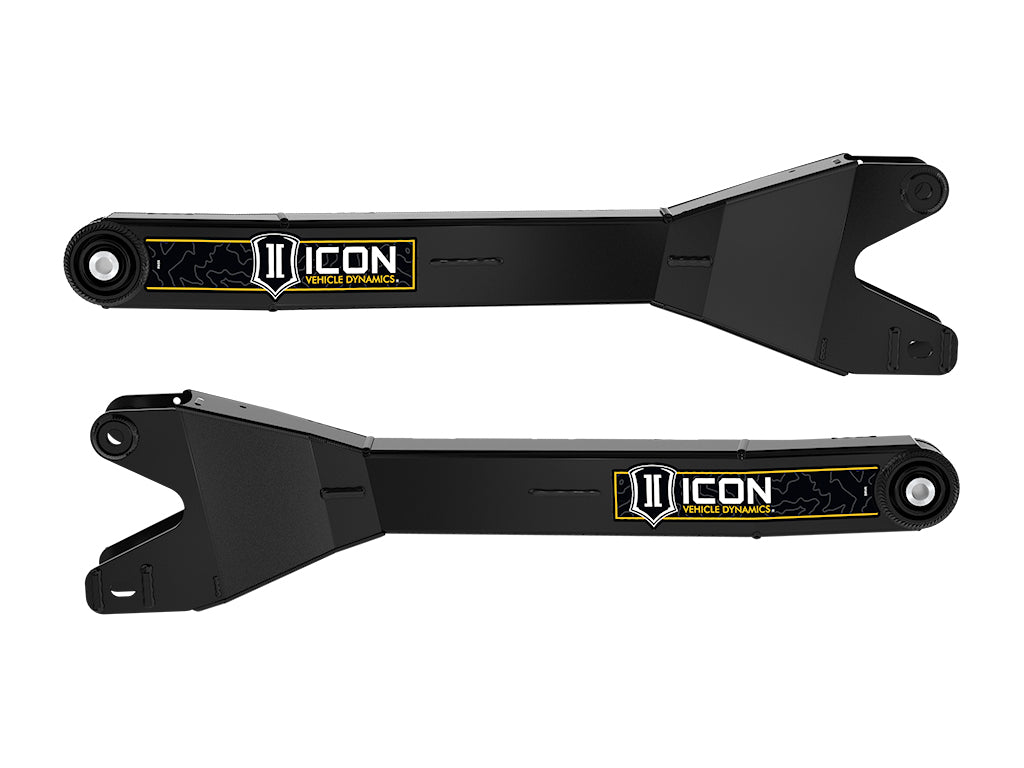

The ICON Vehicle Dynamics Forrd 23-25 F-250 and F-350 Super Duty 4WD Radius Arm System is designed with adjustable caster cams allowing fine tuning of caster angle for optimum drivability. Their added caster allows for use with 2-6" of front lift over stock with the radius arm installed in the factory pivot, eliminating the need for caster bushings or radius arm drop brackets. They feature a sealed pivot bushing that minimizes road feedback and ensures a long life and quiet operation. Additionally, their fabricated, fully boxed design ensures strength and utilizes a profile optimized for tire clearance at full steering lock, making a 37” tall tire clear without coming in contact with the radius arm. For trucks equipped with OnBoard Scales ICON also offers sensor linkage brackets for specific height ranges that allows attachment of the OE sensor linkages to the ICON radius arm, ensuring proper function of that system.
- Fully boxed design
- Built in caster adjustment for optimized return to center
- Ample caster range for 2-6" of front lift over stock
- Replaceable sealed pivot bushing provides maintenance free operation
- CNC machined and laser cut steel components
- Semi-gloss black powder coat finish
- Ability to have a 5.5” backspace wheel with 37” tires without contact with the arm at steering lock
CA Residents:
Prop 65 Warning
WARNING
This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Specifications
| Brand | ICON Vehicle Dynamics |
| UPC | 840103431826 |
| Proxy Number | 64043 |
| Shipping Width | 13.00 in |
| Shipping Length | 40.00 in |
| Shipping Depth | 11.00 in |
| Shipping Weight | 84.0000 LB |
Technical Notes
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: Up to a 37" x 12.50"
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
- APPLICATION NOTE #1: Only fits 4WD models
- TECH NOTE: Compatible with 2-6" front lift height without need for caster bushings or radius arm drop brackets. Not recommended for use on stock height trucks.
- TECH NOTE: Models equipped with OnBoard Scales and up to 3.5" of front lift also require sensor bracket part number 66203
- TECH NOTE: Models equipped with OnBoard Scales and 4-6" of front lift also require sensor bracket part number 66204
