ICON 2005-2007 Ford F-250/F-350 Super Duty, Front, 7” Lift, Box Kit
- ICON Vehicle Dynamics
- SKU:67010
$772.76
Low stock: 2 left
Recommended add-ons
ICON 2005-2007 Ford F-250/F-350 Super Duty, Front, 7” Lift, Box Kit
$772.76
- Get It Fast with Same-day Dispatch
- Free Shipping over $199
- All Reman Parts Ship for $299
1-2 day delivery for most. Expedited shipping options available at checkout.
Have questions? We’re here to help.
Call us at 1-800-347-1188 or chat with our tech support.
Product details

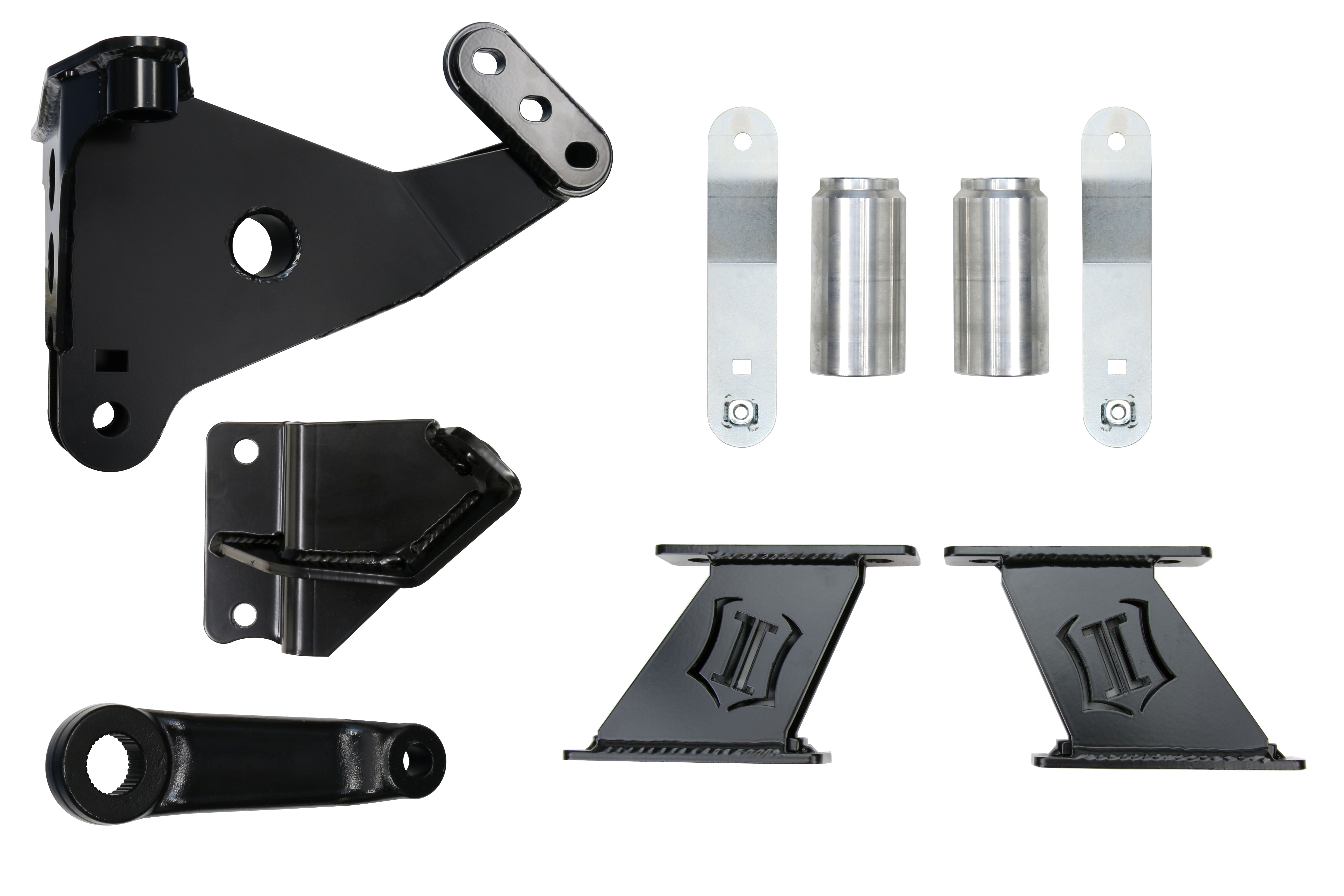

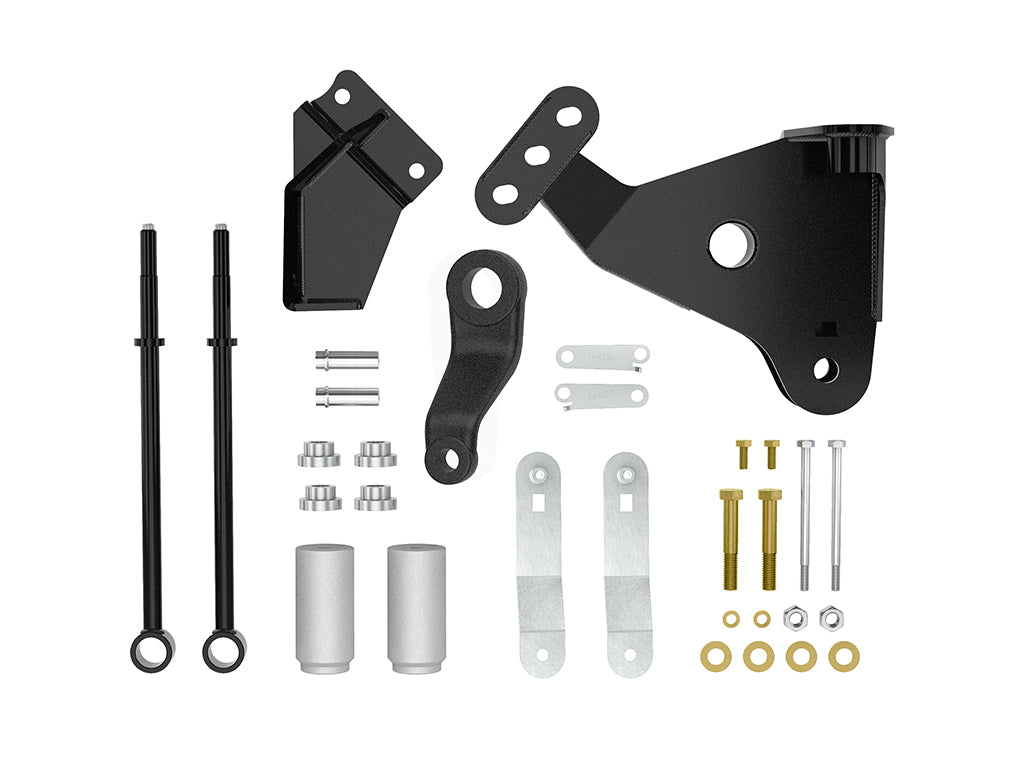

The ICON Vehicle Dynamics 2005-2007 Ford F-250 and F-350 Super Duty 7" Lift Box kit contains many of the miscellaneous parts required to lift the vehicle when using an ICON 7” lift suspension system. This kit includes a fabricated front track bar drop bracket made from CNC laser cut and brake formed .25" steel plate for strength and to ensure proper track bar angle and axle placement. A 4" drop pitman arm corrects steering geometry for the lift height range and eliminates bump steer common when the steering drag link and track bar are not parallel. A fabricated steering stabilizer drop bracket allows a stock replacement steering stabilizer shock to be attached to the drag link and be fully compatible with the drop pitman arm. Front extended sway bar links with polyurethane bushings corrects sway bar angle and prevents bind through the full range of suspension travel. All fabricated components are coated with a semi-gloss black powder coat finish for corrosion resistance and backed up with ICON's Limited Lifetime Warranty.
- Essential components for install of ICON 7" lift suspension systems
- Track bar bracket fabricated from CNC laser cut and brake-formed .25" steel plate
- 4" drop pitman arm
- Fabricated steering stabilizer drop bracket allows stock replacemnt steering stabilizer fitment
- Front extended sway bar links prevent sway bar bind
- Polyurethane sway bar link bushings
- Semi-gloss black powder coat finish for all fabricated components
- Fully bolt on installation with all hardware included
- Protected by ICON's Limited Lifetime Warranty
CA Residents:
Prop 65 Warning
WARNING
This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Specifications
| Brand | ICON Vehicle Dynamics |
| UPC | 840103405780 |
| Proxy Number | 67010 |
| Shipping Width | 12.00 in |
| Shipping Length | 16.00 in |
| Shipping Depth | 8.00 in |
| Shipping Weight | 41.0000 LB |
Technical Notes
Fitment
