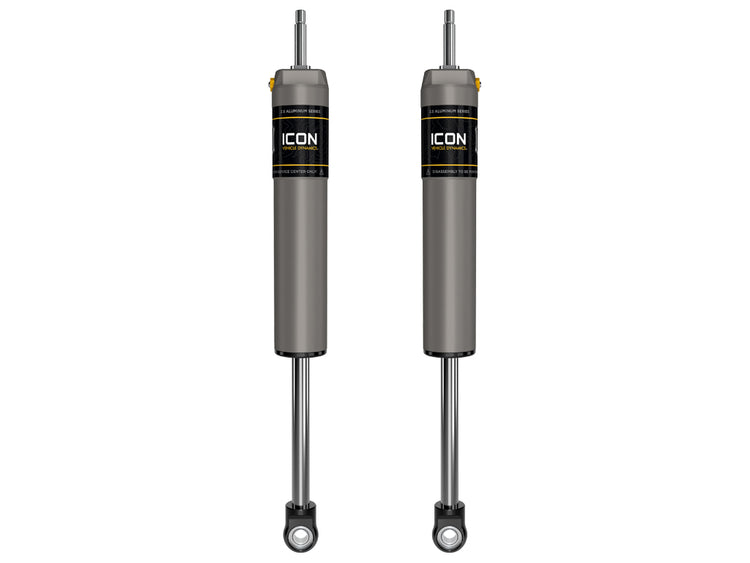

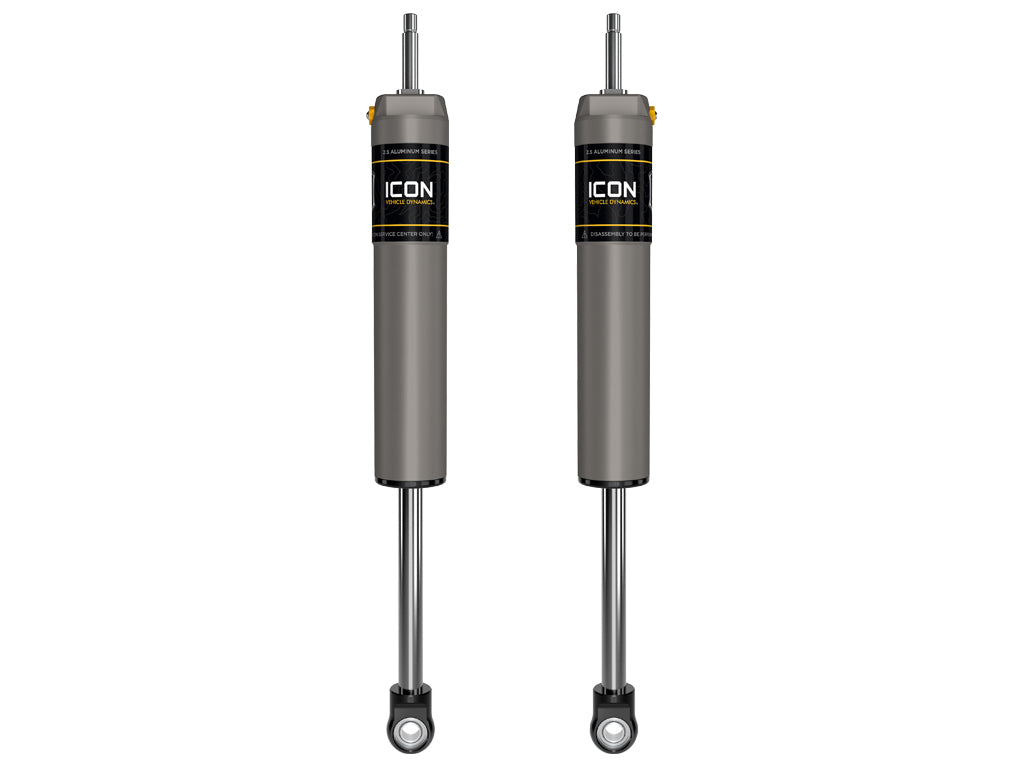

ICON 2005-2026 Ford F-250/F-350 Super Duty 4WD, 7” Lift, Front, V.S. 2.5 Aluminum Series Shock Absorbers, Internal Reservoir, Pair
- ICON Vehicle Dynamics
- SKU:67620P
$812.00
8 in stock
Recommended add-ons
Decrease quantity for ICON 2005-2026 Ford F-250/F-350 Super Duty 4WD, 7” Lift, Front, V.S. 2.5 Aluminum Series Shock Absorbers, Internal Reservoir, Pair
Increase quantity for ICON 2005-2026 Ford F-250/F-350 Super Duty 4WD, 7” Lift, Front, V.S. 2.5 Aluminum Series Shock Absorbers, Internal Reservoir, Pair
ICON 2005-2026 Ford F-250/F-350 Super Duty 4WD, 7” Lift, Front, V.S. 2.5 Aluminum Series Shock Absorbers, Internal Reservoir, Pair
$812.00
- Get It Fast with Same-day Dispatch
- Free Shipping over $199
- All Reman Parts Ship for $299
1-2 day delivery for most. Expedited shipping options available at checkout.
Have questions? We’re here to help.
Call us at 1-800-347-1188 or chat with our tech support.
Product details
ICON Vehicle Specific (V.S.) 2.5 Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Series shocks are 100% rebuildable and 100% revalveable. The larger diameter and oil volume of ICON 2.5 IR Series shocks provide better ride quality and heat dissipation properties than the standard 2.0 Aluminum Series IR Shocks. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDC Valve) or the Omega Series bypass shocks.
- One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- Increase in strength and heat dissipation when compared to ICON V.S. 2.0 Series shocks
- Nitrogen charged monotube design with internal reservoir
- CAD plated, precision machined 1026 DOM steel shock body for maximum durability and corrosion resistance
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- 6061 aircraft grade aluminum CNC machined components
- PTFE lined spherical bearings and application specific mounting hardware
- 100% Revalveable
- 7/8” diameter induction hardened, chrome plated shock shaft
- 100% Rebuildable
- Polyurethane bushings and forged steel mounting stems for OE factory type fitment
CA Residents:
Prop 65 Warning
WARNING
This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Specifications
| Brand | ICON Vehicle Dynamics |
| UPC | 840103405858 |
| Proxy Number | 67620 |
| Shipping Width | 10.00 in |
| Shipping Length | 38.00 in |
| Shipping Depth | 8.00 in |
| Shipping Weight | 20.0000 LB |
Technical Notes
- APPLICATION NOTE #1: Only fits 4WD models
- APPLICATION NOTE #150: Shocks are fully serviceable
- APPLICATION NOTE #504: Compatible with 7” of front lift over stock of 2005-2019 F-250/F-350 4WD
- APPLICATION NOTE #511: Compatible with 7-8” of front lift over stock of 2020-2025 F-250/F-350 4WD without Tremor package
- APPLICATION NOTE #512: Compatible with 6-7” of front lift over stock of 2020-2025 F-250/F-350 4WD equipped with Tremor package
