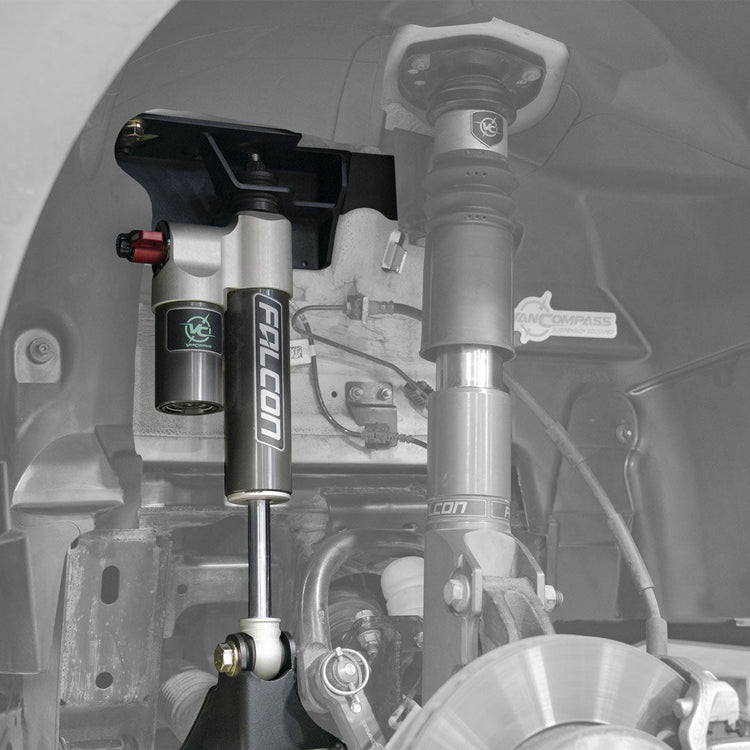

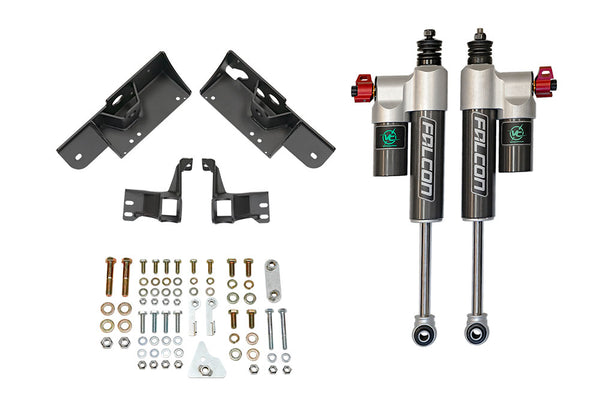

Van Compass Falcon 3.3 Fast Adjust Front Shocks, W/ Mounts, Sprinter 4X4/Awd Pair
- Van Compass
- SKU:7128
$1,591.90
41 in stock
Recommended add-ons
Van Compass Falcon 3.3 Fast Adjust Front Shocks, W/ Mounts, Sprinter 4X4/Awd Pair
$1,591.90
- Get It Fast with Same-day Dispatch
- Free Shipping over $199
- All Reman Parts Ship for $299
1-2 day delivery for most. Expedited shipping options available at checkout.
Have questions? We’re here to help.
Call us at 1-800-347-1188 or chat with our tech support.
Product details
4x4 Sprinters are very capable and versatile vehicles, however many owners have now experienced the stiff factory ride over small bumps and extreme swaying on uneven ruts. Van Compass has developed a custom tuned Falcon shock kit to improve the Sprinters handling both on and off the trail. Our custom tuned Falcon shocks smooth out the harshness experienced on washboard roads and sharp, abrupt impacts. The bounce experienced over large bumps is reduced and the side-to-side sway over uneven surfaces is minimized. Each set of Falcon shocks are specifically to your van weight range.
Aluminum bodied, 2.315" diameter piggy back reservoir shocks offer a huge range of adjustment. The 3.3 fast adjust knob offer quick and easy compression adjustment when the shock is installed. Position one is the lightest setting, great for blasting down washboard roads or rough city streets. Position 2 is a mid-setting with 8 micro adjustments, a great way to dial in the ride and handling setting for driver preference. Position 3 is the firmest setting, used for occasional heavy loads or when driving conditions require the most control. The shocks are manufactured as left and right pairs. The 3.3 fast adjust knob is placed in a spot that is easy to see and adjust.
Aluminum bodied, 2.315" diameter piggy back reservoir shocks offer a huge range of adjustment. The 3.3 fast adjust knob offer quick and easy compression adjustment when the shock is installed. Position one is the lightest setting, great for blasting down washboard roads or rough city streets. Position 2 is a mid-setting with 8 micro adjustments, a great way to dial in the ride and handling setting for driver preference. Position 3 is the firmest setting, used for occasional heavy loads or when driving conditions require the most control. The shocks are manufactured as left and right pairs. The 3.3 fast adjust knob is placed in a spot that is easy to see and adjust.
- High pressure nitrogen charge ensures cavitation free operation
- Reduced sway and wind buffeting
- Full 2" Damper piston (238% increase over stock)
- 100% bolt on with basic tools
- Controls large and small bumps more effectively than factory shocks
- Increase in comfort and vehicle control
- Internal SP2 free bleed adjustment allows for 2 distinct tune profiles
- Enhanced cornering stability
- 3/4" diameter hard chromed shaft resists impact and corrosion.
- 100% bolt on with basic tools
CA Residents:
Prop 65 Warning
WARNING
This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Specifications
| Brand | Van Compass |
| UPC | 810185260690 |
| Shipping Width | 11.00 in |
| Shipping Length | 7.00 in |
| Shipping Depth | 15.00 in |
| Shipping Weight | 41.0000 LB |
Technical Notes
- Recommended Wheel Size: 17" x 8.5", +45mm offset
- WHEEL FITMENT NOTE: AWD vans require fitment of a wheel with 6" backspacing or less. For a 17"x8" wheel, this corresponds with a +38mm offset. Wheels with a greater offset like +52mm, or more backspacing like 6.5", will rub the tire on the shock reservoir when the steering is turned.
- NOTE: Vans equipped with HD Rear AC Package require extra care when mounting front shocks, refrigerant lines may need to be slightly bent and re-secured.
