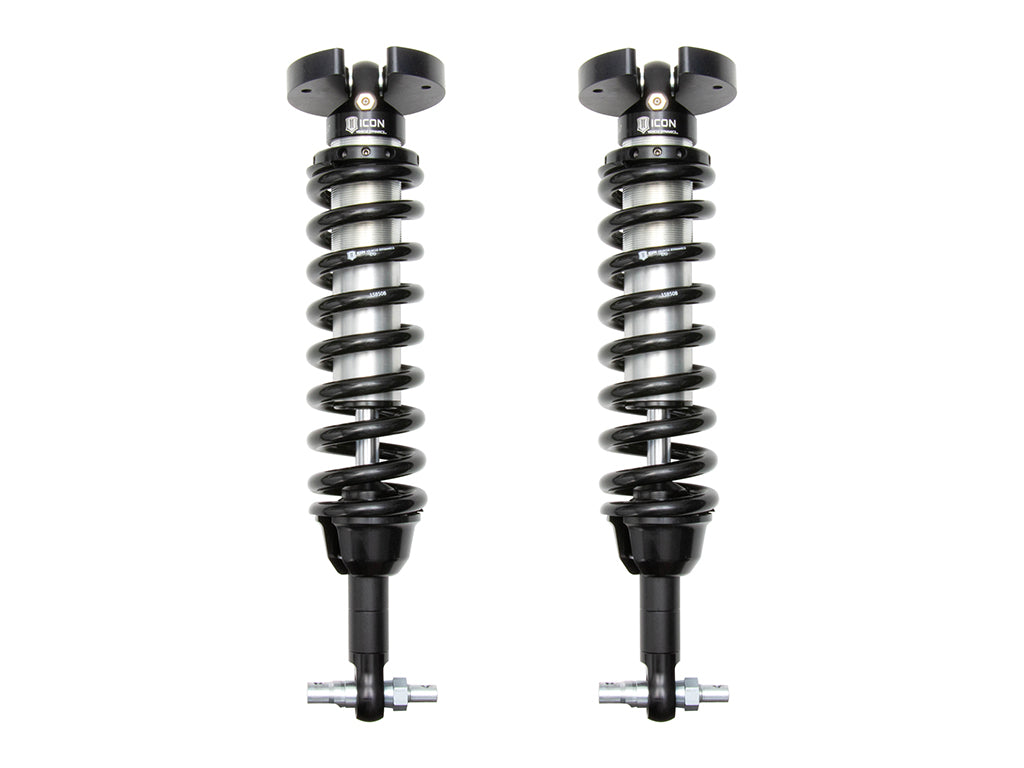

ICON 2019-2026 Chevrolet Silverado1500/GMC Sierra 1500, 1.5-3.5” Lift, Front, V.S. 2.5 Series Coilover Kit, Extended Travel, Internal Reservoir, Pair
- ICON Vehicle Dynamics
- SKU:71606
$1,923.95$2,020.15
4% off
13 in stock
Recommended add-ons
Decrease quantity for ICON 2019-2026 Chevrolet Silverado1500/GMC Sierra 1500, 1.5-3.5” Lift, Front, V.S. 2.5 Series Coilover Kit, Extended Travel, Internal Reservoir, Pair
Increase quantity for ICON 2019-2026 Chevrolet Silverado1500/GMC Sierra 1500, 1.5-3.5” Lift, Front, V.S. 2.5 Series Coilover Kit, Extended Travel, Internal Reservoir, Pair
ICON 2019-2026 Chevrolet Silverado1500/GMC Sierra 1500, 1.5-3.5” Lift, Front, V.S. 2.5 Series Coilover Kit, Extended Travel, Internal Reservoir, Pair
$1,923.95$2,020.15
4% off
- Get It Fast with Same-day Dispatch
- Free Shipping over $199
- All Reman Parts Ship for $299
1-2 day delivery for most. Expedited shipping options available at checkout.
Have questions? We’re here to help.
Call us at 1-800-347-1188 or chat with our tech support.
Product details

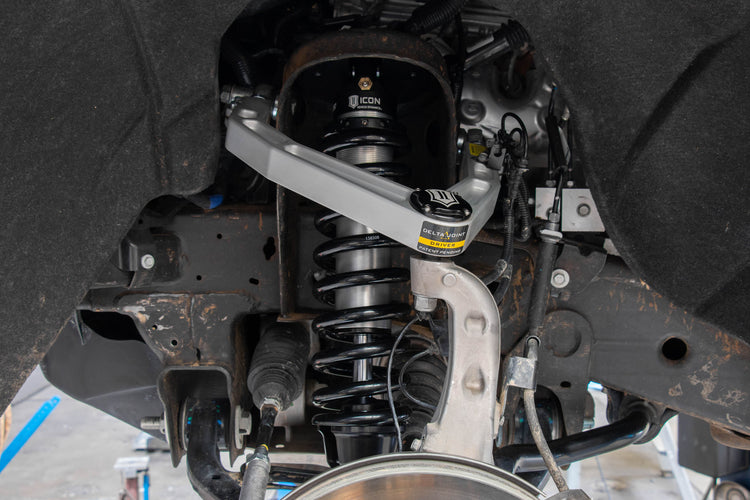

ICON Vehicle Dynamics V.S. Series 2.5” coilover shocks are an incredible upgrade for the front-end of 2019-2026 Chevrolet Silverado 1500/GMC Sierra 1500 trucks. Their extended length and pairing with ICON front upper control arms offers an increase in total front wheel travel compared to ICON standard travel coilovers, for a total of approximately 10” of front wheel travel. ICON’s vehicle-specific valving provides a sport tuned feel on and off-road while 1.5-3.5” of lift height adjustability allows the use of larger, more aggressive wheel and tire combinations. The larger 2.5” diameter shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. When paired with ICON rear 2.0 Aluminum Series or 2.5 Series shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your GM pickup.
- Adjustable coilovers yield 1.5-3.5” of front lift height over stock
- Increased wheel travel and vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use
- Superior low speed control reduces body roll and increases on-road stability
- High quality ICON-engineered coil springs are guaranteed for life against sagging or breakage
- Corrosion resistant CAD plated shock body with 7/8" shaft
- Fully serviceable design allows for revalves, rebuilds, and an immeasurable service life
- Bolt-in design makes for an easy install into OEM shock location
CA Residents:
Prop 65 Warning
WARNING
This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Specifications
| Brand | ICON Vehicle Dynamics |
| UPC | 840103406022 |
| Proxy Number | 71606 |
| Shipping Width | 12.00 in |
| Shipping Length | 27.00 in |
| Shipping Depth | 6.00 in |
| Shipping Weight | 51.0000 LB |
Technical Notes
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 4.75” Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 5” Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 20x9 with 5” Backspace / 0mm Offset
- Recommended Aftermarket Tires (Silverado): 35"x12.50" (Minor fender trimming and modifications may be required)
- Recommended Aftermarket Tires (Sierra): 34"x12.00" (Minor fender trimming and modifications may be required)
- APPLICATION NOTE #18: these systems are to be used with aftermarket upper control arms only
- APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
- APPLICATION NOTE #110: Trimming required for recommended tire size
- APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
- APPLICATION NOTE #331: Silverado 1500 and Sierra 1500 submodels equipped with Adaptive Ride Control also require part numbers 71021 and 71022
- APPLICATION NOTE #324: Most Chevrolet Silverado and GMC Sierra submodels equipped with gasoline engines will have front lift height range of 1.5-3.5" over stock. Chevrolet Silverado Trail Boss and GMC Sierra 1500 AT4 lift height range will be 0-1.5" over stock.
- APPLICATION NOTE #325: Most Chevrolet Silverado and GMC Sierra submodels equipped with diesel engines will have front lift height range of 1-3" over stock. Chevrolet Silverado Trail Boss and GMC Sierra 1500 AT4 lift height range will be 0-1" over stock.
- APPLICATION NOTE #326: Not compatible with models equipped with 4-cylinder engine
- APPLICATION NOTE #327: Not compatible with Silverado 1500 ZR2 or Sierra 1500 AT4X submodels
- APPLICATION NOTE #335: Only fits models equipped with coil front springs
- APPLICATION NOTE #338: Silverado 1500 and Sierra 1500 submodels equipped with Adaptive Ride Control also require concurrent installation of aftermarket rear shocks
