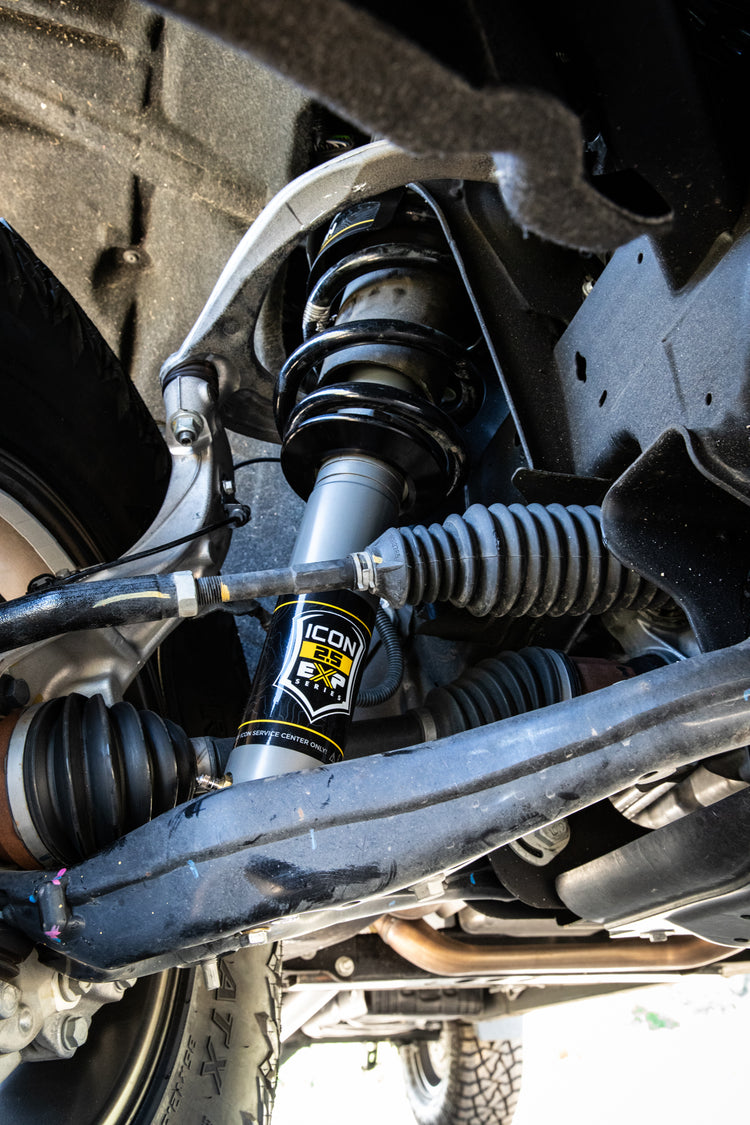

ICON 2019-2026 Chevrolet Silverado 1500/GMC Sierra 1500, Front, 2.38-3.75" Lift, 2.5 EXP Series Coilover
- ICON Vehicle Dynamics
- SKU:71607
$441.96$545.95
19% off
29 in stock
Recommended add-ons
ICON 2019-2026 Chevrolet Silverado 1500/GMC Sierra 1500, Front, 2.38-3.75" Lift, 2.5 EXP Series Coilover
$441.96$545.95
19% off
- Get It Fast with Same-day Dispatch
- Free Shipping over $199
- All Reman Parts Ship for $299
1-2 day delivery for most. Expedited shipping options available at checkout.
Have questions? We’re here to help.
Call us at 1-800-347-1188 or chat with our tech support.
Product details

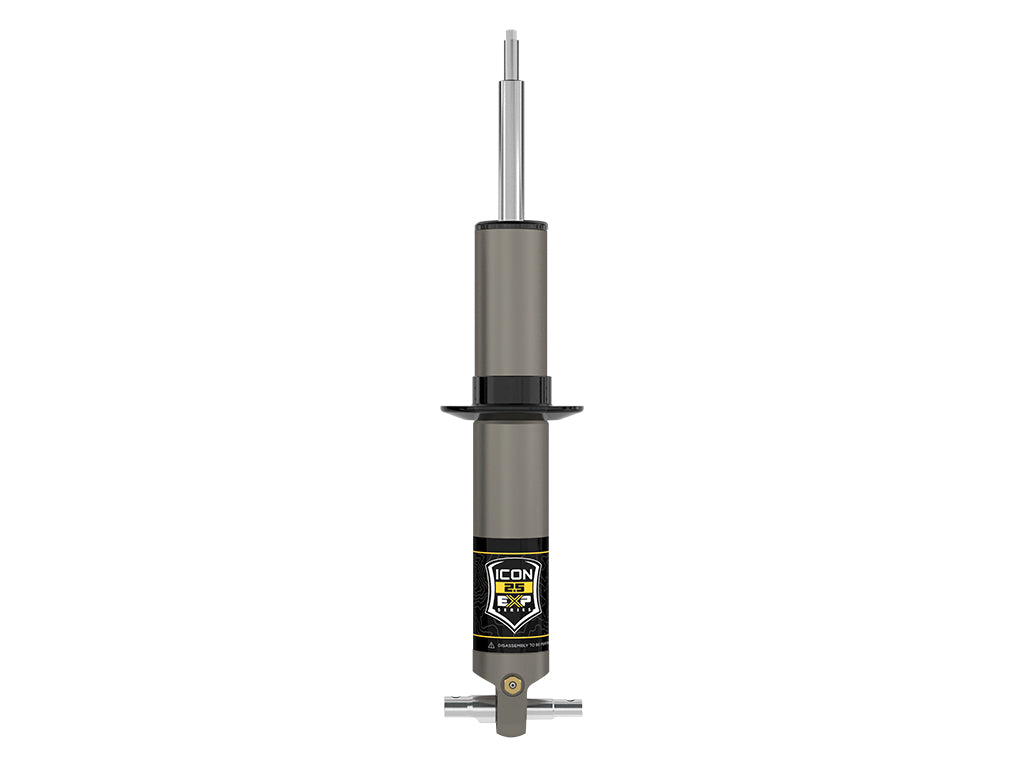

EXP Series for the 2019-2026 Chevrolet Silverado 1500/GMC Sierra 1500 is based on ICON’s proven 2.5-inch diameter Aluminum Series shock absorber, featuring a one-piece impact-extruded aluminum shock body. Hard anodizing provides a great-looking, consistent finish with superior resistance to abrasion and corrosion. The massive 7/8-inch diameter shaft is induction hardened and chrome plated. EXP shocks use the factory shaft-up orientation.
The 6061-billet aluminum coil spring seat is CNC machined to fit the truck’s OE coil springs. A series of snap-ring grooves machined into the shock body provide easily-selectable front-end ride height adjustment from 2.375” to 3.75" of lift over stock.
EXP Series shocks utilize a one-piece digressive piston design and are custom tuned for the 2019-2023 GM 1500 in conjunction with their stock front coil springs to maximize damping performance and provide unsurpassed ride quality, on and off-road. The increased piston size and shock oil volume provided by the 2.5-inch diameter aluminum body also provide superior heat dissipation compared to the smaller, steel bodied OE shocks, resulting in longer-lasting shock performance over prolonged use at higher speeds and through rougher terrain. For those who would like to further tune their suspension, EXP shocks are fully re-valvable (and rebuildable) by any qualified shock technician, with parts available from ICON.
The 6061-billet aluminum coil spring seat is CNC machined to fit the truck’s OE coil springs. A series of snap-ring grooves machined into the shock body provide easily-selectable front-end ride height adjustment from 2.375” to 3.75" of lift over stock.
EXP Series shocks utilize a one-piece digressive piston design and are custom tuned for the 2019-2023 GM 1500 in conjunction with their stock front coil springs to maximize damping performance and provide unsurpassed ride quality, on and off-road. The increased piston size and shock oil volume provided by the 2.5-inch diameter aluminum body also provide superior heat dissipation compared to the smaller, steel bodied OE shocks, resulting in longer-lasting shock performance over prolonged use at higher speeds and through rougher terrain. For those who would like to further tune their suspension, EXP shocks are fully re-valvable (and rebuildable) by any qualified shock technician, with parts available from ICON.
- Vehicle specific design for the 2019-2026 GM 1500 trucks
- Adjustable ride heights from 2.375-3.75” of front lift over stock with the use of snap ring
- Utilizes factory coils
- 2.5 Aluminum Series Shock with Internal Reservoir
- CNC machined 6061 aluminum components with a black anodize finish
- PTFE lined bearings for extended longevity and minimal deflection
- Inverted shaft up design featuring 7/8” diameter, induction hardened, chrome plated shaft
- One-piece impact extruded aluminum hard anodized cylinders offer excellent corrosion resistance and consistent finish
- 100% Bolt-on - no cutting or welding necessary for installation
- Fully rebuildable and re-tunable
CA Residents:
Prop 65 Warning
WARNING
This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Specifications
| Brand | ICON Vehicle Dynamics |
| UPC | 840103421551 |
| Proxy Number | 71607 |
| Shipping Width | 6.00 in |
| Shipping Length | 32.00 in |
| Shipping Depth | 5.00 in |
| Shipping Weight | 13.0000 LB |
Technical Notes
- OEM Wheels & Tires Fitment: Yes

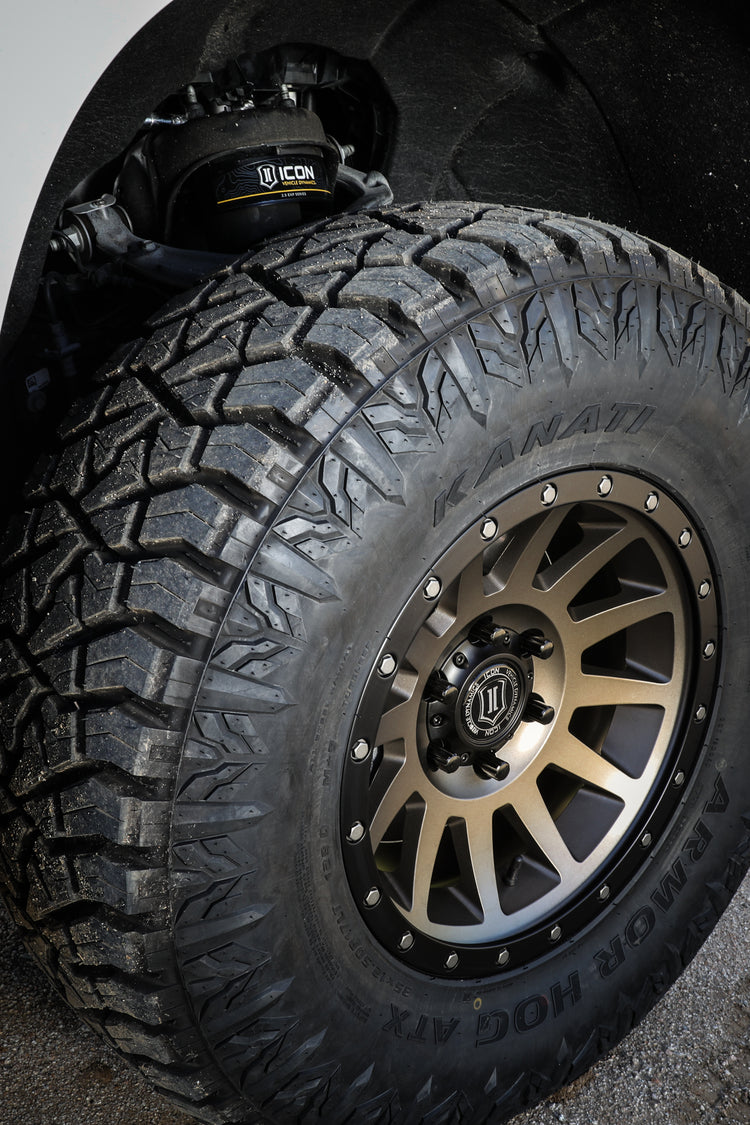

- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 4.75” Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 5” Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 20x9 with 5” Backspace / 0mm Offset
- Recommended Aftermarket Tires (Silverado 1500): 35"x12.50" (Minor fender trimming and modifications may be required)
- Recommended Aftermarket Tires (Sierra 1500): 34"x12.00" (Minor fender trimming and modifications may be required)
- APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
- APPLICATION NOTE #110: Trimming Required For Recommended Tire Size
- APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
- APPLICATION NOTE #327: Not compatible with Silverado 1500 ZR2 or Sierra 1500 AT4X submodels
- APPLICATION NOTE #331: Silverado 1500 and Sierra 1500 submodels equipped with Adaptive Ride Control also require part numbers 71021 and 71022
- APPLICATION NOTE #338: Silverado 1500 and Sierra 1500 submodels equipped with Adaptive Ride Control also require concurrent installation of aftermarket rear shocks
- APPLICATION NOTE #345: EXP Coilovers are sold individually. A quantity of 2 are required per vehicle.
- APPLICATION NOTE #346: Most Chevrolet Silverado and GMC Sierra submodels equipped with diesel engines will have front lift height range of 1.75-3" over stock
- APPLICATION NOTE #347: Not compatible with Silverado 1500 Trail Boss or Sierra 1500 AT4 submodels
- APPLICATION NOTE #350: Most Chevrolet Silverado and GMC Sierra submodels equipped with gasoline engines will have front lift height range of 2.375-3.75” over stock (lift heights vary slightly depending on trim/engine)
