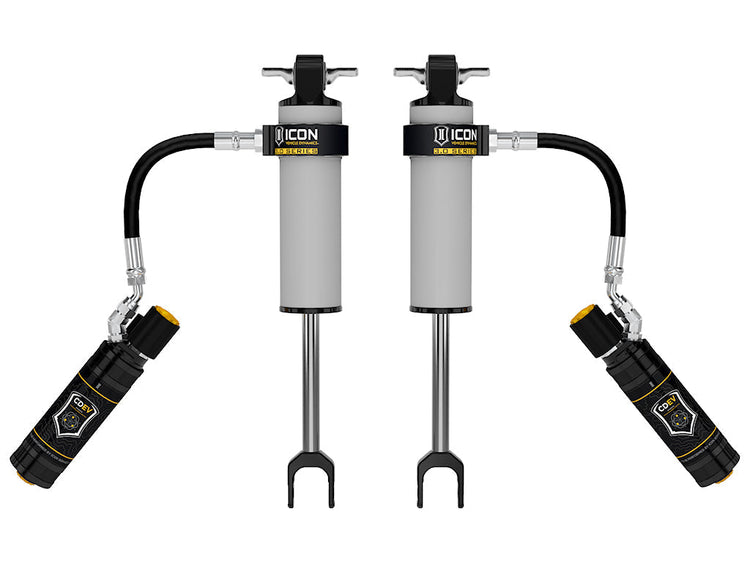

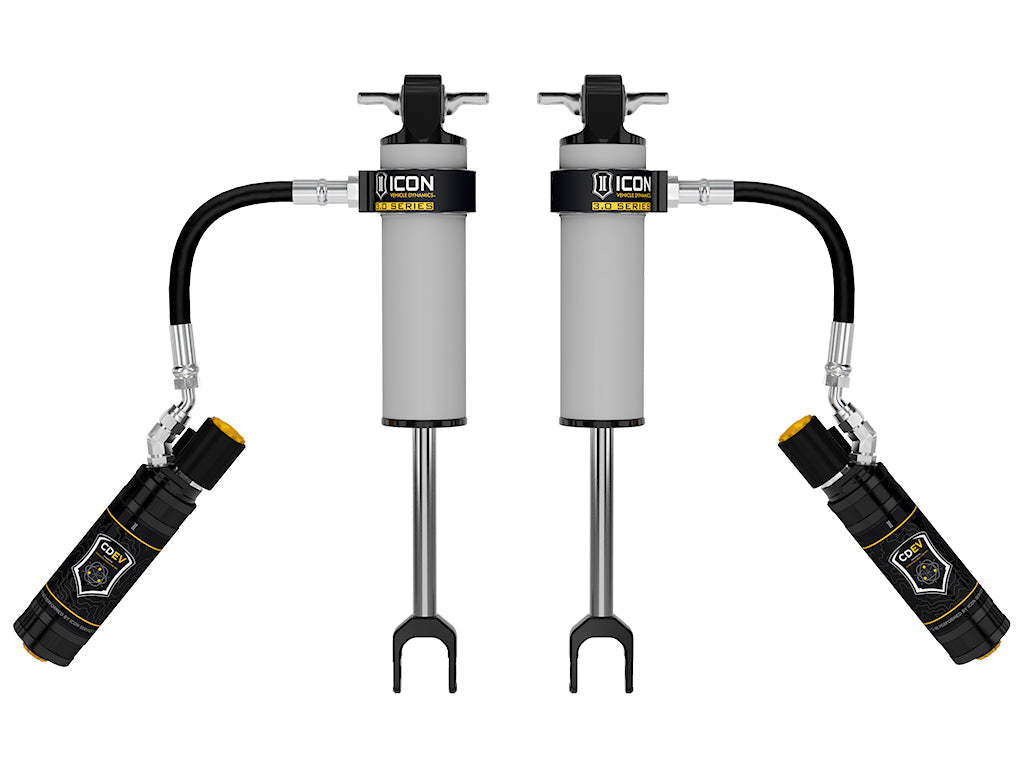

ICON 2020-2026 Chevrolet Silverado/GMC Sierra 2500/3500 HD, 0-3.5” Lift, Front, V.S. 3.0 Shock Absorbers, Remote Reservoir w/ CDEV, Pair
- ICON Vehicle Dynamics
- SKU:71704EP
In stock
ICON 2020-2026 Chevrolet Silverado/GMC Sierra 2500/3500 HD, 0-3.5” Lift, Front, V.S. 3.0 Shock Absorbers, Remote Reservoir w/ CDEV, Pair
- Get It Fast with Same-day Dispatch
- Free Shipping over $199
- All Reman Parts Ship for $299
1-2 day delivery for most. Expedited shipping options available at checkout.
Have questions? We’re here to help.
Product details
ICON Vehicle Specific (V.S.) 3.0 Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. 3.0 Series shocks boast 50% more piston surface area compared to 2.5 Series shocks. This translates into increased stability and vehicle control at the extremes of off-road use, with benefits also making themselves apparent in on-road driving conditions. Increased internal oil volume and more external surface area compared to 2.5 Series shocks offer improved heat dissipation and resistance to shock fade under hard use. Like all ICON shock absorbers, V.S. 3.0 Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON’s unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal “Bump Zone” that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity.
- Compatible with 0-3.5" of front lift over stock
- Vehicle specific design and tuning for superior shock damping and control
- 3.0” Body diameter for increased oil volume and larger piston area
- Extended travel length requires ICON Delta Joint Pro front upper control arms and provides maximum wheel travel
- ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
- Nitrogen charged monotube design with remote reservoir
- Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
- ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- One-piece linear compression/digressive rebound piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- 7/8” diameter induction hardened, chrome plated shock shaft
- Press in, bonded rubber bushing/bar pin assembly damps road vibration and provides OE factory type fitment
- 6061 aircraft grade aluminum CNC machined components
- Cerakoted steel cylinders offer excellent corrosion resistance and consistent finish
- 100% Rebuildable
- 100% Revalveable
WARNING
This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Specifications
| Brand | ICON Vehicle Dynamics |
| UPC | 840103436296 |
| Proxy Number | 71704 |
| Shipping Width | 13 in |
| Shipping Length | 31 in |
| Shipping Depth | 7 in |
| Shipping Weight | 41 LB |
Technical Notes
- APPLICATION NOTE #55: Shocks Are Fully Serviceable. Lift Heights Indicated Are For A Stock Equipped Vehicle.
- APPLICATION NOTE #152: ICON Delta Joint Pro upper control arms required
- APPLICATION NOTE #198: An iOS operated device is required to run ICON Intelligent Control app
- APPLICATION NOTE #203: Also requires installation of applicable IIC kit and CDEV rear shocks
- APPLICATION NOTE #298: Compatible with 0-3.5" of front lift on most Chevrolet Silverado 2500/3500 HD and GMC Sierra 2500/3500 HD submodels. Compatible with 0-2" of front lift on Chevrolet Silverado 2500 ZR2 and GMC Sierra 2500 AT4X.
