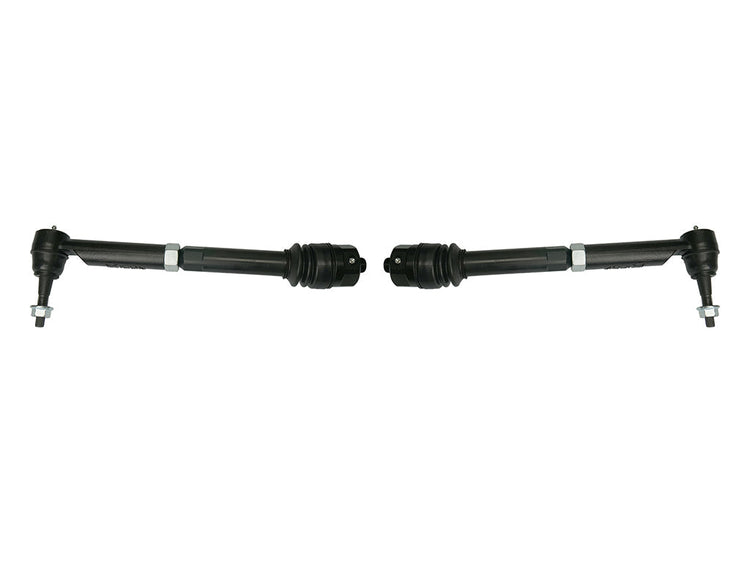

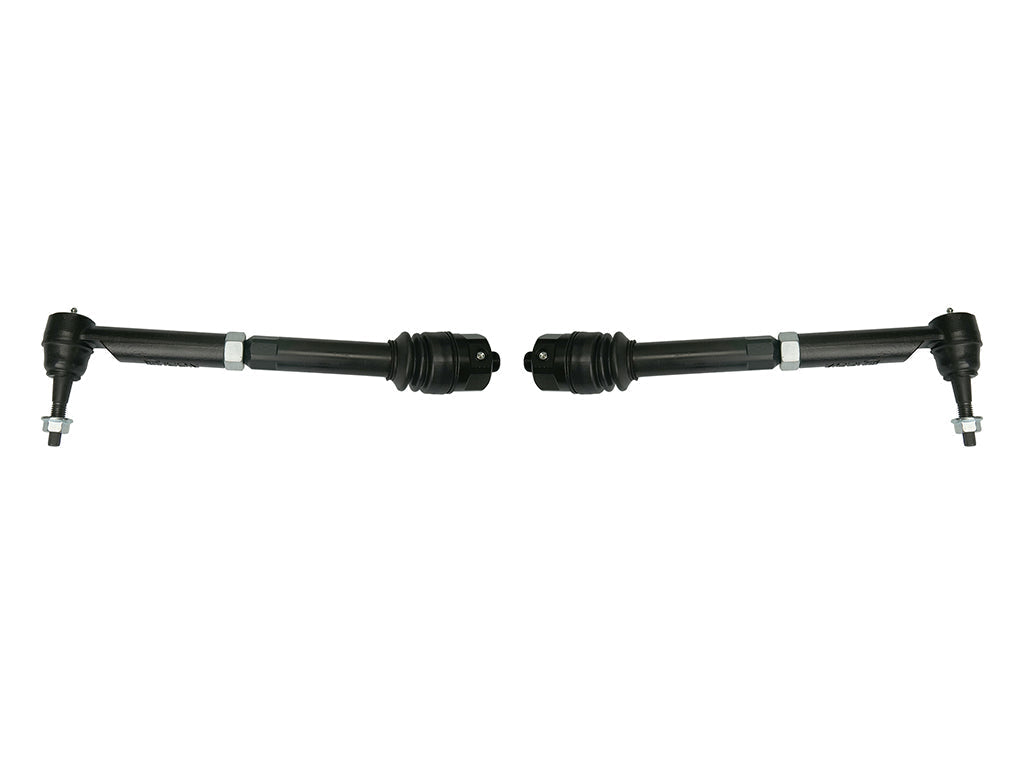

ICON 2011-2026 Chevrolet Silverado/GMC Sierra 2500/3500 HD, Extreme Duty Tie Rod Kit
- ICON Vehicle Dynamics
- SKU:73034
In stock
Recommended add-ons
ICON 2011-2026 Chevrolet Silverado/GMC Sierra 2500/3500 HD, Extreme Duty Tie Rod Kit
- Get It Fast with Same-day Dispatch
- Free Shipping over $199
- All Reman Parts Ship for $299
1-2 day delivery for most. Expedited shipping options available at checkout.
Have questions? We’re here to help.
Product details
ICON suspension upgrades allow owners of 2011-2026 Chevrolet Silverado 2500 HD/3500 HD and GMC Sierra 2500 HD/3500 HD trucks to push the limits of performance with longer travel, larger tires and suspension dynamics that invite higher speeds on tougher terrain. Such use can stress the truck's factory tie rods beyond their intended strength. These ICON XD Forged Tie Rods remedy this with better materials and beefier dimensions, providing buckling strength that is 27 times greater than the stock units. The inner tie rod and ball stud is CNC machined from 4140 chromoly and upsized to 130% larger diameter than the stock tie rods and complimented by a 35mm diameter, metal on metal inner ball stud for maximum rigidity. The outer tie rod is forged steel with a beefier 32mm diameter, metal on metal joint that is greaseable for extended service life and has the same range of operating angle as the stock tie rod ends. For the most hardcore of off-roaders, the ICON XD Forged Tie Rod kit is recommended as part of a comprehensive steering system upgrade strategy.
- Significant increase in buckling strength over stock
- 130% larger diameter than OE tie rods
- 4140 chromoly 35mm inner ball studs
- Forged steel outer tie rod ends with 32mm ball studs
- Metal on metal ball joint design with grease zerks
- Includes inner tie rod boots that protect the ball studs from dirt and debris
- Limited lifetime warranty
WARNING
This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Specifications
| Brand | ICON Vehicle Dynamics |
| UPC | 840103436531 |
| Proxy Number | 73034 |
| Shipping Width | 6 in |
| Shipping Length | 28 in |
| Shipping Depth | 6 in |
| Shipping Weight | 10 LB |
Technical Notes
Fitment
