ICON 2019-2026 GM 1500/2021-2026 GM SUV, Front, Tubular Upper Control Arm w/ Delta Joint, Kit
- ICON Vehicle Dynamics
- SKU:78620DJ
$879.95
7 in stock
Recommended add-ons
ICON 2019-2026 GM 1500/2021-2026 GM SUV, Front, Tubular Upper Control Arm w/ Delta Joint, Kit
$879.95
- Get It Fast with Same-day Dispatch
- Free Shipping over $199
- All Reman Parts Ship for $299
1-2 day delivery for most. Expedited shipping options available at checkout.
Have questions? We’re here to help.
Call us at 1-800-347-1188 or chat with our tech support.
Product details

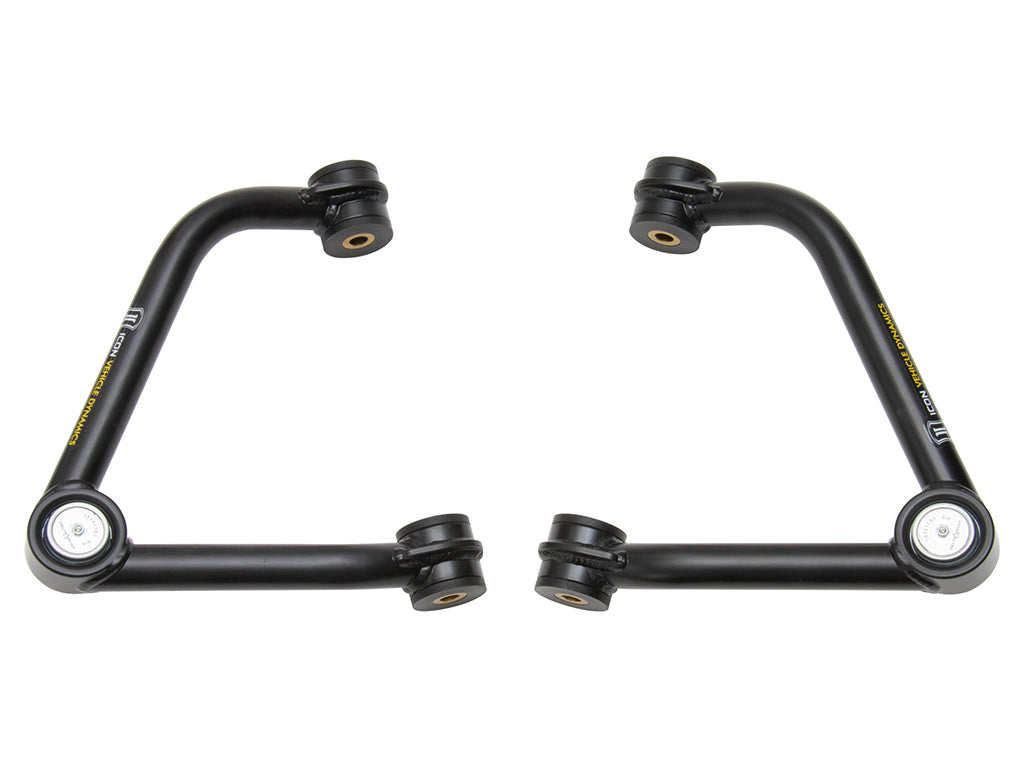

Take the performance of your 2019-2026 GM Silverado/Sierra 1500 pickup or 2021-2026 GM SUV to new levels with the ICON Vehicle Dynamics Delta Joint tubular upper control arm kit. All ICON tubular upper control arms are constructed from CNC bent 1026 DOM steel tubing and then powder coated to a semi-gloss black finish for maximum strength and corrosion resistance. ICON upper control arms are engineered with built-in caster correction for optimal alignment specifications and confidence inspiring handling. A main benefit of ICON upper control arms is the potential for increased wheel travel when paired with our 2.5 Series coilovers, translating into superior performance and ride quality for your vehicle. These upper control arms feature ICON's patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.

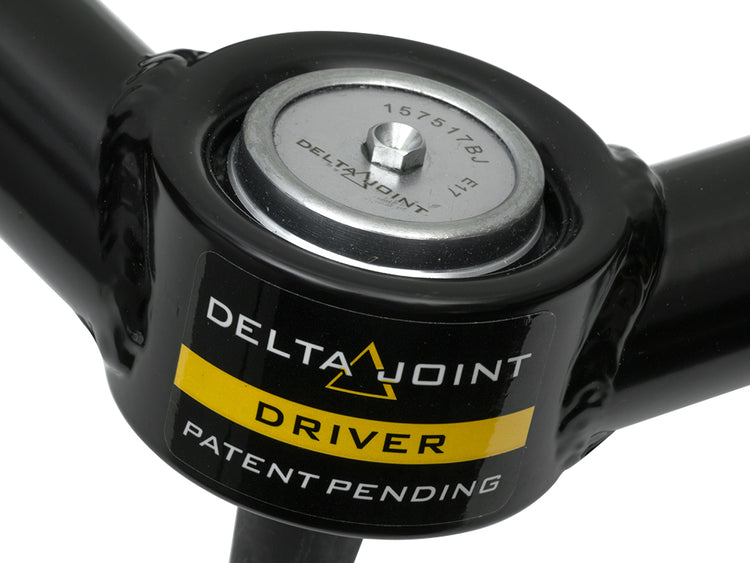

- ICON Delta Joint
- 1026 DOM Steel Construction
- CNC Bent Tubing

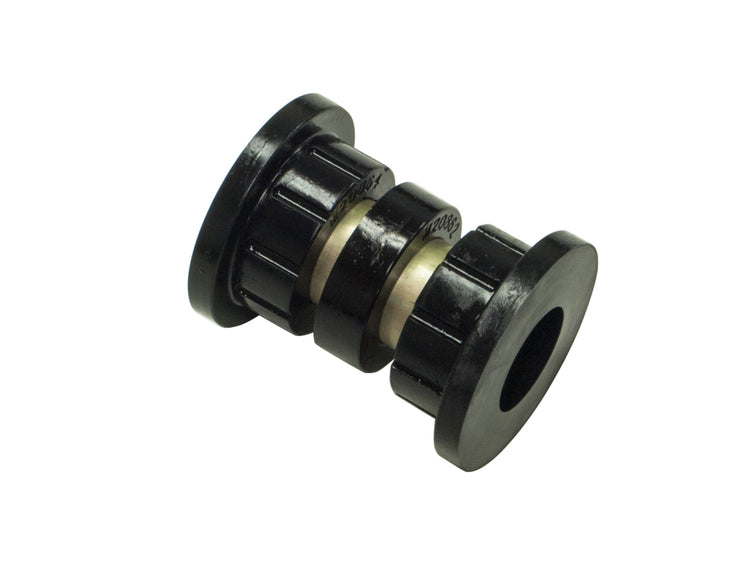

- Serviceable Dual Stage Bushings
- CNC Machined Bushing Housings and Sleeves
- Built-In Caster Correction
- Black Semi-Gloss Powder Coat Finish
CA Residents:
Prop 65 Warning
WARNING
This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Specifications
| Brand | ICON Vehicle Dynamics |
| UPC | 840103406473 |
| Proxy Number | 78620 |
| Shipping Width | 12.00 in |
| Shipping Length | 16.00 in |
| Shipping Depth | 8.00 in |
| Shipping Weight | 25.0000 LB |
Technical Notes
- OEM Wheels & Tires Fitment: Yes
- TECH NOTE: Compatible with 2-3.25" of front lift over stock on most GM SUV submodels.
- TECH NOTE: Not compatible Silverado 1500 ZR2 or Sierra 1500 AT4X
- TECH NOTE: Not compatible with models equipped with torsion bar front springs
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 4.75” Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 5” Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 20x9 with 5” Backspace / 0mm Offset
- Recommended Aftermarket Tires (Silverado): 35"x12.50" (Minor fender trimming and modifications may be required)
- Recommended Aftermarket Tires (Sierra): 34"x12.00" (Minor fender trimming and modifications may be required)
- Recommended Aftermarket Tires (SUV): 33"x12.50" (Minor fender trimming and modifications may be required)
- APPLICATION NOTE #327: Not compatible Silverado 1500 ZR2 or Sierra 1500 AT4X
- APPLICATION NOTE #330: Will not fit SUV submodels equipped with Magnetic Ride Control and/or Adaptive Air Ride suspension.
- APPLICATION NOTE #331: Silverado 1500 and Sierra 1500 submodels equipped with Adaptive Ride Control also require part numbers 71021 and 71022
- APPLICATION NOTE #335: Only fits models equipped with coil front springs
- APPLICATION NOTE #336: Silverado 1500 and Sierra 1500 submodels equipped with Adaptive Ride Control also require concurrent installation of aftermarket front and rear shocks
- APPLICATION NOTE #343: Compatible with 1.5-3.5" of front lift over stock on most pickup submodels. Compatible with 0-1.5" of front lift over stock on Silverado 1500 Trail Boss and Sierra 1500 AT4 models.
- APPLICATION NOTE #344: Compatible with 2-3.25" of front lift over stock on most GM SUV submodels.
