ICON 2021-2023 Ford F-150 2WD, 0-3" Lift, Front, V.S. 2.5 Series Coilovers, Internal Reservoir, Pair
- ICON Vehicle Dynamics
- SKU:91717
$1,819.95$1,910.95
4% off
Low stock: 4 left
Recommended add-ons
ICON 2021-2023 Ford F-150 2WD, 0-3" Lift, Front, V.S. 2.5 Series Coilovers, Internal Reservoir, Pair
$1,819.95$1,910.95
4% off
- Get It Fast with Same-day Dispatch
- Free Shipping over $99
1-2 day delivery for most. Expedited shipping options available at checkout.
Have questions? We’re here to help.
Call us at 1-800-347-1188 or chat with our tech support.
Product details

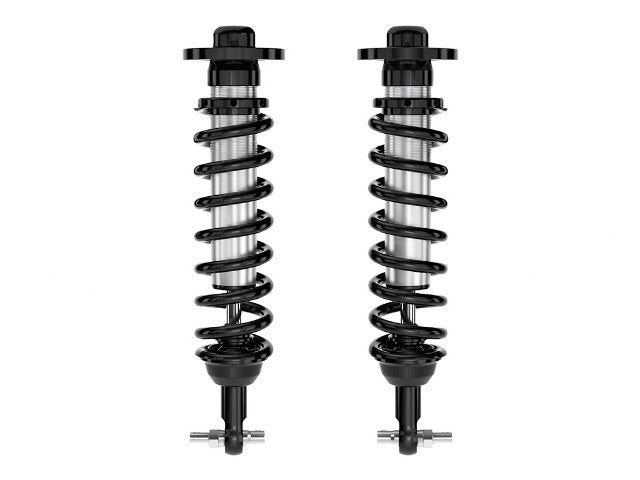

ICON 2.5 Series coilovers with internal reservoirs provide ride height adjustability from 0-3" of lift over stock. The larger 2.5” shock body and piston area over stock components provides improved damping ability and ride quality.
- Increased wheel travel and ride quality over stock
- 100% Bolt-on - no drilling,cutting or welding necessary for installation
- Vehicle specific tuned for superior shock damping and control
- Adjustable 0-3" lift height over stock
- ICON engineered coil springs
- 6061 Aircraft grade aluminum CNC machined components
- High strength alloy CNC machined lower bar pin
CA Residents:
Prop 65 Warning
WARNING
This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Specifications
| Brand | ICON Vehicle Dynamics |
| UPC | 840103411545 |
| Shipping Width | 13.00 in |
| Shipping Length | 26.00 in |
| Shipping Depth | 7.00 in |
| Shipping Weight | 53.0000 LB |
Technical Notes
- Factory Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5" Backspace / 6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset
- Recommended Aftermarket Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
- APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
- APPLICATION NOTE #129: Will not work with factory installed electronically controlled suspension.
- APPLICATION NOTE #179: Only compatible with stock or original ICON Delta Joint UCAs. Not compatible with ICON Delta Joint Pro UCAs.
- TECH NOTE: Only compatible with rear-wheel drive (2WD) models
- TECH NOTE: Models equipped with PowerBoost hybrid engines will have lift height range of 0-2.75" over stock
- TECH NOTE: Models equipped with Power-Stroke diesel engines will have lift height range of 0-2.5" over stock
- TECH NOTE: Not compatible with models equipped with BlueCruise
