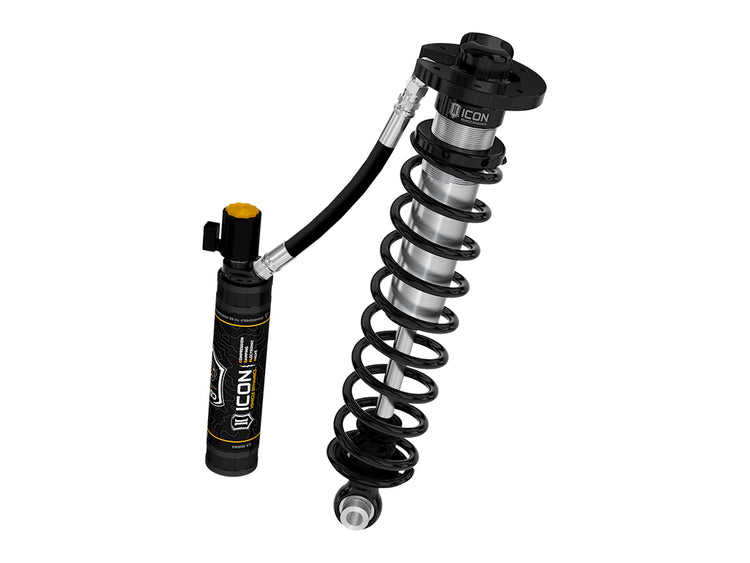

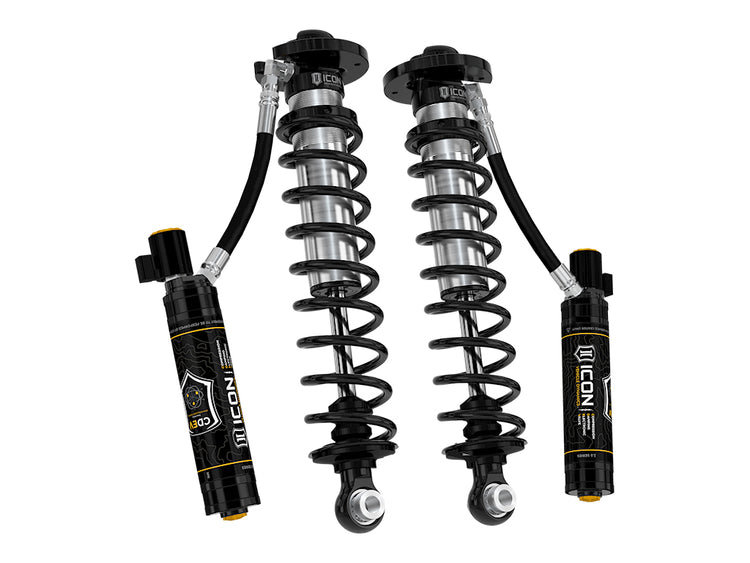

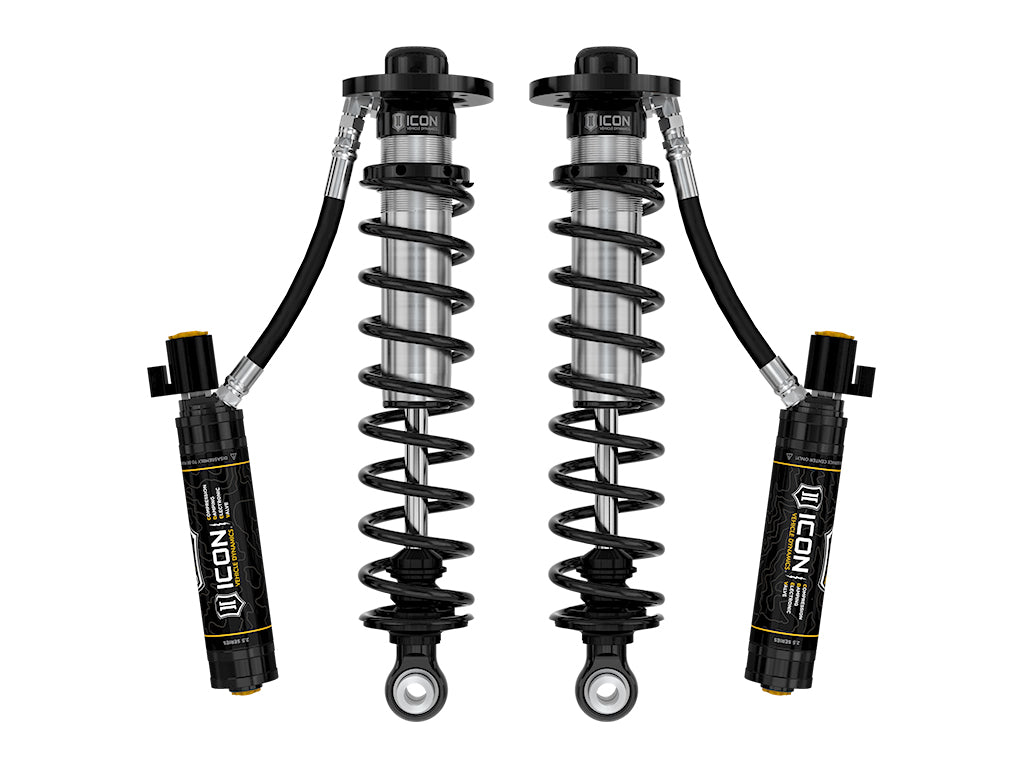

ICON 2022-2023 Ford F-150 Lightning, Lowered 0-4", 2.5 VS Remote Reservoir CDEV Coilover Kit, Rear
- ICON Vehicle Dynamics
- SKU:91836E
$2,911.95$3,057.55
4% off
Out of stock
Recommended add-ons
ICON 2022-2023 Ford F-150 Lightning, Lowered 0-4", 2.5 VS Remote Reservoir CDEV Coilover Kit, Rear
$2,911.95$3,057.55
4% off
- Get It Fast with Same-day Dispatch
- Free Shipping over $99
1-2 day delivery for most. Expedited shipping options available at checkout.
Have questions? We’re here to help.
Call us at 1-800-347-1188 or chat with our tech support.
Product details
ICON’s vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock yield the maximum travel possible along with superior ride quality and suspension performance with a lowered stance.
- Height-adjustable coilovers offer 0-4" of lowered height adjustment
- Vehicle specific tuned front shocks for superior shock damping and vehicle control
- ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
- Remote reservoir to maintain cooler operating temperatures and house CDE Valves
- Increased compression travel compared to stock
- ICON engineered coil springs with optimized spring rates for improved ride quality
- Fully rebuildable and re-tunable
CA Residents:
Prop 65 Warning
WARNING
This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Specifications
| Brand | ICON Vehicle Dynamics |
| UPC | 840103423623 |
| Shipping Width | 12.00 in |
| Shipping Length | 27.00 in |
| Shipping Depth | 7.08 in |
| Shipping Weight | 53.0000 LB |
Technical Notes
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: 20x9" w/ 6" Backspace / 25mm Offset
- Recommended Aftermarket Tires: 33" x 12.00" (Larger tires may fit but fender trimming and modifications may be required)
- APPLICATION NOTE #55: Shocks Are Fully Serviceable. Lowered Heights Indicated Are For A Stock Equipped Vehicle.
- TECH NOTE: Also requires installation of IIC kit (Part # 93501) and CDEV front coilovers (Part # 91831E)
- TECH NOTE: Lowering rear past 3.5" below stock may reduce ride quality due to limited distance to bump stop engagement
