Carli Pathfinder System, Base, 3.25” Lift, 2013-26 Ram 3500 NON-AIR ASSIST
- Carli Suspension
- SKU:CS-D3-PF-1319-D
$4,554.00
On backorder - will ship upon availability
Recommended add-ons
Carli Pathfinder System, Base, 3.25” Lift, 2013-26 Ram 3500 NON-AIR ASSIST
$4,554.00
- Get It Fast with Same-day Dispatch
- Free Shipping over $199
- All Reman Parts Ship for $299
1-2 day delivery for most. Expedited shipping options available at checkout.
Have questions? We’re here to help.
Call us at 1-800-347-1188 or chat with our tech support.
Product details
The Carli Pathfinder System is the true do-all Suspension setup. Featuring Carli-Spec 2.5" shocks tuned for optimal on road ride, improved offroad performance, stability when towing, durability, appearance, and easy on the wallet.
Carli Pintop Systems provide a moderate lift and the added confidence of larger diameter (2.5”) shocks. They are a perfect blend of a comfortable on-road ride with all the harsh edges rounded and confident light- to medium-duty off-roading. The system features Carli-specific, blueprinted, King 2.5 shocks on all four corners. With a 2.5-inch diameter shock body these Pintop shocks delver 55% more piston surface area than a 2.0-inch shock. Carli engineers have designed a custom piston to produce proper base flow rates and optimize performance in robust ¾-ton and one-ton platforms. The Carli-spec shocks also feature shafts machined and polished from a solid piece of 17-4 stainless. The system delivers a dramatic increase is travel and the included adjustable track bar adds stability countering the sloppiness that can lead to Death Wobble. The truck will sit higher in the front for a level look and have more wheel travel thanks to the lighter rate Carli coil springs.
Carli Pintop Systems provide a moderate lift and the added confidence of larger diameter (2.5”) shocks. They are a perfect blend of a comfortable on-road ride with all the harsh edges rounded and confident light- to medium-duty off-roading. The system features Carli-specific, blueprinted, King 2.5 shocks on all four corners. With a 2.5-inch diameter shock body these Pintop shocks delver 55% more piston surface area than a 2.0-inch shock. Carli engineers have designed a custom piston to produce proper base flow rates and optimize performance in robust ¾-ton and one-ton platforms. The Carli-spec shocks also feature shafts machined and polished from a solid piece of 17-4 stainless. The system delivers a dramatic increase is travel and the included adjustable track bar adds stability countering the sloppiness that can lead to Death Wobble. The truck will sit higher in the front for a level look and have more wheel travel thanks to the lighter rate Carli coil springs.
- 2.5" Pathfinder shocks provide the best blend of comfort, control, and cooling capability for a great all-around shock.
- Shocks are finished in a durable gray hardcoat for resistance to corrosion and great appearance.
- Further improve performance by adding Carli torsion sway bar, fabricated radius arms, steering stabilizers, rear leaf spring option, or ball joints.
- Not compatible with trucks equipped with factory rear air ride.

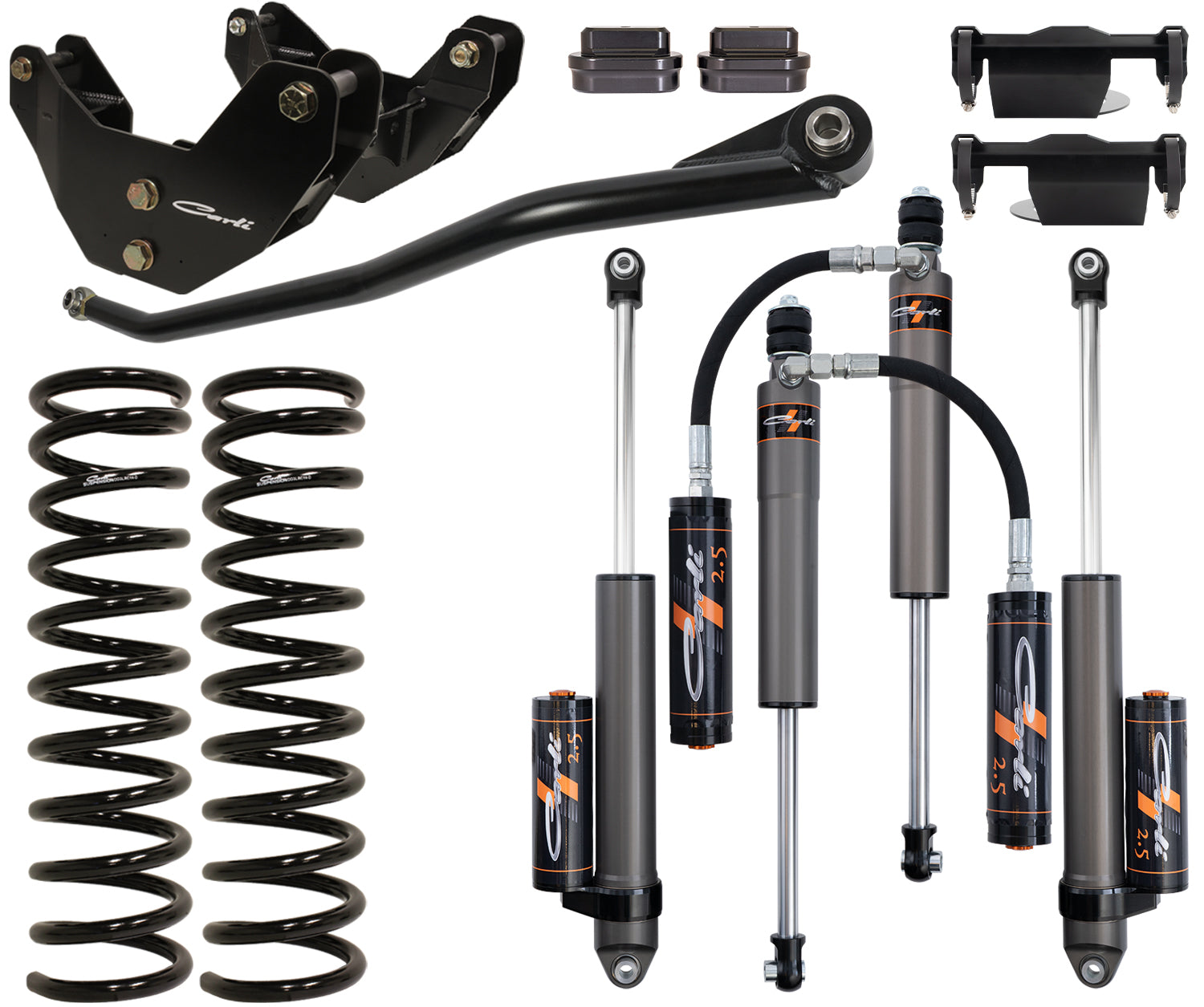

- System includes Linear-rate front coil springs, front and rear shock package, front bump drops, radius arm drops and adjustable track bar.
- Fits up to 37" tires with ease for a more aggresize appearance and better offroad performance.
- Increases wheel travel to 9.3" front and 13" rear.
CA Residents:
Prop 65 Warning
WARNING
This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Specifications
| Brand | Carli Suspension |
| UPC | 883584176053 |
| Shipping Width | 13.00 in |
| Shipping Length | 12.00 in |
| Shipping Depth | 37.00 in |
| Shipping Weight | 190.0000 LB |
Technical Notes
- Required and Optional Parts to support this system:
- Sway Bar Options (REQUIRED): CS-DTSB3-1419 or CS-DSBD-14
- Leaf Spring Options (REQUIRED): CS-DPAP-03-D or CS-DPAP-19-425 or CS-DFSP-13-D or CS-DFSP-19-425
