Carli Pathfinder 2" Lift System, 14-18 Ram 2500 POWER WAGON R2 COILS
- Carli Suspension
- SKU:CS-D3-PF-CS-14-PW-R2
$5,576.00
On backorder - will ship upon availability
Recommended add-ons
Carli Pathfinder 2" Lift System, 14-18 Ram 2500 POWER WAGON R2 COILS
$5,576.00
- Get It Fast with Same-day Dispatch
- Free Shipping over $199
- All Reman Parts Ship for $299
1-2 day delivery for most. Expedited shipping options available at checkout.
Have questions? We’re here to help.
Call us at 1-800-347-1188 or chat with our tech support.
Product details
The Carli Pathfinder System is the true do-all Suspension setup. Featuring Carli-Spec 2.5" shocks tuned for optimal on road ride, improved offroad performance, stability when towing, durability, appearance, and easy on the wallet.
- 2.5" Pathfinder shocks provide the best blend of comfort, control, and cooling capability for a great all-around shock.
- Power Wagon Specific system
- Shocks are finished in a durable gray hardcoat for resistance to corrosion and great appearance.

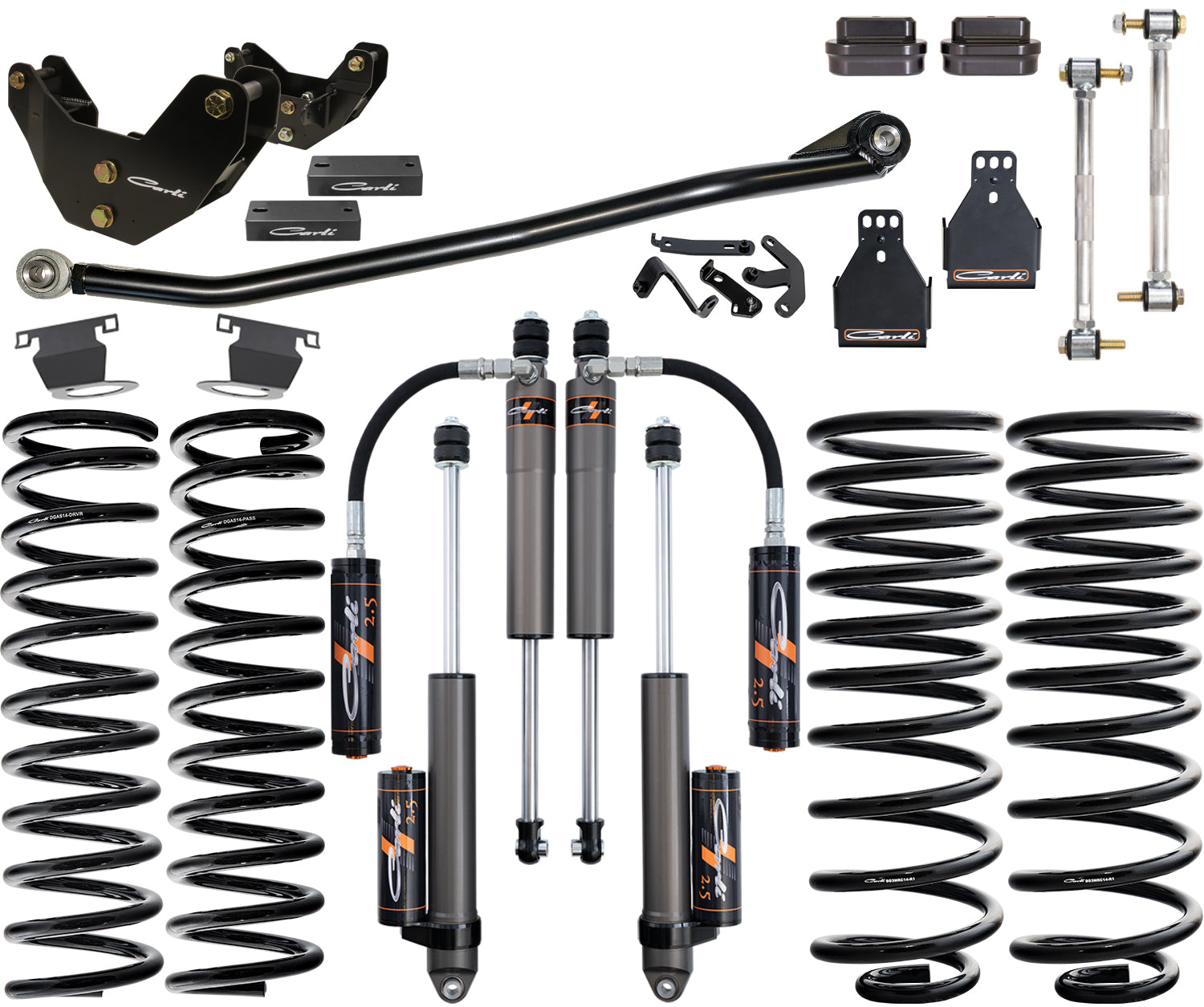

- System includes Carli front soft-ride coil springs and R2 +2" rear coil springs, adjustable track bar, Pathfinder 2.5" shock package, radius arm drop brakcets, bump stop drops, rear sway bar end links.
- Further improve performance by adding Carli torsion sway bar, fabricated radius arms, steering stabilizers, or ball joints.
- R2 Coil springs are designed for trucks carrying added weight in the rear or towing often. Spring rate is closer to factory and an additional 1" taller than standard Carli rear coils.
- Not compatible with trucks equipped with factory rear air ride.
- REQUIRED: this system requires but DOES NOT INCLUDE Carli front sway bar option and rear track bar option.
CA Residents:
Prop 65 Warning
WARNING
This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Specifications
| Brand | Carli Suspension |
| UPC | 883584177081 |
| Shipping Width | 13.00 in |
| Shipping Length | 12.00 in |
| Shipping Depth | 37.00 in |
| Shipping Weight | 210.0000 LB |
