Carli Pintop 2.5 Leveling System, Base, 3” Lift, 2003-09 Ram 2500/3500, Diesel
- Carli Suspension
- SKU:CS-DPT25-03-D
$4,153.00
On backorder - will ship upon availability
Recommended add-ons
Airbag spacer:
Carrier bearing drop:
Leaf spring:
Steering stabilizer:
Carli Pintop 2.5 Leveling System, Base, 3” Lift, 2003-09 Ram 2500/3500, Diesel
$4,153.00
- Get It Fast with Same-day Dispatch
- Free Shipping over $199
- All Reman Parts Ship for $299
1-2 day delivery for most. Expedited shipping options available at checkout.
Have questions? We’re here to help.
Call us at 1-800-347-1188 or chat with our tech support.
Product details
Carli's most popular system, The pintop kit boasts Remote Reservoir King 2.5" shocks. Designed and tuned in house for the customer looking for substantial on and offroad performance improvement.
Carli Pintop Systems provide a moderate lift and the added confidence of larger diameter shocks. They are a perfect blend of a comfortable on-road ride with all the harsh edges rounded and confident light- to medium-duty off-roading. The system features Carli-specific, blueprinted, King 2.5 shocks on all four corners. With a 2.5-inch diameter shock body these Pintop shocks delver 55% more piston surface area than a 2.0-inch shock. Carli engineers have designed a custom piston to produce proper base flow rates and optimize performance in robust ¾-ton and one-ton platforms. The Carli-spec shocks also feature shafts machined and polished from a solid piece of 17-4 stainless. The system delivers a dramatic increase is travel and the included adjustable track bar adds stability countering the sloppiness that can lead to Death Wobble. The truck will sit higher in the front for a level look and have more wheel travel thanks to the lighter rate Carli coil springs.
Carli Pintop Systems provide a moderate lift and the added confidence of larger diameter shocks. They are a perfect blend of a comfortable on-road ride with all the harsh edges rounded and confident light- to medium-duty off-roading. The system features Carli-specific, blueprinted, King 2.5 shocks on all four corners. With a 2.5-inch diameter shock body these Pintop shocks delver 55% more piston surface area than a 2.0-inch shock. Carli engineers have designed a custom piston to produce proper base flow rates and optimize performance in robust ¾-ton and one-ton platforms. The Carli-spec shocks also feature shafts machined and polished from a solid piece of 17-4 stainless. The system delivers a dramatic increase is travel and the included adjustable track bar adds stability countering the sloppiness that can lead to Death Wobble. The truck will sit higher in the front for a level look and have more wheel travel thanks to the lighter rate Carli coil springs.

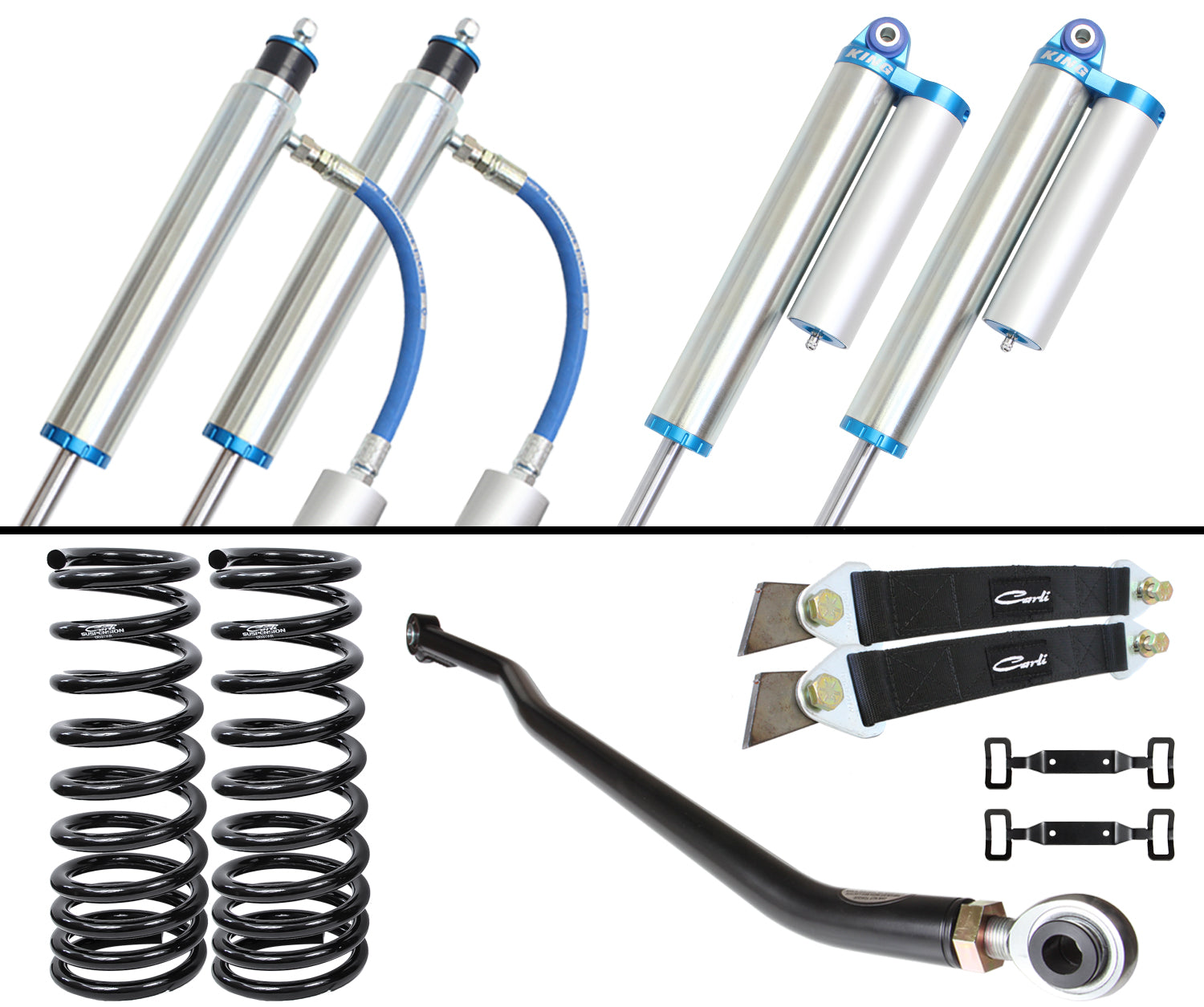

- System includes Multi-rate front coil springs, front and rear shock package, and adjustable track bar.
- Truck wil sit 2.5-3" higher (year/cab coniguration dependent) and wheel travel will be increased by 50% thanks to the taller, lighter rate coil springs.
- Fits up to 37" tires with ease for a more aggresize appearance and better offroad performance.
- Requires but does not include leaf spring option and sway bar option.
CA Residents:
Prop 65 Warning
WARNING
This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Specifications
| Brand | Carli Suspension |
| UPC | 883584150787 |
| Shipping Width | 13.00 in |
| Shipping Length | 12.00 in |
| Shipping Depth | 37.00 in |
| Shipping Weight | 173.0000 LB |
Technical Notes
- Optional Parts to support this system:
- Sway Bar Options: CS-DTSB6-03 or CS-DEL6-12 or CS-DEL6-10,
- Pittman Arm: FTS-93012,
- Leaf Spring Options: CS-DFSP-6-10-D
- Rear Shock Mount - Driver: CS-DRSMD
- Rear Shock Mount - Passenger: CS-DRSMP
- Long Travel Bags: CS-DLTB-03-4.0 or CS-DLTB-12-D
- Airbag Spacer: CS-AIRBAGSPCR
- Hydro Bump Kit - Front: CS-DHYDRO-F-6
- Steering Stabilizer: CS-DSSOSK-T or CS-DHMSS-03-T or CS-DLMSS-T
- Carrier Bearing Drop: CS-CARRIERDROP-D
- Axle Truss: CS-AAMTRUSS
