Carli E-Venture System, Base, 4.5/5.5” Lift, 2017-22 Ford F250/F350, Diesel, 4x4
- Carli Suspension
- SKU:CS-F45-EV25-17
$7,385.00
On backorder - will ship upon availability
SELECT build options
Leaf spring: *
Sway bar: *
Recommended add-ons
Carrier bearing drop:
Leaf spring shackle:
Long travel bags:
Radius arms:
Steering stabilizer high mount:
Steering stabilizer low mount:
Trophy hitch:
Carli E-Venture System, Base, 4.5/5.5” Lift, 2017-22 Ford F250/F350, Diesel, 4x4
$7,385.00
- Get It Fast with Same-day Dispatch
- Free Shipping over $199
- All Reman Parts Ship for $299
1-2 day delivery for most. Expedited shipping options available at checkout.
Have questions? We’re here to help.
Call us at 1-800-347-1188 or chat with our tech support.
Product details
Elevate your Ford's performance to new heights with the Carli E-venture System: The absolute BEST performance in any situation, this system reads and reacts to the terrain 250 times PER SECOND to ensure the best ride possible.
Carli E-Venture Suspension Systems represent the pinnacle of intelligent suspension technology, both on-road and off-road. Gathering data input via an engine mounted sensor and factory sensors via the OBDII port, the E-Venture’s in-cab computer processes information through Carli's proprietary algorithm, allowing the shocks to react to the terrain 250 times per second, ensuring optimized ride and handling on tarmac or trail. E-Venture shocks feature multiple performance modes, allowing you to customize your ride according to your preferences. Soften the shocks for smooth highway cruising or stiffen them up for rugged trail adventures. Additionally, this advanced system enables users to adjust pitch, roll, brake, throttle, and steering response, tailoring performance precisely to the user’s needs. Even when your truck is fully loaded, the E-Venture system offers a dedicated hauling feature with various adjustments to maintain control and stability. You can expect more control, improved bottom-out resistance without compromise, a more commanding view of the road, improved off-road performance, and a stylish aggressive look.
Carli E-Venture Suspension Systems represent the pinnacle of intelligent suspension technology, both on-road and off-road. Gathering data input via an engine mounted sensor and factory sensors via the OBDII port, the E-Venture’s in-cab computer processes information through Carli's proprietary algorithm, allowing the shocks to react to the terrain 250 times per second, ensuring optimized ride and handling on tarmac or trail. E-Venture shocks feature multiple performance modes, allowing you to customize your ride according to your preferences. Soften the shocks for smooth highway cruising or stiffen them up for rugged trail adventures. Additionally, this advanced system enables users to adjust pitch, roll, brake, throttle, and steering response, tailoring performance precisely to the user’s needs. Even when your truck is fully loaded, the E-Venture system offers a dedicated hauling feature with various adjustments to maintain control and stability. You can expect more control, improved bottom-out resistance without compromise, a more commanding view of the road, improved off-road performance, and a stylish aggressive look.
- Select from Mountain, Street, and Desert mode to choose the best setting for any terrain. Each setting has been EXTENSIVELY refined and can be activated instantaneously with the push of a button.
- Pro Mode allows users to adjust the Pitch, Roll, Brake, Throttle and Steering Response. Don’t worry, if your curiosity gets ahead of you or you failed to track your changes, we’ve implemented a “Restore Default” setting.
- Rear Load Adjustment feature gives the user control over the rear dampers. When loaded, the rear can be adjusted to balance comfort and support OR max the rear support to prioritize load support.

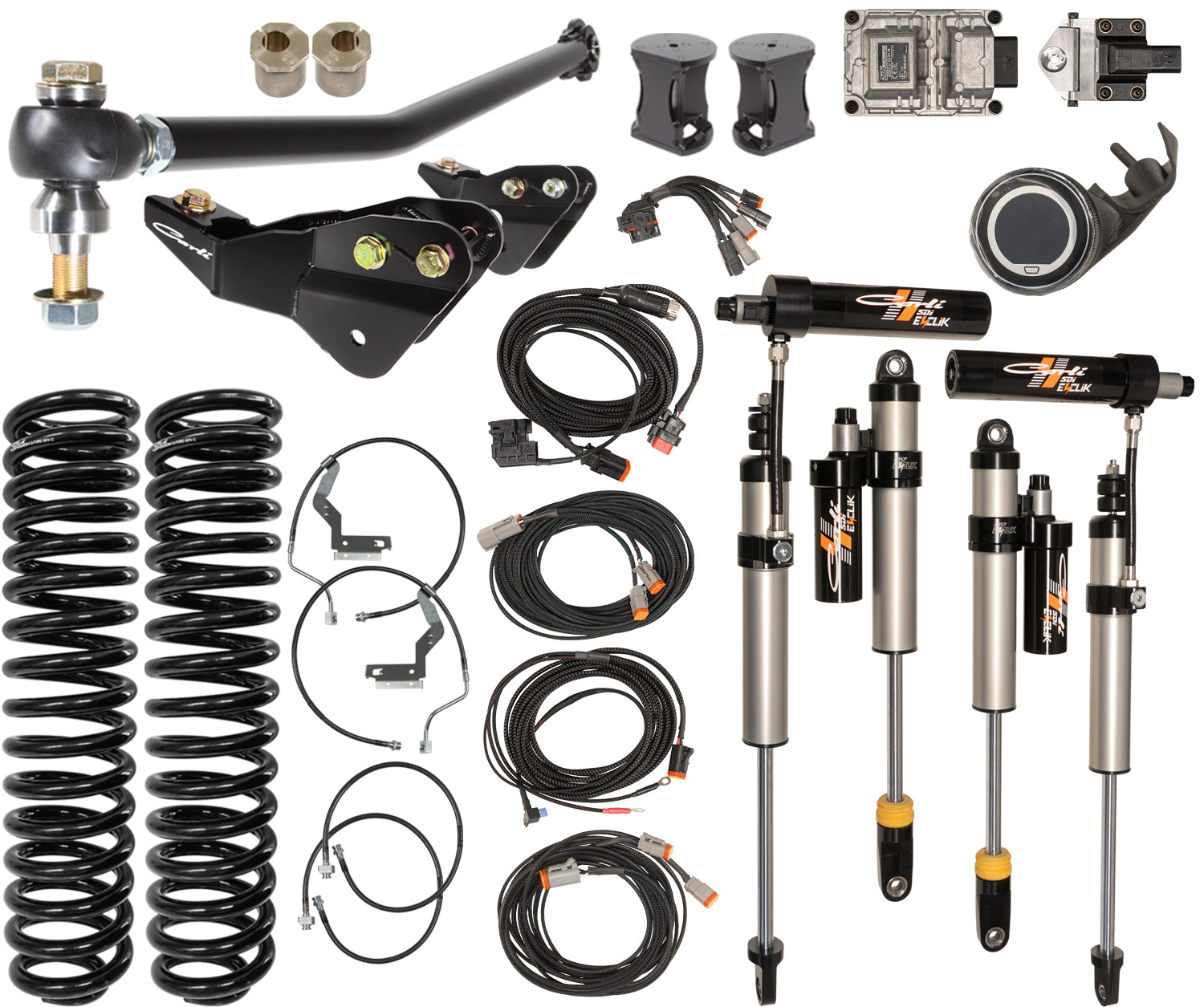

- System includes front and rear shock package, multi rate coil springs, brake line kit, radius arm drop brackets bump stop drops, caster correction shims and adjustable track bar.
- Increases wheel travel to 10.25" front and 13.0" rear.
CA Residents:
Prop 65 Warning
WARNING
This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Specifications
| Brand | Carli Suspension |
| UPC | 883584135906 |
| Shipping Width | 13.00 in |
| Shipping Length | 12.00 in |
| Shipping Depth | 37.00 in |
| Shipping Weight | 157.0000 LB |
Technical Notes
- Required and Optional Parts to support this system:
- Sway Bar Options (REQUIRED): CS-FELKIT-45-17 or CS-FTSB-45-17
- Radius Arms: CS-FARA-45-05
- Leaf Spring Options (REQUIRED): CS-FFSP-17 or CS-FPAP-45-17
- Leaf Spring Shackle: CS-FSHACKLE-11
- Long Travel Bags: CS-FLTB-17-35 or CS-FLTB-17-40 or CS-FLTB-17-45
- Steering Stabilizer - High mount: CS-FHMSS-17
- Steering Stabilizer - Low mount: CS-FLMSS-05
- Carrier Bearing Drop: CS-CARRIERDROP-F
- Trophy Hitch: CS-FHITCH-1723
