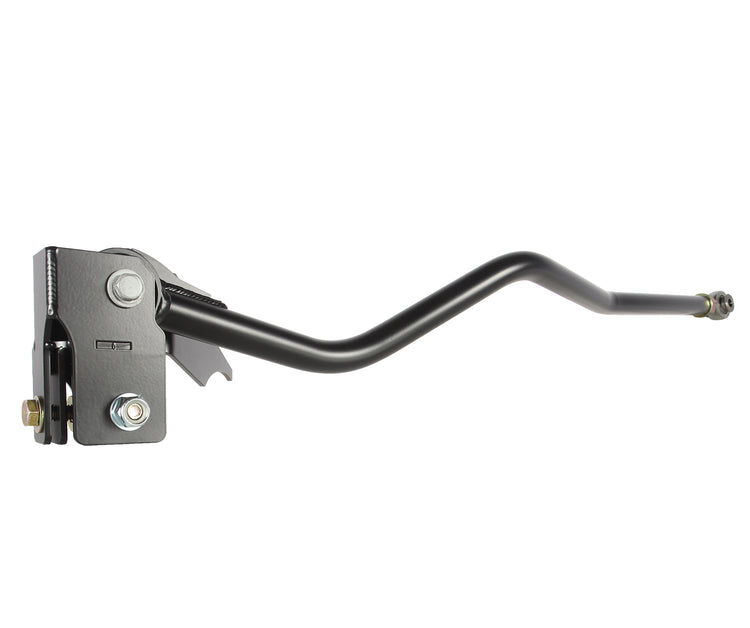

Carli Rear Adjustable Track Bar for 2007-17 Jeep JKU
- Carli Suspension
- SKU:CS-JATB-07-R
$450.00
10 in stock
Recommended add-ons
Carli Rear Adjustable Track Bar for 2007-17 Jeep JKU
$450.00
- Get It Fast with Same-day Dispatch
- Free Shipping over $199
- All Reman Parts Ship for $299
1-2 day delivery for most. Expedited shipping options available at checkout.
Have questions? We’re here to help.
Call us at 1-800-347-1188 or chat with our tech support.
Product details
The Carli Adjustable Track bar solves all of the issues commonly associated with weak OEM track bars and is a perfect fit for any Jeep owner with a 2.5"-3" lift lookig for a strong replacement.

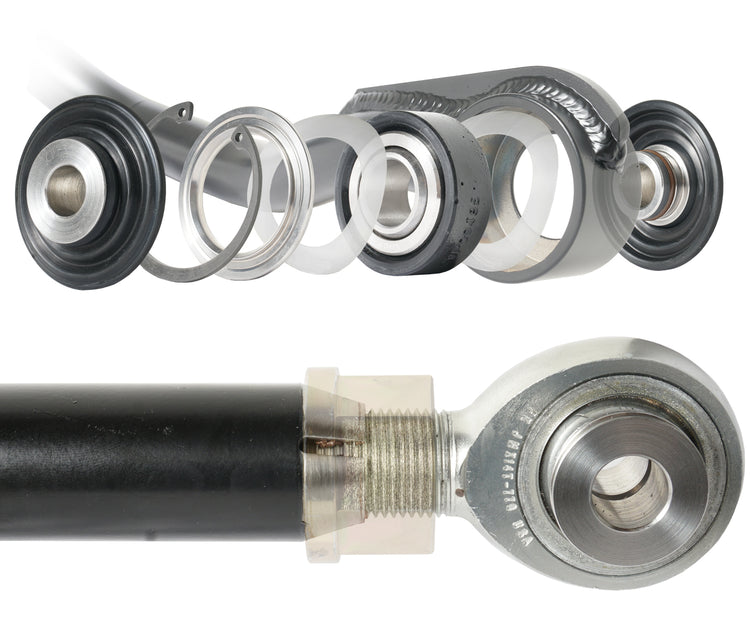

Carli suspension systems use an adjustable track bar up front and the combination of an adjustable track bar and riser in the rear to correct geometry, center the axles after lifting the JK, and ensure the axle have as little “Yaw,” lateral axle movement causing a wagging feeling during suspension cycling, as possible. Carli adjustable track bars are constructed from ¼-inch wall DOM tubing and use 7/8-inch heat-treated chromoly FK Bearings Heim joints locked in by Carli’s proprietary Jammit nut that provides 100% more surface area than a standard jam-nut. The fixed end of Carli adjustable track bars features our proprietary CUB joint which uses a proven FK Bearings 7/8-inch uniball at its center. Custom molded bushings are pressed on to encapsulate the uniball then the assembly is pressed into the huge, gusseted housing of the track bar with a stainless safety washer and retained with a snap ring.
Carli suspension systems use an adjustable track bar up front and the combination of an adjustable track bar and riser in the rear to correct geometry, center the axles after lifting the JK, and ensure the axle have as little “Yaw,” lateral axle movement causing a wagging feeling during suspension cycling, as possible. Carli adjustable track bars are constructed from ¼-inch wall DOM tubing and use 7/8-inch heat-treated chromoly FK Bearings Heim joints locked in by Carli’s proprietary Jammit nut that provides 100% more surface area than a standard jam-nut. The fixed end of Carli adjustable track bars features our proprietary CUB joint which uses a proven FK Bearings 7/8-inch uniball at its center. Custom molded bushings are pressed on to encapsulate the uniball then the assembly is pressed into the huge, gusseted housing of the track bar with a stainless safety washer and retained with a snap ring.
- Fits 2007-2017 Jeep JKU 4x4 with 2.5"-3" of lift.
- 1/4" wall construction and 7/8" FK heim provides rigid strength.
- Features Carli's signature CUB joint on the frams wide mounting position to minimize vibration and maximize lifespan.
- Fully rebuildable.
- Works ONLY with Carli Rear Track Bar Riser (CS-JATB-07-R-RISER)
CA Residents:
Prop 65 Warning
WARNING
This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Specifications
| Brand | Carli Suspension |
| UPC | 883584149941 |
| Shipping Width | 6.00 in |
| Shipping Length | 4.00 in |
| Shipping Depth | 43.00 in |
| Shipping Weight | 12.0000 LB |
Technical Notes
- CARLI 14-23 RAM 2500 4X4 DIESEL CARLI SPEC 2.0" RR FRONT & REAR SHOCK PKG 3.25" LIFT RES MOUNTS & BRAKE LINE TABS
