ICON 2005-2023 Toyota Tacoma, 0-1.5” Lift, Rear, V.S. 2.5 Aluminum Series Shock Absorbers, Remote Reservoir w/ CDXS, Pair
- ICON Vehicle Dynamics
- SKU:57805XP
On backorder - will ship upon availability
Recommended add-ons
ICON 2005-2023 Toyota Tacoma, 0-1.5” Lift, Rear, V.S. 2.5 Aluminum Series Shock Absorbers, Remote Reservoir w/ CDXS, Pair
- Get It Fast with Same-day Dispatch
- Free Shipping over $199
- All Reman Parts Ship for $299
1-2 day delivery for most. Expedited shipping options available at checkout.
Have questions? We’re here to help.
Product details

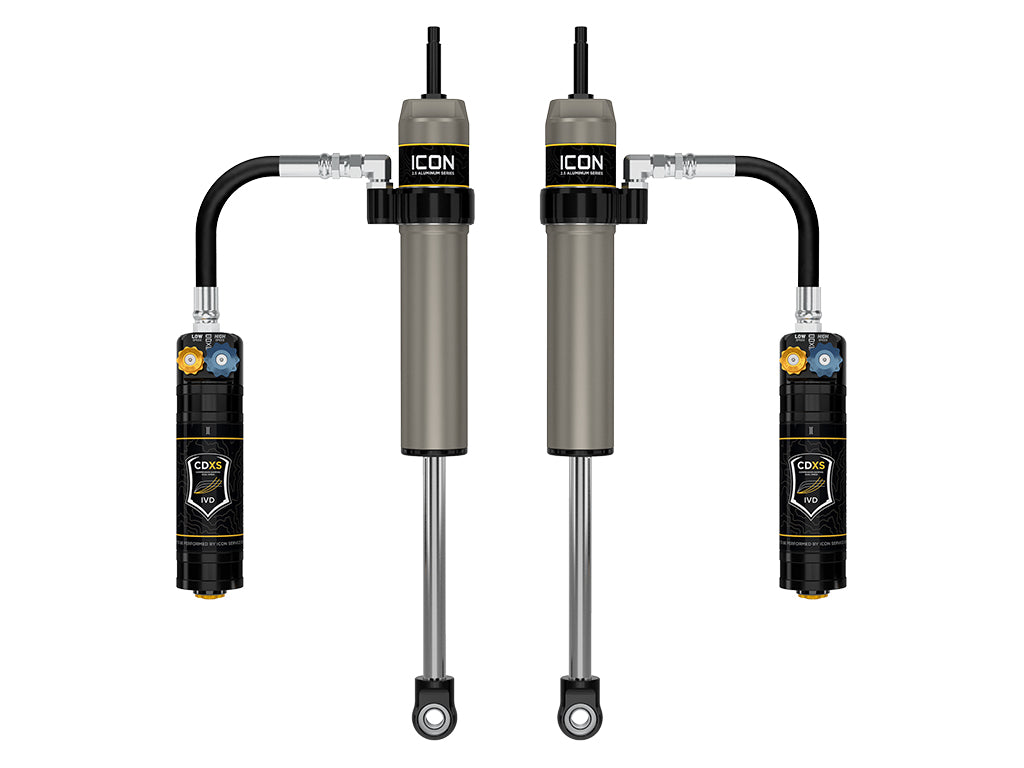

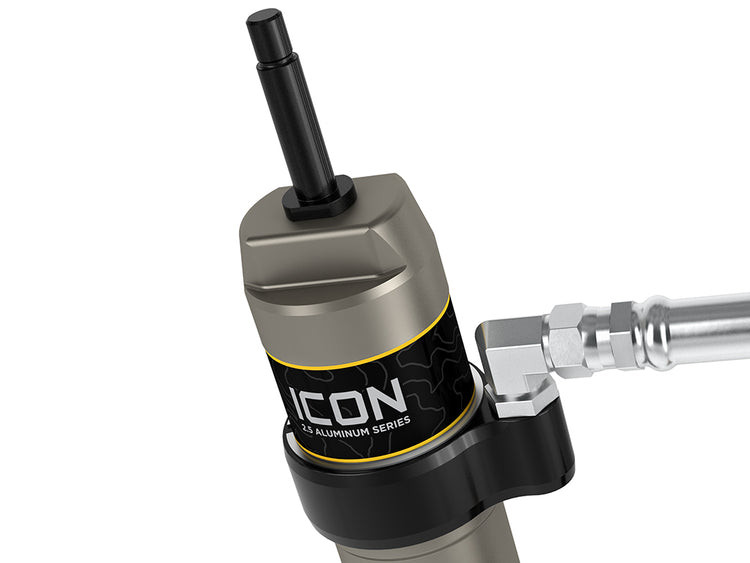

ICON’s 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Featuring one-piece impact extruded aluminum cylinders, these 2.5 Aluminum Series shocks offer lighter weight, improved corrosion resistance, and a more uniform finish than traditional plated steel cylinders. Like all ICON'S Shock Absorbers, 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. ICON's exclusive Compression Damping Dual Speed (CDXS) valves are included for precisely dialing in your suspension performance. CDXS controls fluid flow under compression, with independent adjustability of high speed and low speed compression force. 10 discreet detented settings for both low and high-speed adjustment knobs allow separate adjustments for handling response and overall aggressiveness.
- 6061 aircraft grade aluminum CNC machined components

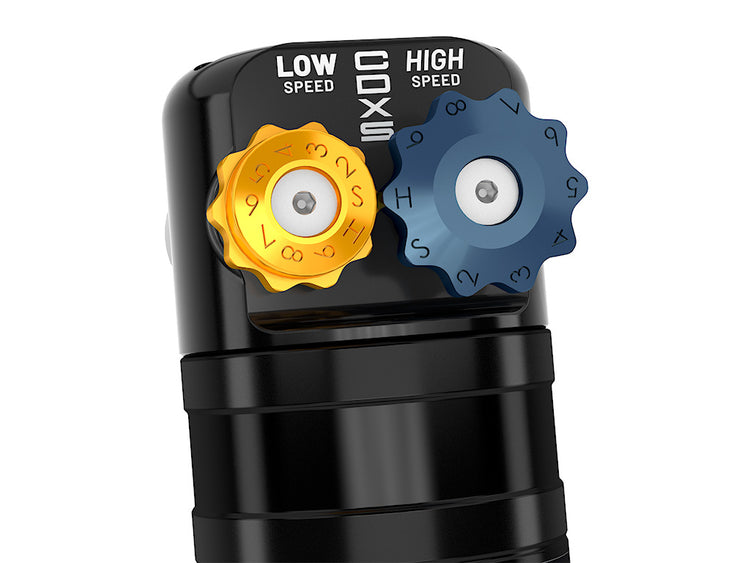

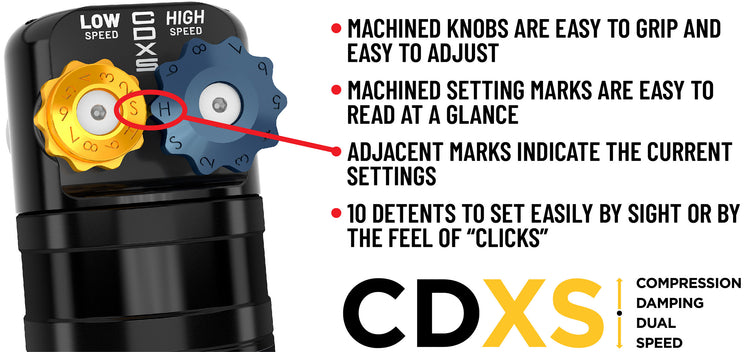

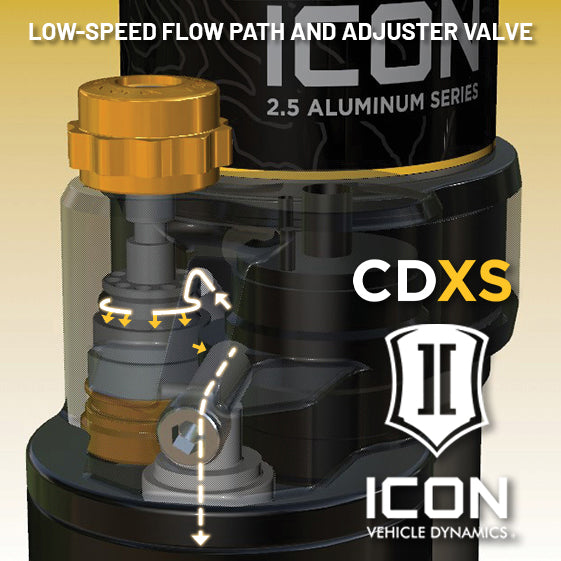

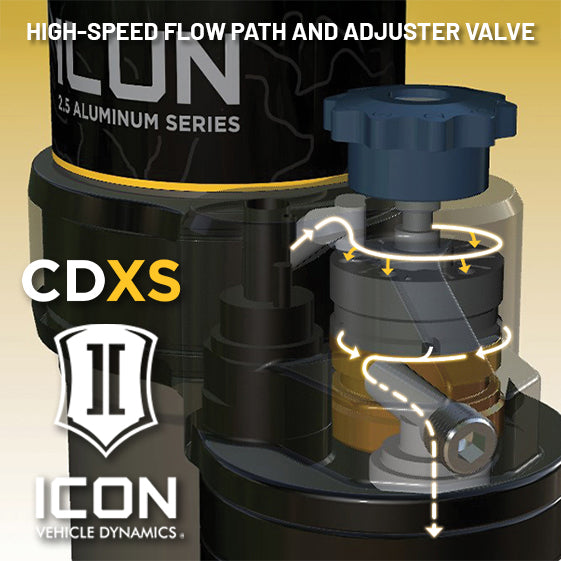

- ICON CDXS equipped for independent adjustability of high speed and low speed compression force for handling response and aggressiveness
- Nitrogen charged monotube design with remote reservoir
- Double-sealed Schrader caps reduce risk of damage
- One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
- ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
- One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- 7/8” diameter induction hardened, chrome plated shock shaft
- Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
- PTFE lined spherical bearings and application specific mounting hardware
- Premium grade shock oil for consistent suspension damping along a wide temperature range
- 100% Rebuildable and revalveable
WARNING
This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Specifications
| Brand | ICON Vehicle Dynamics |
| UPC | 840103435978 |
| Shipping Width | 15.00 in |
| Shipping Length | 39.00 in |
| Shipping Depth | 9.00 in |
| Shipping Weight | 29.0000 LB |
Technical Notes
- APPLICATION NOTE #185 : Will not fit 2WD Tacoma with 5 wheel lug studs
- TECH NOTE: Compatible with 0-2" of rear lift on most Tacoma submodels
- TECH NOTE: Compatible with 0-1.5" of rear lift on Tacoma TRD Pro
