ICON 2014-2026 Ram 2500 4WD, Diesel, Coil Spring Rear, 4.5" Lift, Stage 5 Suspension System
- ICON Vehicle Dynamics
- SKU:K214525
$7,796.15
On backorder - will ship upon availability
Recommended add-ons
ICON 2014-2026 Ram 2500 4WD, Diesel, Coil Spring Rear, 4.5" Lift, Stage 5 Suspension System
$7,796.15
- Get It Fast with Same-day Dispatch
- Free Shipping over $199
- All Reman Parts Ship for $299
1-2 day delivery for most. Expedited shipping options available at checkout.
Have questions? We’re here to help.
Call us at 1-800-347-1188 or chat with our tech support.
Product details

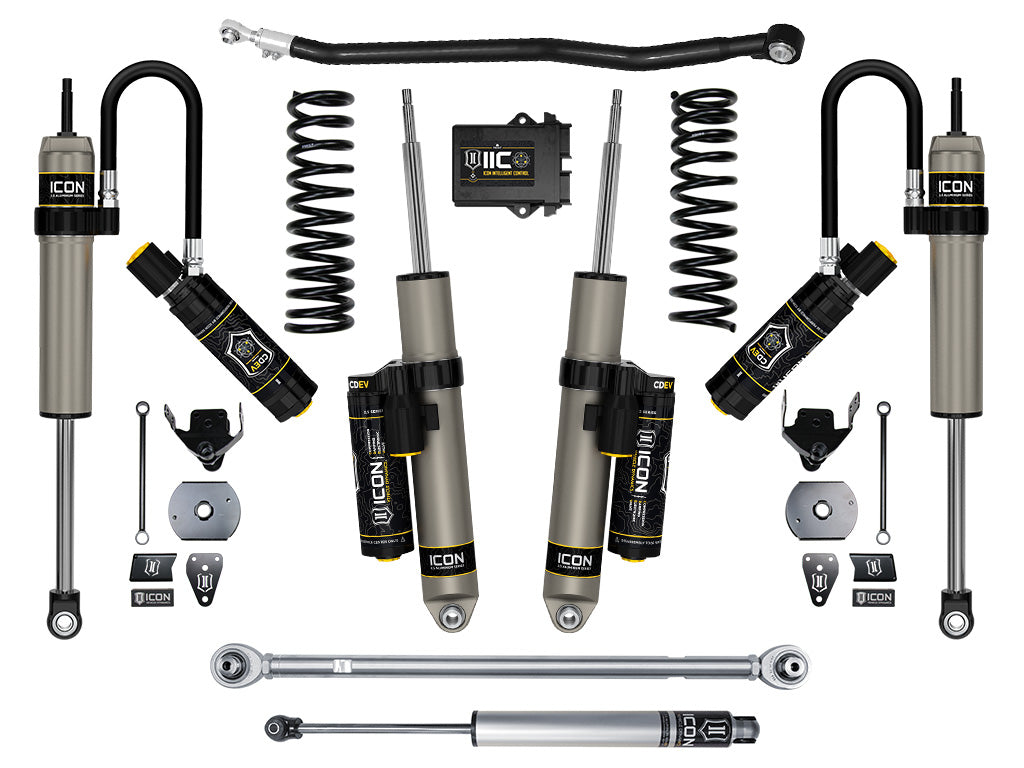

ICON Vehicle Dynamics suspension systems for the 2014-2026 Ram 2500 4WD were designed with exceptional performance and ride quality in mind. This Stage 5 system includes ICON-engineered 4.5” dual rate coil springs, high-strength laser cut bracketry, billet bump stop spacers, fabricated rear coil spacers, and all hardware necessary for a complete install. Vehicle-specific ICON 2.5 Aluminum Series remote reservoir shocks help deliver balanced performance front to rear. Focus on driving and let ICON Intelligent Control (IIC) read the terrain and make near-instant adjustments via the Compression Damping Electronic Valve (CDEV) at each individual shock. Control the system wirelessly through the IIC app on your phone and once configured the system functions without driver input. These features make this Stage 5 system a huge upgrade for 2014-2026 Ram 2500 4WD trucks that are in need of a comfortable on-road ride, but also require the ability to be used to their full potential during spirited off-road driving.
- ICON-engineered dual rate front coil springs deliver 4.5" of front lift and exceptional vehicle control over varying terrain
- Allows use of larger, more aggressive wheel tire combinations up to 37" diameter
- Vehicle specific tuned front and rear 2.5 Aluminum Series remote reservoir shocks provide superior damping and ride quality
- ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
- ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
- Increased wheel travel and suspension performance over stock with no change in towing capacity
- Adjustable front and rear track bars realign axles and improve strength
- PTFE lined spherical track bar bearings eliminate bushing deflection for improved handling characteristics
- 2.0 Aluminum Series steering stabilizer helps control larger tires with increased steering damping
- Precision CNC laser cut, fabricated radius arm drop brackets correct suspension geometry
- Fabricated rear coil spacers provide 2" of rear lift and allow use of stock rear coil springs
- Level stance from front to rear of vehicle
CA Residents:
Prop 65 Warning
WARNING
This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Specifications
| Brand | ICON Vehicle Dynamics |
| UPC | 840103436845 |
| Shipping Width | 19.00 in |
| Shipping Length | 26.00 in |
| Shipping Depth | 10.00 in |
| Shipping Weight | 231.0000 LB |
Technical Notes
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.25” Backspace / 13mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.50" Backspace / 12mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.50" Backspace / 12mm Offset
- Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required)
- APPLICATION NOTE #1: Only fits 4WD models
- APPLICATION NOTE #6: Springs Are Rated For Diesel Engines Only
- APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
- APPLICATION NOTE #103: Vehicles Equipped With 2 Piece Driveshafts Require Carrier Shim Kit 214211
- APPLICATION NOTE #105: Not For Vehicles With Rear Factory Air Ride
- APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
- APPLICATION NOTE #198: An iOS operated device is required to run ICON Intelligent Control app
- APPLICATION NOTE #607: 2019-2026 Ram 2500/3500 models require an aftermarket, high-angle front driveshaft to prevent bind. ICON part numbers 212511 or 212512 are recommended.
- APPLICATION NOTE #645: Provides 4.5" of front lift on most Ram 2500 submodels. Provides 2.5" of front lift on Ram 2500 Rebel.
