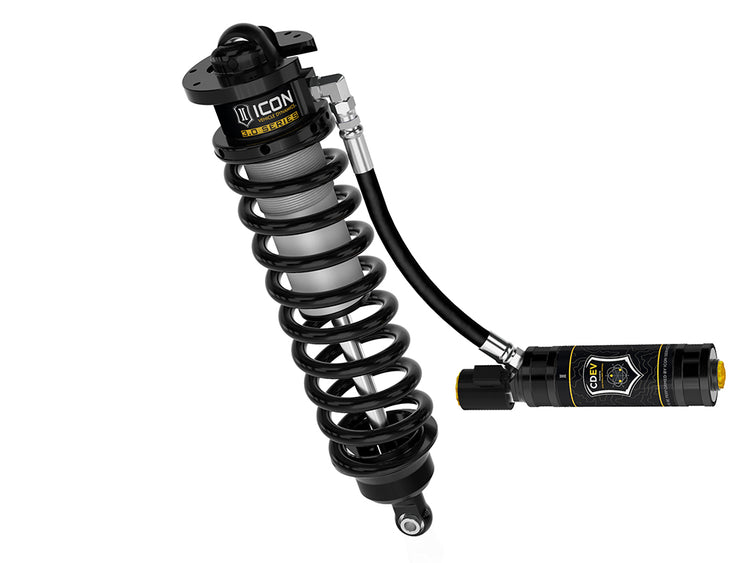

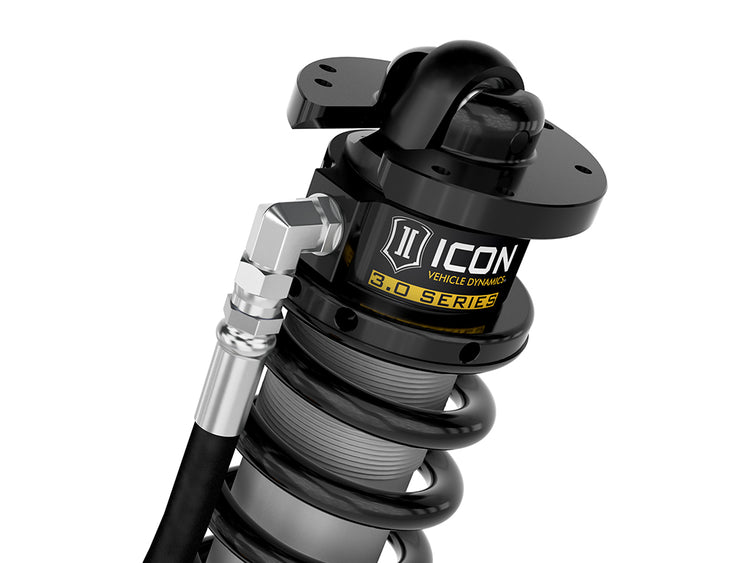

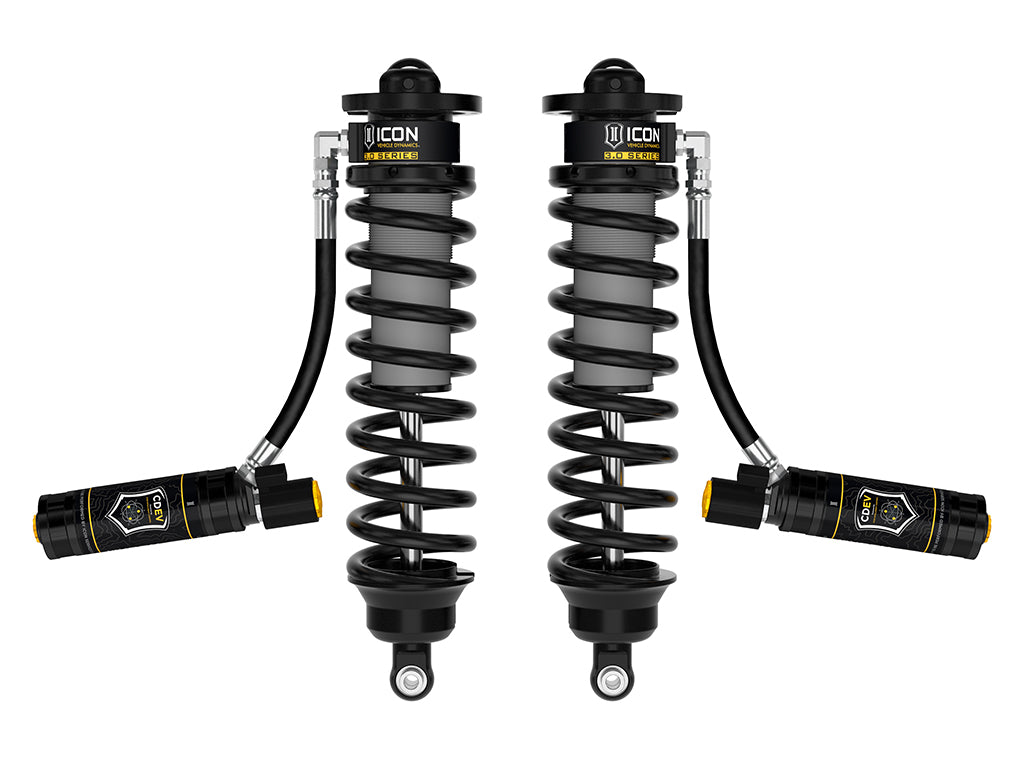

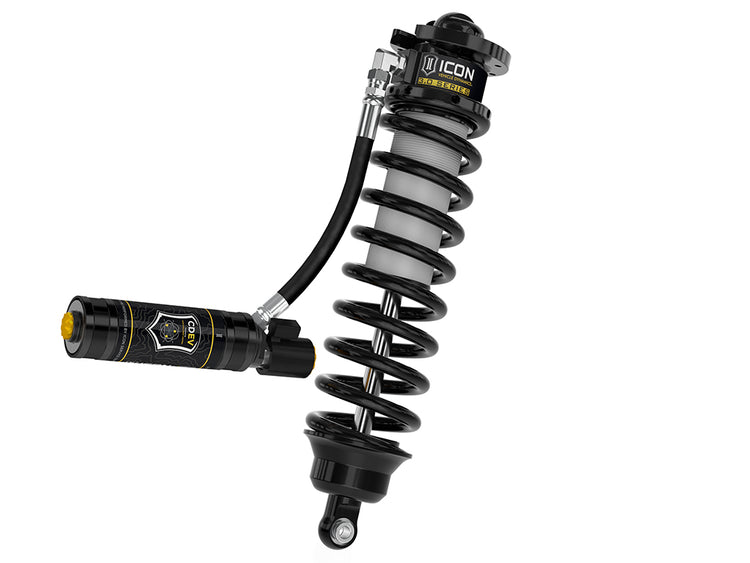

ICON 2017-2026 Ford F-250/F-350 Super Duty 4WD, 4-5.5” Lift, Front, V.S. 3.0 Series Coilover Conversion Kit, Remote Reservoir w/ CDEV
- ICON Vehicle Dynamics
- SKU:61801E
$0.00
On backorder - will ship upon availability
Recommended add-ons
Decrease quantity for ICON 2017-2026 Ford F-250/F-350 Super Duty 4WD, 4-5.5” Lift, Front, V.S. 3.0 Series Coilover Conversion Kit, Remote Reservoir w/ CDEV
Increase quantity for ICON 2017-2026 Ford F-250/F-350 Super Duty 4WD, 4-5.5” Lift, Front, V.S. 3.0 Series Coilover Conversion Kit, Remote Reservoir w/ CDEV
ICON 2017-2026 Ford F-250/F-350 Super Duty 4WD, 4-5.5” Lift, Front, V.S. 3.0 Series Coilover Conversion Kit, Remote Reservoir w/ CDEV
$0.00
- Get It Fast with Same-day Dispatch
- Free Shipping over $199
- All Reman Parts Ship for $299
1-2 day delivery for most. Expedited shipping options available at checkout.
Have questions? We’re here to help.
Call us at 1-800-347-1188 or chat with our tech support.
Product details
ICON's V.S. 3.0 Series Remote Reservoir CDEV Bolt-In Coilover Conversion Kit will add a new level of performance and adjustability to 2005-2026 F-250 and F-350 pickup trucks. The advantage of utilizing a coilover conversion kit is that they have been designed to increase the overall damping ability of the vehicle while at the same time allowing for user-defined ride height adjustment. 3.0 Series shocks boast 50% more piston surface area compared to 2.5 Series shocks. This translates into increased stability and vehicle control at the extremes of off-road use, with benefits also making themselves apparent in on-road driving conditions. Increased internal oil volume and more external surface area compared to 2.5 Series shocks offer improved heat dissipation and resistance to shock fade under hard use. Like all ICON shock absorbers, V.S. 3.0 Series shocks are 100% rebuildable and 100% revalveable. The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle. Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly.
- Bolt-in system fits in OE coil bucket location
- Coilover conversion allows for addition of secondary shock
- Vehicle specific design and tuning for superior shock damping and control
- 3.0” Body diameter for increased oil volume and larger piston area
- Ride height adjustable coilovers provide 4-5.5" or 4.75-6.25" of lift, depending on year model of truck
- Nitrogen charged monotube design with remote reservoir
- Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
- ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- One-piece linear compression/digressive rebound piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- 7/8” diameter induction hardened, chrome plated shock shaft
- ICON engineered coil springs guaranteed for life against sagging or breakage
- 6061 aircraft grade aluminum CNC machined components
- FK Rod End bearings for extended longevity and minimal deflection
- Cerakoted steel cylinders offer excellent corrosion resistance and consistent finish
- Fully rebuildable and revalveable
CA Residents:
Prop 65 Warning
WARNING
This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Specifications
| Brand | ICON Vehicle Dynamics |
| UPC | 840103436609 |
| Shipping Width | 13.00 in |
| Shipping Length | 31.00 in |
| Shipping Depth | 7.00 in |
| Shipping Weight | 70.0000 LB |
Technical Notes
- Factory Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
- Recommended Aftermarket Tires (2005-2016 models): 35" x 12.50" (37" x 12.50" with fender trimming and modifications required)
- Recommended Aftermarket Tires (2017-2026 models): 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required)
- APPLICATION NOTE #1: Only fits 4WD models
- APPLICATION NOTE #55: Shocks Are Fully Serviceable. Lift Heights Indicated Are For A Stock Equipped Vehicle.
- APPLICATION NOTE #88: Removal of the coil centering cup in factory coil bucket required for installation
- APPLICATION NOTE #115: Lift heights based on 4WD Crew Cab diesel
- APPLICATION NOTE #120: Secondary shock options available, contact ICON for more details.
- APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
- APPLICATION NOTE #198: An iOS operated device is required to run ICON Intelligent Control app
- APPLICATION NOTE #203: Also requires installation of applicable IIC kit and CDEV rear shocks
- APPLICATION NOTE #463: If installing with ICON 2.5 Series or 3.0 Series remote reservoir secondary shocks, reservoir doubler kit part number 611003 is also required
- APPLICATION NOTE #467: 2005-2019 Super Duty diesel models will have front lift height range of 4-5.5" over stock
- APPLICATION NOTE #468: 2020-2022 Super Duty diesel models without Tremor package will have front lift height range of 4.75-6.25" over stock
- APPLICATION NOTE #469: 2020-2022 Super Duty diesel models equipped with Tremor package will have front lift height range of 3.75-5.25" over stock
- APPLICATION NOTE #470: 2023-2026 Super Duty diesel models without Tremor package will have front lift height range of 4-5.5" over stock
- APPLICATION NOTE #471: 2023-2026 Super Duty diesel models equipped with Tremor package will have front lift height range of 3-4.5" over stock
- APPLICATION NOTE #472: 2023-2026 Super Duty gas models without Tremor package will have front lift height range of 4.5-6" over stock
- APPLICATION NOTE #473: 2023-2026 Super Duty gas models equipped with Tremor package will have front lift height range of 3.5-5" over stock
