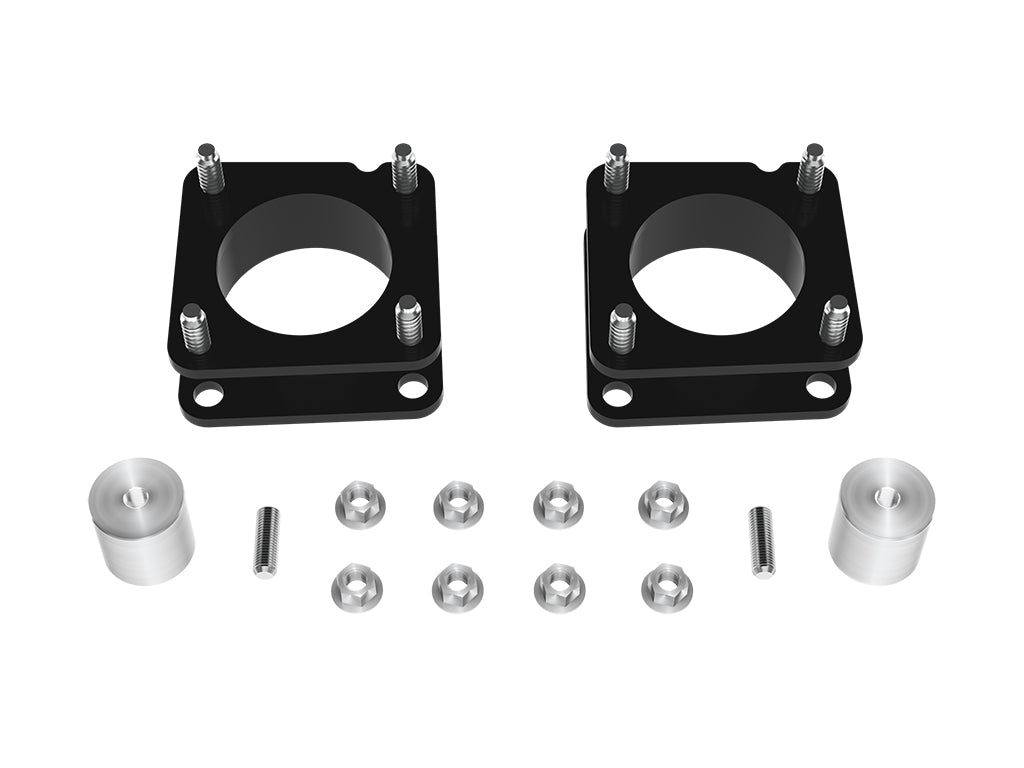

ICON Alloys 2022-2025 Toyota Tundra/2023-2025 Toyota Sequoia, 2.25" Lift, Front, Coilover Spacer Kit
- ICON Alloys
- SKU:IVD4111
$272.45
34 in stock
Recommended add-ons
ICON Alloys 2022-2025 Toyota Tundra/2023-2025 Toyota Sequoia, 2.25" Lift, Front, Coilover Spacer Kit
$272.45
- Get It Fast with Same-day Dispatch
- Free Shipping over $199
- All Reman Parts Ship for $299
1-2 day delivery for most. Expedited shipping options available at checkout.
Have questions? We’re here to help.
Call us at 1-800-347-1188 or chat with our tech support.
Product details
This leveling kit for the 2022-2025 Toyota Tundra and 2023-2025 Toyota Sequoia is perfect for the budget-minded customer looking to raise the front of their truck to provide clearance for larger/more aggressive wheel and tire combinations without breaking the bank. ICON's 2022-2025 Toyota Tundra/2023-2025 Toyota Sequoia Leveling Kit utilizes a vehicle specific design formulated to work with existing factory components and does not require disassembly of the front coilover for installation. The included bump stop spacers ensure the suspension never over compresses and the overall design keep ball joints and tie rods from binding, preventing damage from off-road use possible with other top load leveling spacers. It is finished with black powder coat for added corrosion resistance and offers a clean, sleek look.
- 2.25" increased ride front height
- Does not require disassembly of the shock for installation
- Vehicle specific design
- Black powder coat finish
- Bump stop spacer to keep shock from bottoming out
- Designed to keep ball joints and tie rods from binding
CA Residents:
Prop 65 Warning
WARNING
This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Specifications
| Brand | ICON Alloys |
| UPC | 840103414201 |
| Proxy Number | 4111 |
| Shipping Width | 7.00 in |
| Shipping Length | 14.00 in |
| Shipping Depth | 4.00 in |
| Shipping Weight | 15.0000 LB |
Technical Notes
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: 17x8.5" w/ 5.75" Backspace / 25mm Offset
- Recommended Aftermarket Wheels: 18x9" w/ 6.00" Backspace / 25mm Offset
- Recommended Aftermarket Wheels: 20x9" w/ 6.00" Backspace / 25mm Offset
- Recommended Aftermarket Tires: 35" x 12.50" (Fender trimming and modifications will be required.)
- APPLICATION NOTE #142: Not compatible with vehicles equipped with Load-Leveling Rear Height Control Air Suspension
- APPLICATION NOTE #144: Not compatible with TRD Pro
- APPLICATION NOTE #149: For 4WD models without TRD Off-Road Package ICON recommends using ICON Diff Drop (Part# 55156) or using Toyota TRD Axles (Part# 434200C020 Driver / 434100C020 Pass). Failure to do so could result in front axle damage.
- APPLICATION NOTE #153: Not compatible with Adaptive Variable Suspension (AVS) equipped vehicles
- APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
