ICON 2014-Up Ram 2500 4WD, 2.5" Lift, Stage 4 Suspension System
- ICON Vehicle Dynamics
- SKU:K212544
$3,578.27
Low stock: 3 left
Recommended add-ons
ICON 2014-Up Ram 2500 4WD, 2.5" Lift, Stage 4 Suspension System
$3,578.27
- Get It Fast with Same-day Dispatch
- Free Shipping over $199
- All Reman Parts Ship for $299
1-2 day delivery for most. Expedited shipping options available at checkout.
Have questions? We’re here to help.
Call us at 1-800-347-1188 or chat with our tech support.
Product details

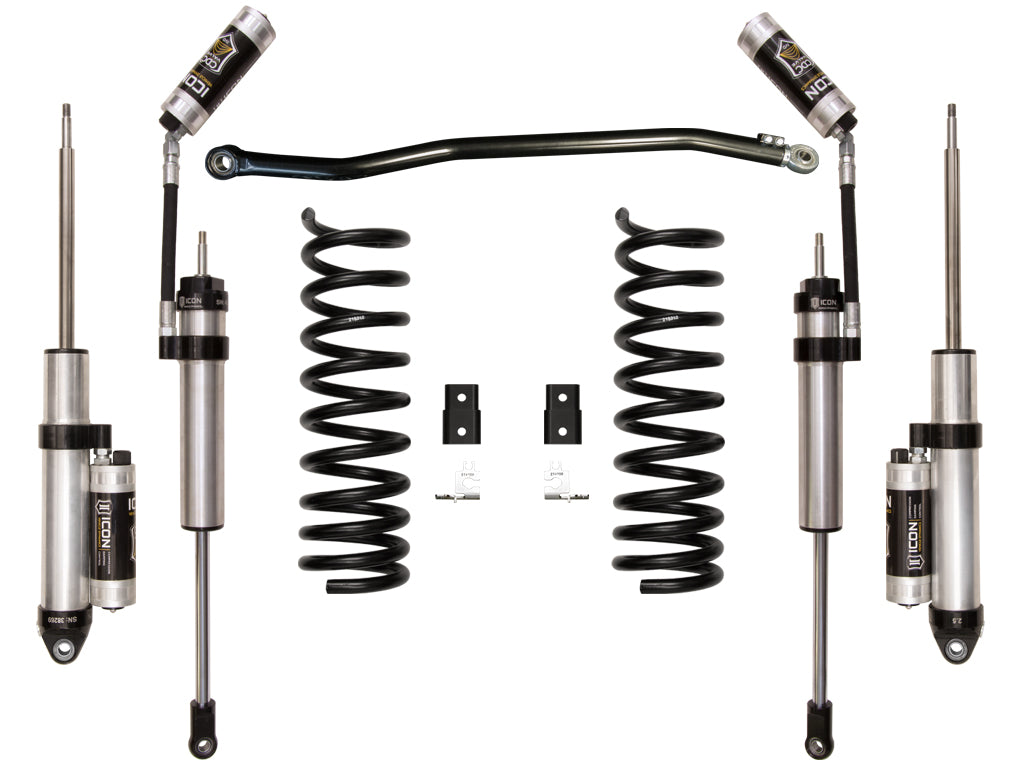

ICON's 2014-UP Ram 2500 4WD 2.5” Stage 4 Suspension System is made up of dual rate front coil springs, necessary bracketry and hardware, front adjustable track bar, as well as 2.5 Aluminum Series reservoir front and rear shocks with CDCV. This system improves ride quality and performance both on and off road. The ICON stage 4 system is great for towing, rough construction site terrains, and country dirt roads all while keeping a smooth highway feel. ICON 2.5" reservoir shocks with CDCV ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. The ICON CDC Valve upgrade is included in this stage for those desiring an easy way to tune the ride externally. An adjustable track bar with FK bearings is used to not only improve rigidity over the flexible factory joints, but offer adjustability to center the front axle under the truck. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.
- ICON engineered dual rate coil springs with match tuned 2.5 Aluminum Series shocks with CDCV
- Adjustable track bar with PTFE lined FK bearings
- Increased wheel travel and ride quality over stock with no change in towing capacity
- Less body roll than stock
- No drive shaft modifications needed
CA Residents:
Prop 65 Warning
WARNING
This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Specifications
| Brand | ICON Vehicle Dynamics |
| UPC | 840103415314 |
| Proxy Number | 212544 |
| Shipping Width | 13.00 in |
| Shipping Length | 21.00 in |
| Shipping Depth | 7.00 in |
| Shipping Weight | 120.0000 LB |
Technical Notes
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.25” BS / 13mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.50" BS / 12mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.50" BS / 12mm Offset
- Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required)
- APPLICATION NOTE #6: Springs Are Rated For Diesel Engines Only
- APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
- APPLICATION NOTE #105: Not For Vehicles With Rear Factory Air Ride
- Ships in Multiple Boxes
