ICON 2020-Up Jeep Gladiator, 2.5" Lift, Stage 5 Suspension System, Billet UCA
- ICON Vehicle Dynamics
- SKU:K22105
$5,061.52$5,402.48
6% off
On backorder - will ship upon availability
Recommended add-ons
ICON 2020-Up Jeep Gladiator, 2.5" Lift, Stage 5 Suspension System, Billet UCA
$5,061.52$5,402.48
6% off
- Get It Fast with Same-day Dispatch
- Free Shipping over $199
- All Reman Parts Ship for $299
1-2 day delivery for most. Expedited shipping options available at checkout.
Have questions? We’re here to help.
Call us at 1-800-347-1188 or chat with our tech support.
Product details

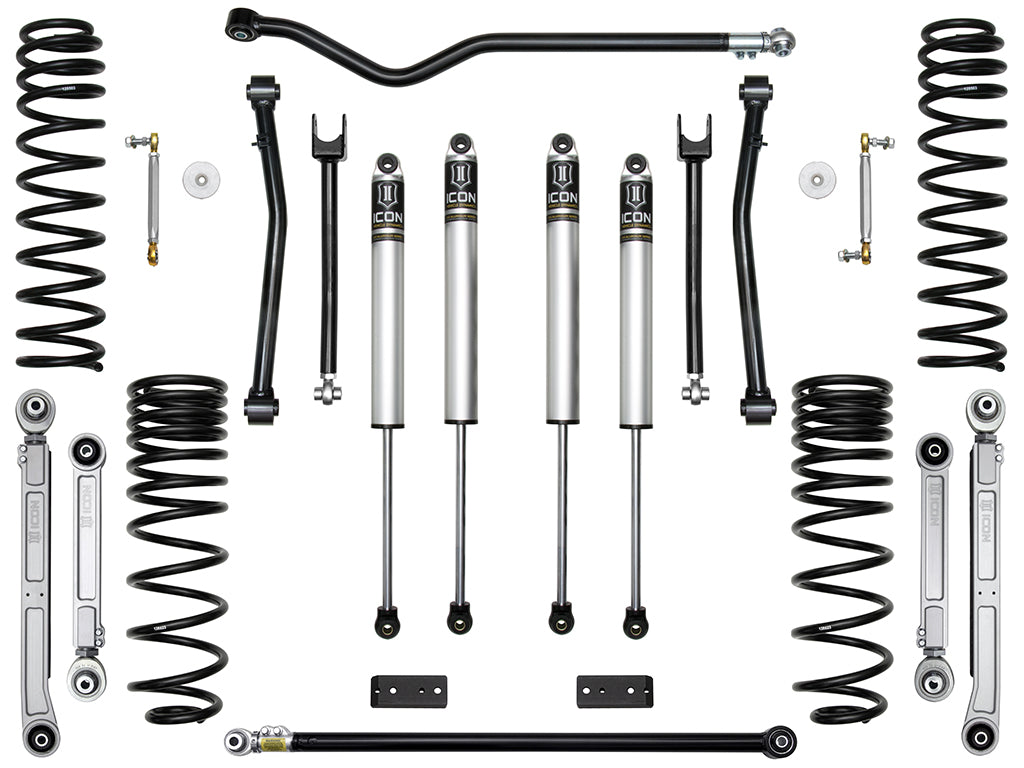

The Stage 5 ICON 2.5” Suspension System for the Jeep Gladiator is the ideal setup for significantly improving off-road performance and overall ride quality for the application that will see frequent moderate off-road use. This complete suspension system features 2.0 Aluminum Series shocks, 2.5” lift dual-rate front coil springs, tubular steel fixed lower and adjustable upper front links, billet front sway bar links, a triple-rate rear coil spring kit, billet aluminum adjustable upper and lower rear links, a rear sway bar relocation kit, front and rear adjustable track bars, and all necessary hardware for install. This system provides an increase of over 30% front and 20% rear wheel travel and was designed around the use of a 35” tire. For those looking to run a 37” tire this can be achieved with the ICON Jeep JT Bump Stop Spacer Kit (Part #22071).
- 2.5" lift height
- Fits 35" tires (37" with extended bump stop spacer kit)
- 33% front, 23% rear increase in wheel travel
- Improves on and off-road ride quality over stock
- Front upper and lower links included for caster angle correction and improved front end articulation
- Rear billet upper and lower links improve rear end articulation and allow for on-vehicle pinion angle adjustment
- Dual rate front coil springs with lifetime guarantee against sagging/breakage
- Triple rate rear coil springs with ICON-engineered droop, ride, and overload rates
- 2.0 Aluminum Series shocks with vehicle specific valving
- Front and rear track bars ensure proper alignment and improved articulation
- Adjustable, billet aluminum front sway bar links
- 100% bolt-on system makes for an easy install
- “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
CA Residents:
Prop 65 Warning
WARNING
This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Specifications
| Brand | ICON Vehicle Dynamics |
| UPC | 840103415895 |
| Proxy Number | 22105 |
| Shipping Width | 13.00 in |
| Shipping Length | 21.00 in |
| Shipping Depth | 7.00 in |
| Shipping Weight | 174.0000 LB |
Technical Notes
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.5” Backspace / -6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 4.5” Backspace / -12mm Offset
- Recommended Aftermarket Tires: 35" x 12.50" (37" x 12.50" with optional bump stop spacer kit PN: 22071)
- APPLICATION NOTE #127: Will Not Fit Gladiator Mojave Trim
- APPLICATION NOTE #150: Shocks Are Fully Serviceable
- TECH NOTE: ICON’s advertised lift heights are based around a typical Jeep JT build which usually includes added weight of accessories such as heavier front bumper/winch. Lift heights may be higher than advertised if installed on a stock weighted vehicle.
- TECH NOTE: Diesel models will net approx. 1.75" of front lift over stock due to their heavier weight.
- Ships In Multiple Boxes
