ICON 1998-2007 Toyota Land Cruiser/Lexus LX470, 0-3" Lift, Stage 3 Suspension System
- ICON Vehicle Dynamics
- SKU:K53083
$3,051.89
On backorder - will ship upon availability
Recommended add-ons
ICON 1998-2007 Toyota Land Cruiser/Lexus LX470, 0-3" Lift, Stage 3 Suspension System
$3,051.89
- Get It Fast with Same-day Dispatch
- Free Shipping over $199
- All Reman Parts Ship for $299
1-2 day delivery for most. Expedited shipping options available at checkout.
Have questions? We’re here to help.
Call us at 1-800-347-1188 or chat with our tech support.
Product details

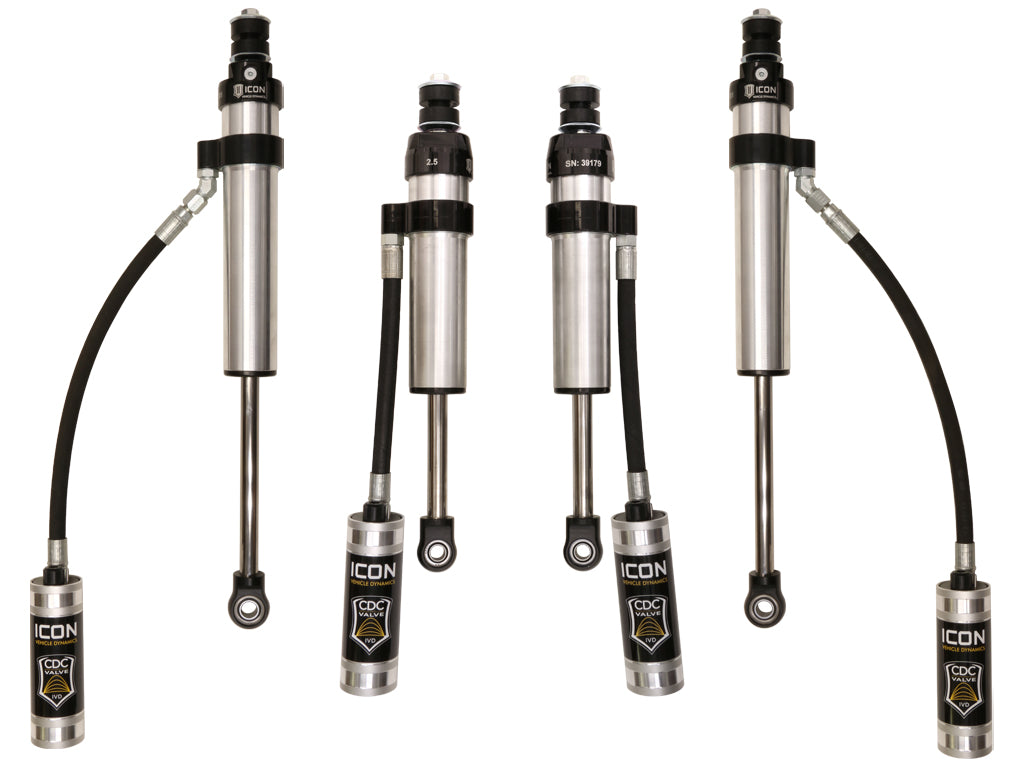

The 1998 - 2007 Toyota Land Cruiser 100 Series has a compact torsion bar IFS front suspension, and requires a lot of work to be done in a small space. When lift is added via torsion bar adjustment there is even more spring energy that must be absorbed to adequately control the vehicle. Keeping this in mind, those looking to achieve 0-3" of lift (aftermarket upper control required) can install the Stage 3 shock system for maximum suspension travel and performance with tuning adjustability. ICON engineers have developed a unique 2.5” diameter shock system, with remote reservoirs front and rear, that can handle these demands. 2.5 Aluminum Series reservoir shocks front and rear ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during extended off-road use. With a lower spherical rod end bearing and heavy-duty upper stem bushings, deflection is kept to a minimum for precise control of the suspension even under high loads. ICON's CDC Valve upgrade is included in this stage front and rear for those desiring an easy way to tune the ride externally with 10 settings from soft to hard.
- Vehicle specific tuned front and rear shocks for superior shock damping and control
- Remote reservoirs provided for extended shock damping performance
- ICON CDCV equipped shocks front and rear for fully adjustable tuneability of your shocks
- 6061 Aircraft grade aluminum CNC machined components
- 2.5 Aluminum Series shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
- FK rod end bearings for extended longevity and minimal deflection
- No cutting or welding necessary for install
CA Residents:
Prop 65 Warning
WARNING
This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Specifications
| Brand | ICON Vehicle Dynamics |
| UPC | 840103417172 |
| Proxy Number | 53083 |
| Shipping Width | 10.00 in |
| Shipping Length | 39.00 in |
| Shipping Depth | 9.00 in |
| Shipping Weight | 57.0000 LB |
Technical Notes
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: 17x8.5 with 4.75” Backspace / 0mm Offset
- Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
- APPLICATION NOTE #55: Shocks are fully serviceable. Coilover heights indicated are for a stock equipped vehicle
- APPLICATION NOTE #58: Kits consist of shocks only. Additional components required to achieve desired lift height over stock.
- APPLICATION NOTE #71: Any kit with part# 57802P/CP in it with stock rear coil springs vehicle will ride in bump zone of shock. Stock or some aftermarket coil springs may come unseated at full droop.
- APPLICATION NOTE #73: Aftermarket control arm required for clearance
- APPLICATION NOTE #97: Not compatible with AHC equipped models
