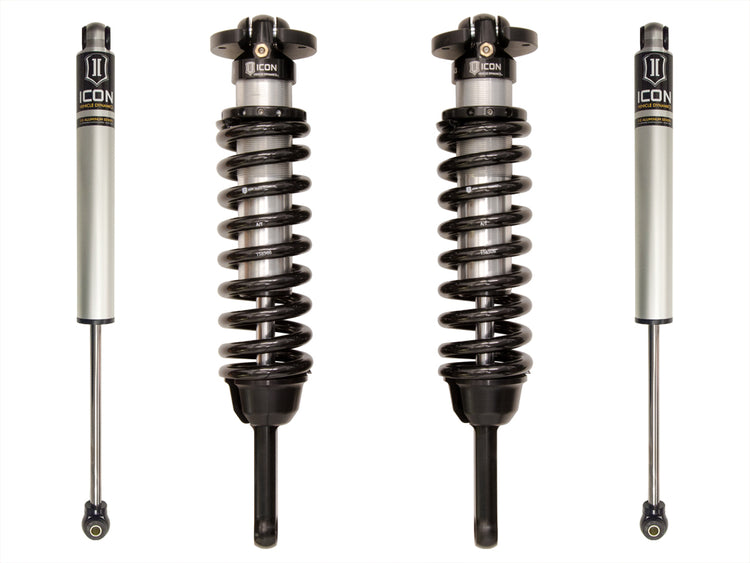

ICON 2012-15 Toyota Hilux, 0-3" Lift, Stage 1 Suspension System
- ICON Vehicle Dynamics
- SKU:K53141
$1,909.65$2,005.13
4% off
Low stock: 3 left
Recommended add-ons
ICON 2012-15 Toyota Hilux, 0-3" Lift, Stage 1 Suspension System
$1,909.65$2,005.13
4% off
- Get It Fast with Same-day Dispatch
- Free Shipping over $199
- All Reman Parts Ship for $299
1-2 day delivery for most. Expedited shipping options available at checkout.
Have questions? We’re here to help.
Call us at 1-800-347-1188 or chat with our tech support.
Product details

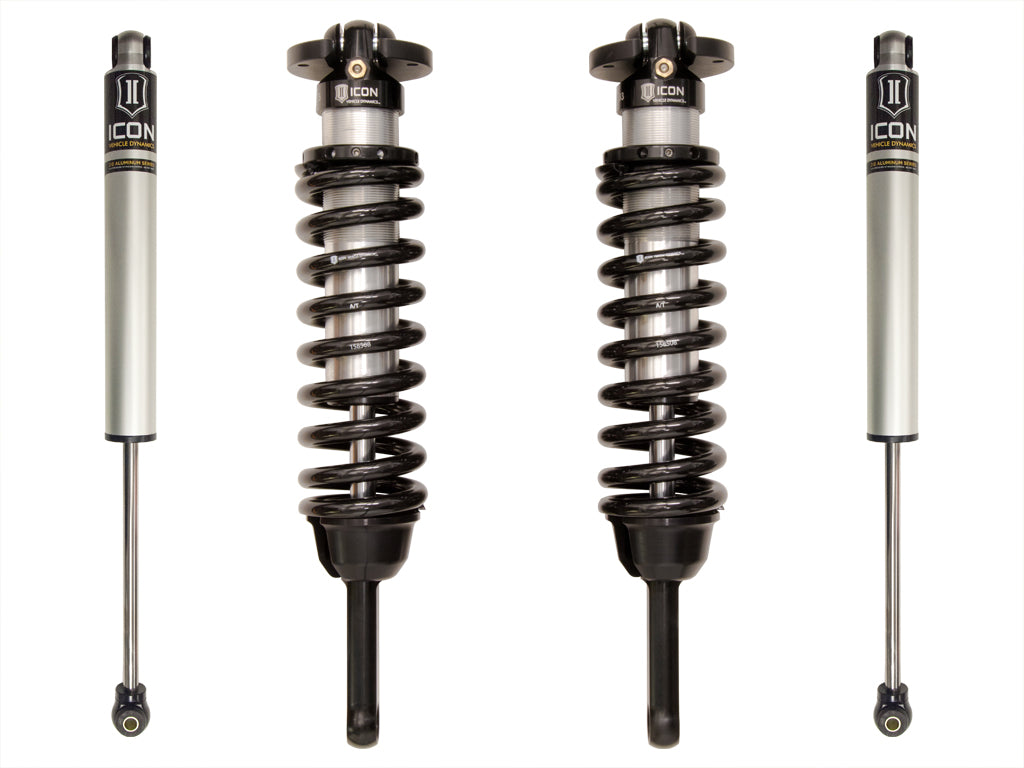

ICON Vehicle Dynamics’ Toyota Hilux suspension systems have been designed with maximum performance and the serious driver in mind. The varying uses of this vehicle worldwide were acknowledged and catered to in ICON’s research and development process. The Hilux Stage 1 system provides a baseline level of performance that will drastically improve on and off-road vehicle ride characteristics. ICON's Vehicle-specific tuned 2.5” coilover shocks feature a internal reservoir for exceptional cooling properties, and ICON-engineered Eibach coil springs for superior vehicle “feel” throughout the range of travel. These 2.5" coilovers are height adjustable from 0-3” allowing you to level the Hilux front to back, and install a larger tire when desired. ICON 2.0 Aluminum Series monotube rear shocks balance performance of the truck front to rear for a great all-around feel on any terrain. ICON has taken into account the stiffer chassis of the Hilux, realizing a much more robust overall shock tune was required for sufficient damping ability across varying terrains and differing vehicle payloads. This attention to detail is why ICON Vehicle Dynamics performance suspension systems are the ultimate solution for the Toyota Hilux.
- Increased wheel travel and ride quality over stock with no change in towing capacity
- Vehicle specific tuned front and rear shocks for superior shock damping and control
- Improved shock durability for the varying terrains and many uses this vehicle faces
- Adjustable coilovers from 0-3" of lift height
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated coilover shock body with 7/8 shaft
- FK rod end bearings for extended longevity and minimal deflection
- 2.0 aluminum body rear shock with 5/8" shaft
- 100% Bolt-on system - no drilling, cutting, or welding necessary for install
CA Residents:
Prop 65 Warning
WARNING
This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Specifications
| Brand | ICON Vehicle Dynamics |
| UPC | 840103417455 |
| Proxy Number | 53141 |
| Shipping Width | 13.00 in |
| Shipping Length | 26.00 in |
| Shipping Depth | 7.00 in |
| Shipping Weight | 53.0000 LB |
Technical Notes
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.00” Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.00” Backspace / 0mm Offset
- Recommended Aftermarket Tires: 33" x 11.25" (Larger tires may fit but fender trimming and modifications will be required.)
- APPLICATION NOTE #47: 700Lb/In Expedition Coil Available For Heavier Equipped Vehicles
- APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
- APPLICATION NOTE #82: Rear Springs Can Be Added For Additional Rear Lift Height Up To 2’” To Match The Front 3” Lift Height Adjustment
- Ships in multiple boxes
