ICON 2022-2025 Toyota Tundra, 2-3.5" Lift, Stage 12, 2.5 Suspension System, Tubular
- ICON Vehicle Dynamics
- SKU:K53202T
$6,703.76$7,038.96
4% off
In stock
Recommended add-ons
ICON 2022-2025 Toyota Tundra, 2-3.5" Lift, Stage 12, 2.5 Suspension System, Tubular
$6,703.76$7,038.96
4% off
- Get It Fast with Same-day Dispatch
- Free Shipping over $99
1-2 day delivery for most. Expedited shipping options available at checkout.
Have questions? We’re here to help.
Call us at 1-800-347-1188 or chat with our tech support.
Product details

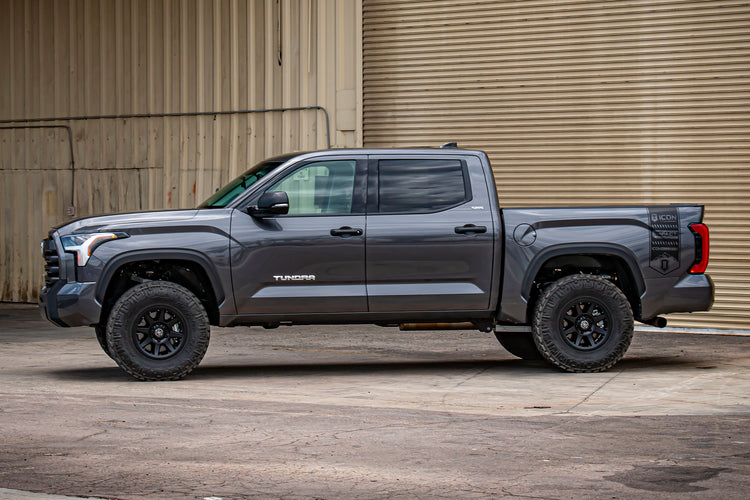

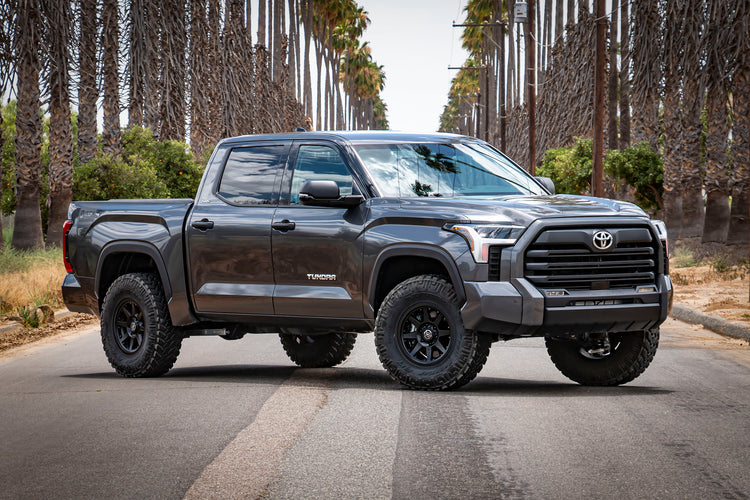

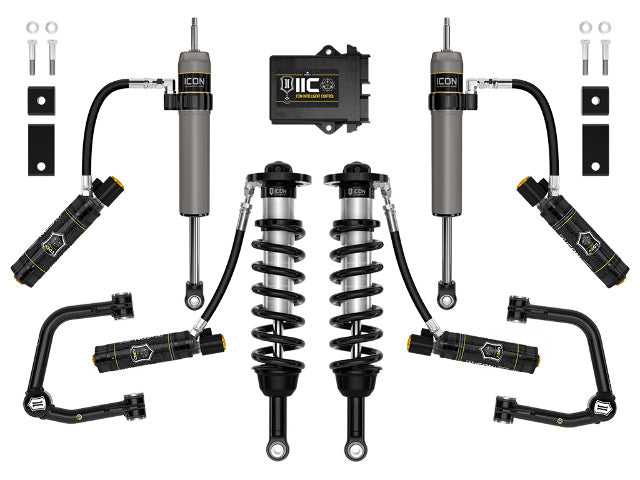

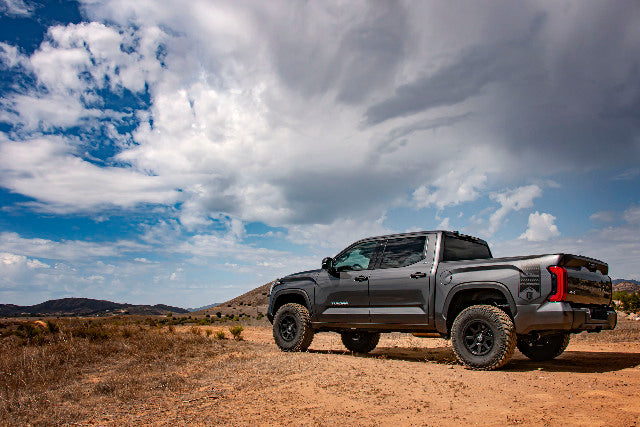

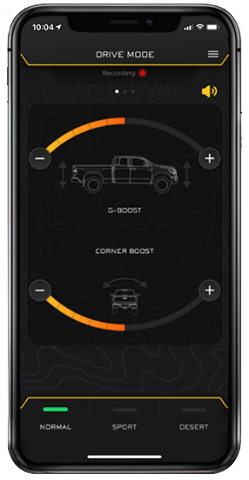

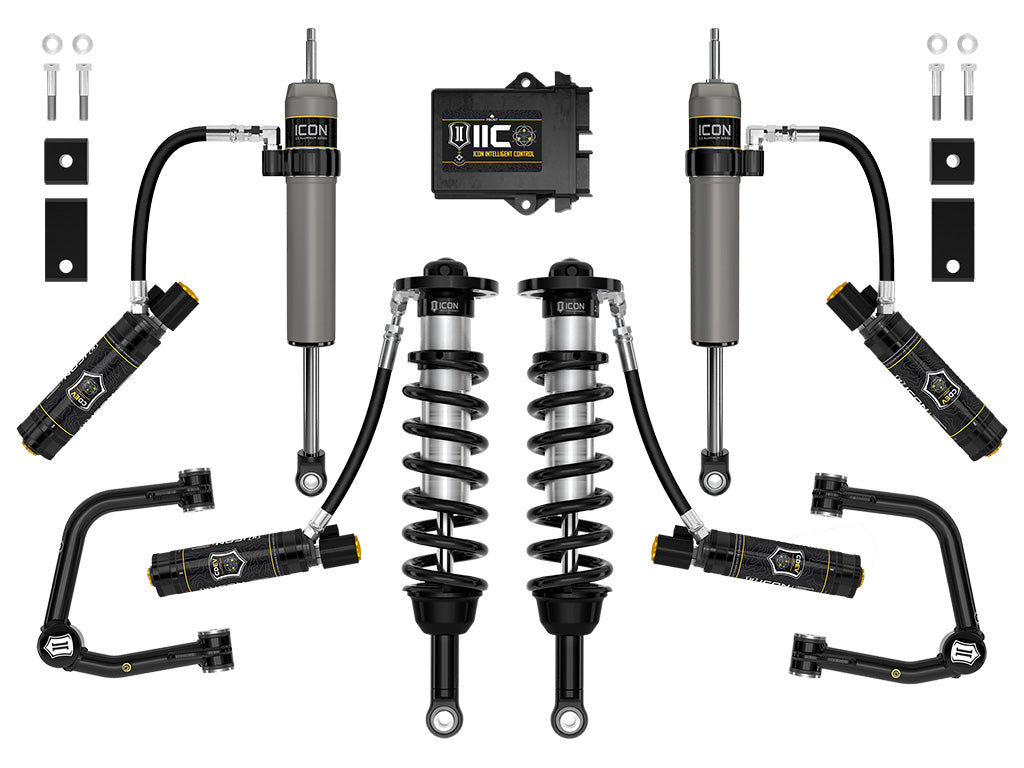

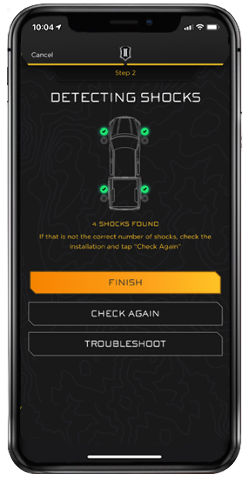

The ICON Vehicle Dynamics Stage 12 complete suspension system for the 2022-2025 Toyota Tundra Is the first stage to include CDEV equipped 2.5 Series coilovers and rear shocks. This system offers improved on- and off-road performance, with active electronic shock damping adjustment, as well as improved alignment specs and increased front-end lift height range for a proper stance and fitment of up to 35" tires. Focus on driving and let ICON Intelligent Control (IIC) read the terrain and make near-instant adjustments via the Compression Damping Electronic Valve (CDEV) at each individual shock. Control the system wirelessly through the IIC app on your phone and once configured the system functions without driver input.
- Vehicle specific design for 2022-2025 Toyota Tundra
- 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
- ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)

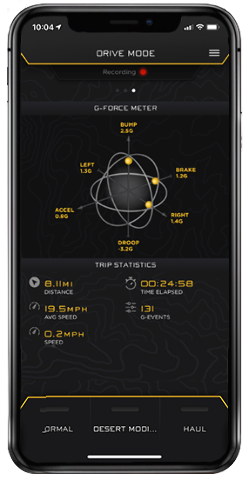

- ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
- Adjustable front ride heights from 2-3.5” of front lift over stock when used with included tubular UCAs
- Tubular UCAs for added strength, durability, and alignment correction for better drivability
CA Residents:
Prop 65 Warning
WARNING
This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Specifications
| Brand | ICON Vehicle Dynamics |
| UPC | 840103421261 |
| Proxy Number | 53202 |
| Shipping Width | 12.00 in |
| Shipping Length | 27.00 in |
| Shipping Depth | 8.00 in |
| Shipping Weight | 126.0000 LB |
Technical Notes
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75" Backspace / 25mm Offset
- Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required)
- APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
- APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift lange.
- APPLICATION NOTE #142: Not compatible with vehicles equipped with Load-Leveling Rear Height Control Air Suspension.
- APPLICATION NOTE #149: For 4WD models without TRD Off-Road package ICON recommends using ICON Diff Drop (Part# 55156) or using Toyota TRD axles (Part# 434200C020 Driver / 434100C020 Pass). Failure to do so could result in front axle damage. Not required for TRD Pro.
- APPLICATION NOTE #153: Not compatible with Adaptive Variable Suspension (AVS) equipped vehicles
- APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
- APPLICATION NOTE #171: If equipped with TRD aluminum skid plate part # 55164 is also required
- APPLICATION NOTE #198: An iOS operated device is required to run ICON Intelligent Control app
- TECH NOTE: Most Tundra sub-models equipped with i-Force gasoline engine will have front lift height range of 2-3.5" over stock
- TECH NOTE: Most Tundra sub-models equipped with i-Force MAX hybrid engine will have front lift height range of 2-3" over stock
- TECH NOTE: Tundra SR5 equipped with TRD Sport Suspension package will have lift height range of 3-4.5" over stock
- TECH NOTE: Tundra TRD Pro will have front lift height range of 0-1.75" over stock
- TECH NOTE: Included rear shocks are compatible with 0-1.5" of rear lift over stock on models equipped with rear coil springs without a TRD suspension package. Rear shocks are compatible with 0-1" of rear lift over stock on models equipped with rear coil springs with a TRD suspension package and TRD Pro.
