ICON 2005-2023 Toyota Tacoma, 0-2" Lift, Stage 2 EXP Suspension System
- ICON Vehicle Dynamics
- SKU:K53221
$1,752.91$1,840.56
4% off
Low stock: 2 left
Recommended add-ons
ICON 2005-2023 Toyota Tacoma, 0-2" Lift, Stage 2 EXP Suspension System
$1,752.91$1,840.56
4% off
- Get It Fast with Same-day Dispatch
- Free Shipping over $99
1-2 day delivery for most. Expedited shipping options available at checkout.
Have questions? We’re here to help.
Call us at 1-800-347-1188 or chat with our tech support.
Product details

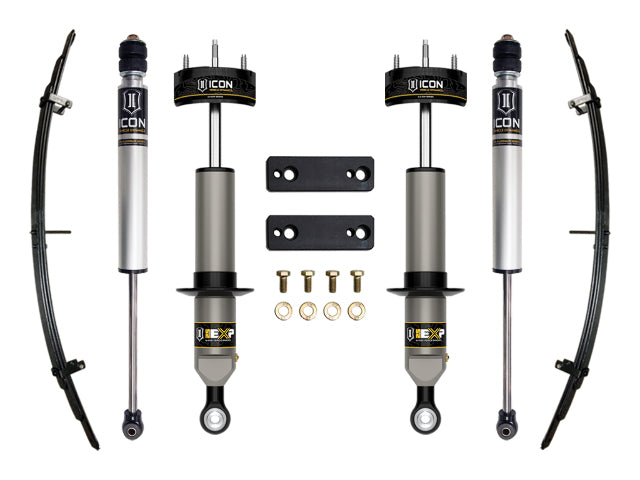

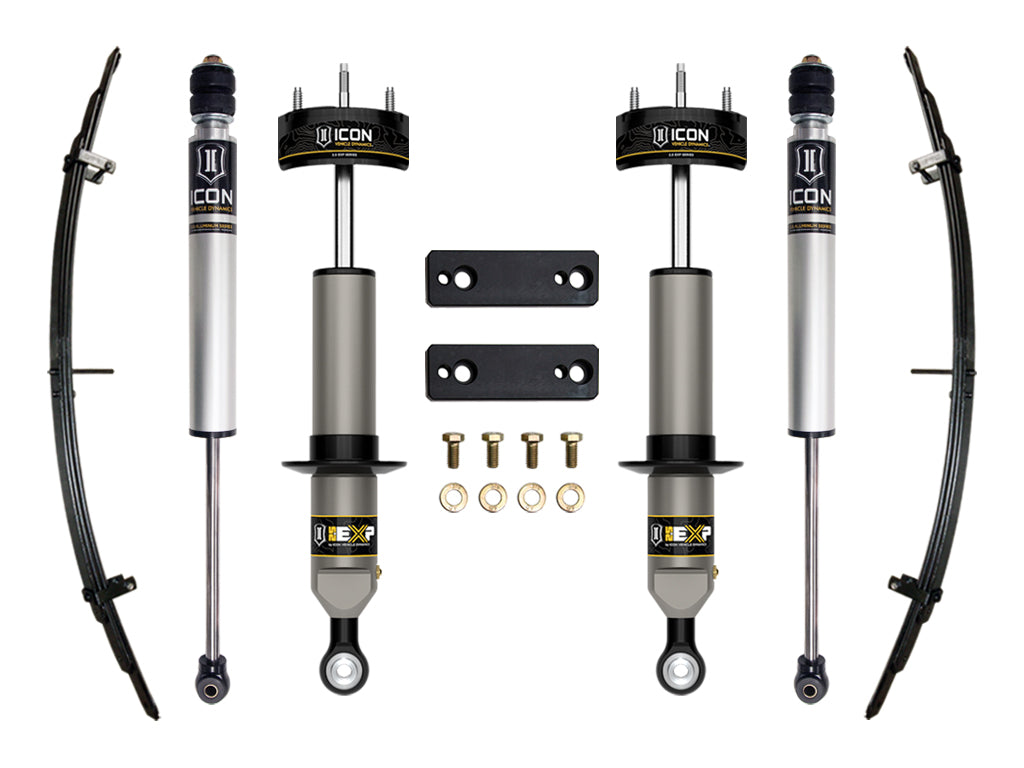

The ICON EXP suspension system for the Toyota Tacoma represents our entry level performance suspension system providing improved on- and off-road performance as well as front-end lift for a proper stance and fitment of up to 33" tires.
- Vehicle specific design for 2005-2023 Toyota Tacoma
- 2.5 EXP Series front shocks with internal reservoirs utilize factory coil and coil hardware
- Adjustable front ride heights from 0-2” of front lift over stock with the use of snap ring
- Included sway bar relocation brackets reduce ensure sway bar clearance from EXP coilovers
- Allows for full wheel travel without overstressing OE components
- Rear Add-a-Leaf softens spring rate for improved ride quality while providing 1.5” of rear lift
CA Residents:
Prop 65 Warning
WARNING
This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Specifications
| Brand | ICON Vehicle Dynamics |
| UPC | 840103421087 |
| Shipping Width | 6.00 in |
| Shipping Length | 32.00 in |
| Shipping Depth | 5.00 in |
| Shipping Weight | 69.0000 LB |
Technical Notes
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 4.75" Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 5.00" Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 20x9 with 5.00" Backspace / 0mm Offset
- Recommended Aftermarket Tires: 33" x 11.50" (Minor fender trimming may be required)
- APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
- APPLICATION NOTE #110: Trimming required for recommended tire size
- APPLICATION NOTE #144: Not compatible with TRD Pro
- TECH NOTE: Not compatible with 2005-2015 rear wheel drive Tacomas with 5 wheel lug studs
