ICON 2011-2016 Ford F250/F350, 7" Lift, Stage 5 Suspension System
- ICON Vehicle Dynamics
- SKU:K67304
$8,414.05
On backorder - will ship upon availability
Recommended add-ons
ICON 2011-2016 Ford F250/F350, 7" Lift, Stage 5 Suspension System
$8,414.05
- Get It Fast with Same-day Dispatch
- Free Shipping over $199
- All Reman Parts Ship for $299
1-2 day delivery for most. Expedited shipping options available at checkout.
Have questions? We’re here to help.
Call us at 1-800-347-1188 or chat with our tech support.
Product details

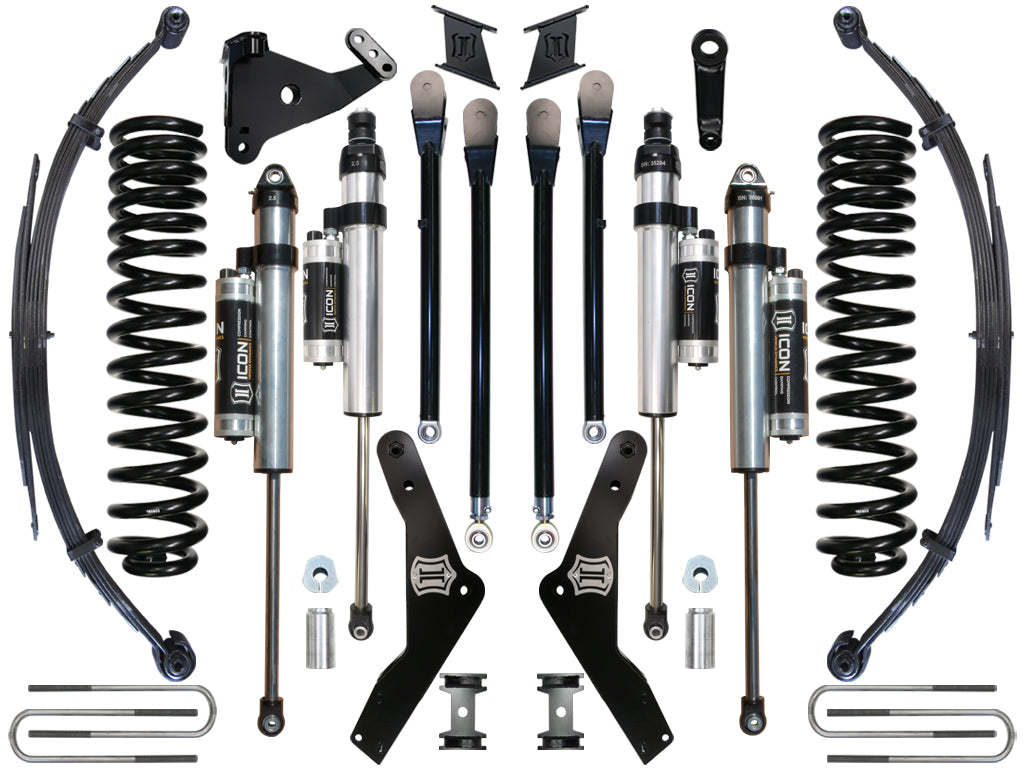

ICON Vehicle Dynamics is an industry leader when it comes to Ford Super Duty performance. Our engineers have spent countless hours under these trucks and behind the wheel developing some of the most refined suspension systems available. Increasing wheel travel and ride comfort is standard operating procedure at ICON, but our engineers aimed high to produce a suspension solution that also maintained the Super Duty’s towing capacity. ICON’s 7” Suspension System for the 2011-2016 Super Duty yields enough lift to clear 37” tires while providing excellent ride characteristics across a wide variety of terrain on and off-road. Each component of this suspension system has been specifically engineered to work in union with other ICON parts to extract maximum performance out of the vehicle. Our Stage 5 System is comprised of 7” lift dual rate coil springs, fabricated radius arm drop mounts with brushed stainless badges, track bar drop bracket, bump stop extensions, sway bar links, a forged pitman arm, brake line brackets, rear 5" lift progressive rate leaf springs w/ U-bolts, and 2.5 Aluminum Series piggyback reservoir front & rear shocks w/ CDCV. 2.5" reservoir shocks ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. The ICON CDC Valve upgrade is included in this stage for those desiring an easy way to tune the ride externally. ICON’s adjustable 4 link system is not only stronger than the factory radius arms, but will enhance performance and improve wheel alignment. These link arms eliminate bind commonly found in the factory radius arms, while increasing the suspension's range of motion.
- Increased wheel travel and ride quality over stock with no change in towing capacity
- Decreased body roll
- ICON engineered dual rate coil springs with match tuned 2.5 Series reservoir shocks w/ CDCV
- Front and rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
- Adjustable 4 link system
- Correctly positioned steering and track bar components
- Rear progressive design leaf pack for smooth compliant ride
- No drive shaft modifications needed
CA Residents:
Prop 65 Warning
WARNING
This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Specifications
| Brand | ICON Vehicle Dynamics |
| UPC | 840103419077 |
| Proxy Number | 67304 |
| Shipping Width | 48.00 in |
| Shipping Length | 48.00 in |
| Shipping Depth | 10.00 in |
| Shipping Weight | 565.0000 LB |
Technical Notes
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
- Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
- APPLICATION NOTE #6: Springs Are Rated For Diesel Engines Only
- APPLICATION NOTE #31: ‘08 - Current Superduty Models With Gas Engines May Need Exhaust Modified To Clear Front Driveshaft
- APPLICATION NOTE #40: Radius Arm / 4-Link Frame Brackets Will Require Minor Drilling Into Frame To Complete Install
- APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
- APPLICATION NOTE #57: Retains Factory Block For Truck To Sit Level With Front Of Truck
- Ships in multiple boxes
