ICON 2007-2016 GM 1500, 1-3" Lift, Stage 1 Suspension System
- ICON Vehicle Dynamics
- SKU:K73001
$2,222.59$2,333.72
4% off
On backorder - will ship upon availability
Recommended add-ons
ICON 2007-2016 GM 1500, 1-3" Lift, Stage 1 Suspension System
$2,222.59$2,333.72
4% off
- Get It Fast with Same-day Dispatch
- Free Shipping over $199
- All Reman Parts Ship for $299
1-2 day delivery for most. Expedited shipping options available at checkout.
Have questions? We’re here to help.
Call us at 1-800-347-1188 or chat with our tech support.
Product details

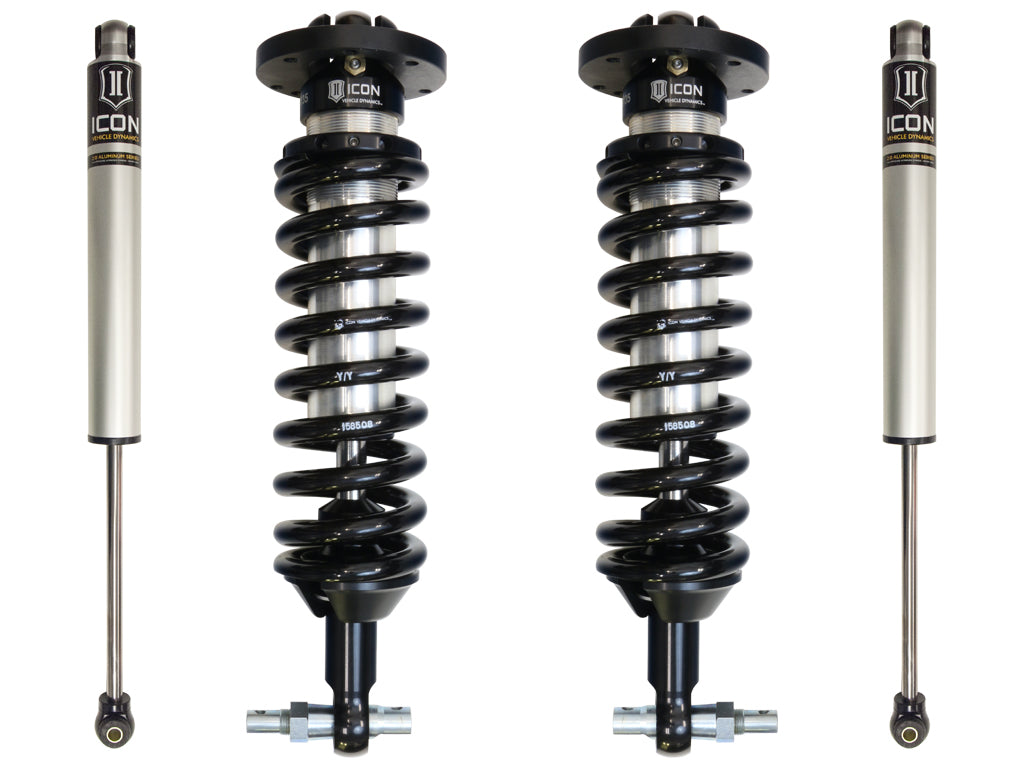

ICON Vehicle Dynamics 2007-2018 GM Silverado/Sierra 1500 suspension systems are designed to dramatically increase the on and off-road ride quality. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. With wheel travel and ride quality in mind, ICON engineers researched each component of the GM platform’s suspension and addressed any areas where performance could be extracted. The Stage 1 system includes vehicle-specific tuned 2.5 coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 1-3” allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.0 Aluminum Series monotube rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics GM Silverado/Sierra 1500 Stage 1 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
- Fits 2WD and 4WD models
- Increased wheel travel and ride quality over stock with no change in towing capacity
- Vehicle specific tuned front and rear shocks for superior shock damping and control
- Adjustable coilovers allow for f 1-3" of front lift height over stock
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated coilover shock body with 7/8" shaft
- High strength alloy CNC machined lower bar pin
- FK rod end bearings for extended longevity and minimal deflection
- 2.0 Aluminum Series rear IFP shocks with 5/8" shock shafts
CA Residents:
Prop 65 Warning
WARNING
This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Specifications
| Brand | ICON Vehicle Dynamics |
| UPC | 840103419091 |
| Proxy Number | 73001 |
| Shipping Width | 13.00 in |
| Shipping Length | 26.00 in |
| Shipping Depth | 7.00 in |
| Shipping Weight | 55.0000 LB |
Technical Notes
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.00” Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.00” Backspace / 0mm Offset
- Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
- APPLICATION NOTE #48: Slight Modifications To Factory Shock Mounts May Be Required
- APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
- APPLICATION NOTE #83: Trimming Of The Upper Control Arm Stop Required Or Down Travel Will Be Limited By Upper Arm Stop
- TECH NOTE: Not compatible with models equipped Magnetic Ride Control
- TECH NOTE: Included rear shocks are compatible with 0-2" of rear lift on most models
- TECH NOTE: Not recommended for Hybrid models
- Ships in multiple boxes
